Description

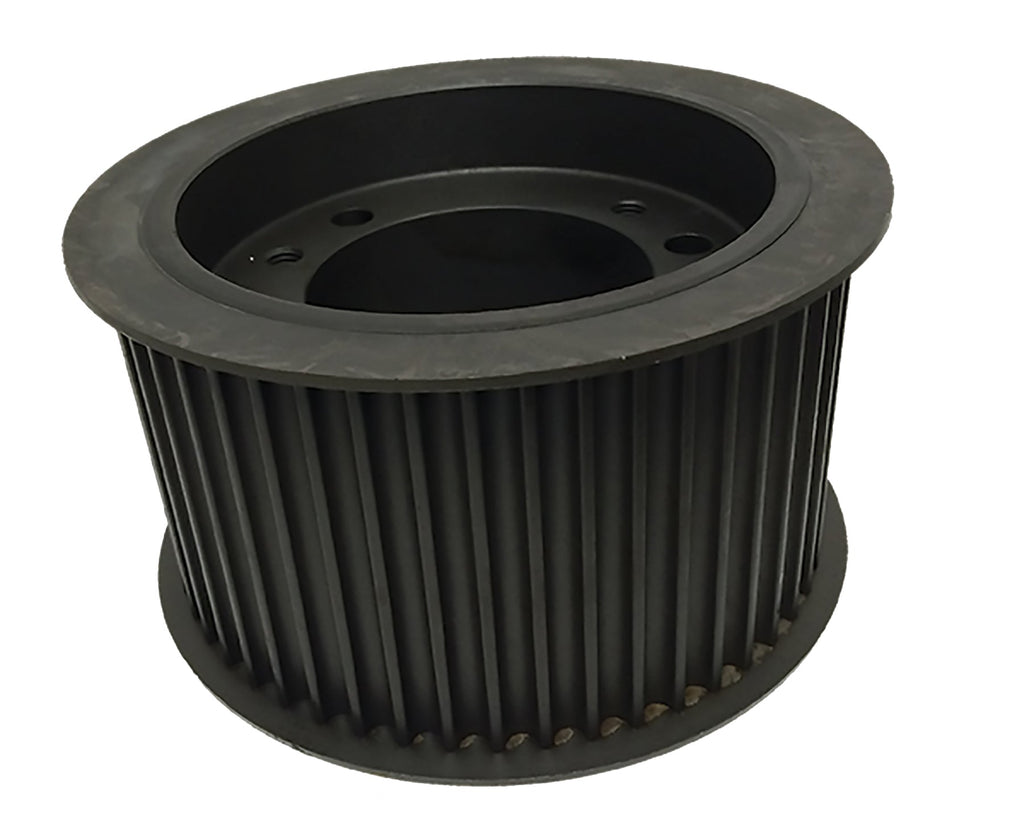

QD68-14M-170 Powerhouse® HTD Timing Pulley, 68 Teeth, 14M Pitch
The QD68-14M-170 is a 68-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | QD68-14M-170 |
| Teeth | 68 |
| Pitch | 14 mm HTD® compatible |
| For Belt Width | 17mm |
| Pitch Diameter | 11.9304 in |
| Outside Diameter | 11.8204 in |
| Flange Diameter | 12.5 in |
| Bore | Accepts J bushing (not included) |
| Face Width | 7.375 in |
| Overall Length | 7.375 in |
| Construction | Quick Disconnect Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 96 lb |
| Country of Origin | China |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The QD68-14M-170 runs 14 mm HTD® compatible belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The QD68-14M-170 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P68-14M-170-J |
| Martin | P6814M170-J |
| TB Woods® | P6814M170 |
| Regal Rexnord (Browning®) | B6814M170J |
| Jason Industrial | P68-14M-170-J |
| Ametric | 14M68QD170.J |
| Powerdrive | QD68-14M-170 |
| Continental (ContiTech) | P68-14M-170-J |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the QD68-14M-170 pulley?
14 mm HTD® compatible timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the QD68-14M-170 replace the Dodge P68-14M-170-J?
Yes. Published interchange data crosses the QD68-14M-170 directly to the Dodge P68-14M-170-J, as well as Martin P6814M170-J, TB Woods P6814M170, Regal Rexnord B6814M170J. Verify dimensions and bore before ordering.
Does the QD68-14M-170 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
