QD68-14M-85 Powerhouse® HTD Timing Pulley, 68 Teeth, 14M Pitch


Price:
$ 461.76

Description

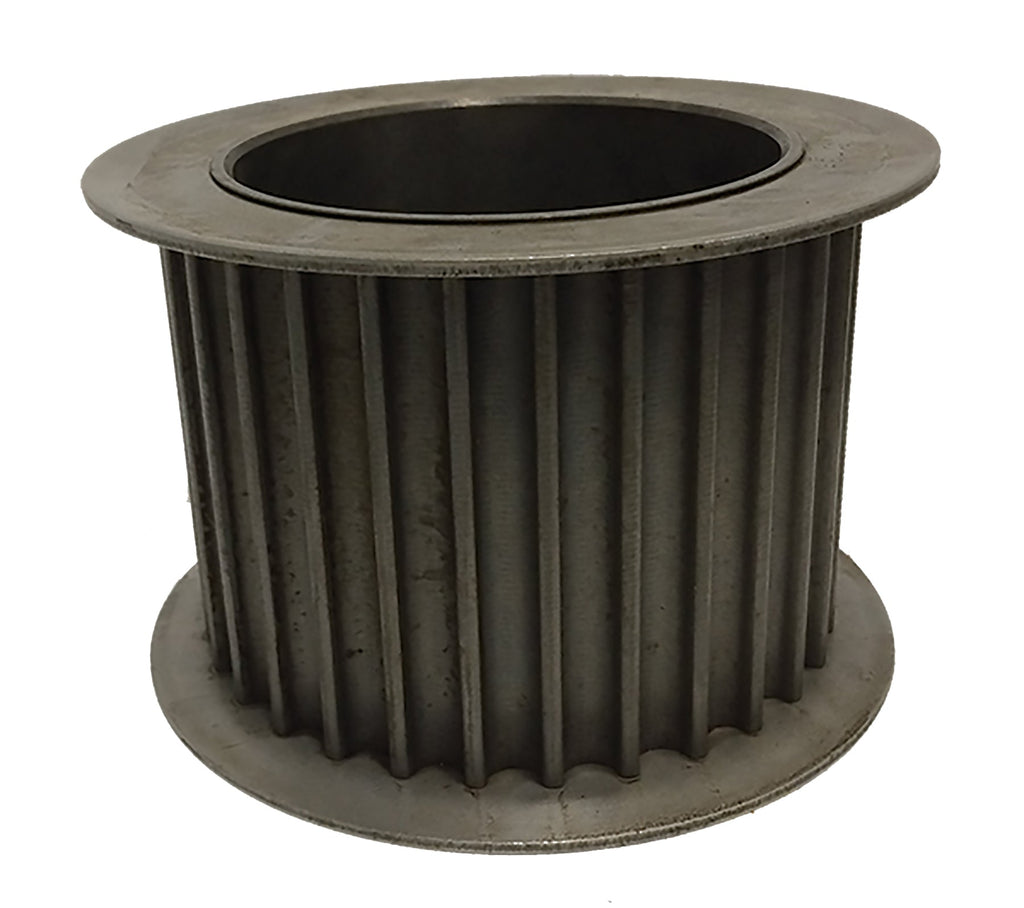

QD68-14M-85 Powerhouse® HTD Timing Pulley, 68 Teeth, 14M Pitch

The QD68-14M-85 is a 68-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D2F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD68-14M-85
Teeth 68
Pitch 14 mm HTD® compatible
For Belt Width 85mm
Pitch Diameter 11.9304 in
Outside Diameter 11.8204 in
Flange Diameter 12.5 in
Bore Accepts F bushing (not included)
Face Width 4 in
Overall Length 4 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 51 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD68-14M-85 runs 14 mm HTD® compatible belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD68-14M-85 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P68-14M-85-F
Martin P6814M85-F
TB Woods® P6814M85
Regal Rexnord (Browning®) B6814M85F
Jason Industrial P68-14M-85-F
Masterdrive P68-14M-85-F
Ametric 14M68QD85.F
Powerdrive QD68-14M-85
Continental (ContiTech) P68-14M-85-F

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD68-14M-85 pulley?

14 mm HTD® compatible timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD68-14M-85 replace the Dodge P68-14M-85-F?

Yes. Published interchange data crosses the QD68-14M-85 directly to the Dodge P68-14M-85-F, as well as Martin P6814M85-F, TB Woods P6814M85, Regal Rexnord B6814M85F. Verify dimensions and bore before ordering.

Does the QD68-14M-85 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD68-14M-85?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
