QD68-5M-15 Powerhouse® HTD Timing Pulley, 68 Teeth, 5M Pitch


Price:
$ 68.88

Description

QD68-5M-15 Powerhouse® HTD Timing Pulley, 68 Teeth, 5M Pitch

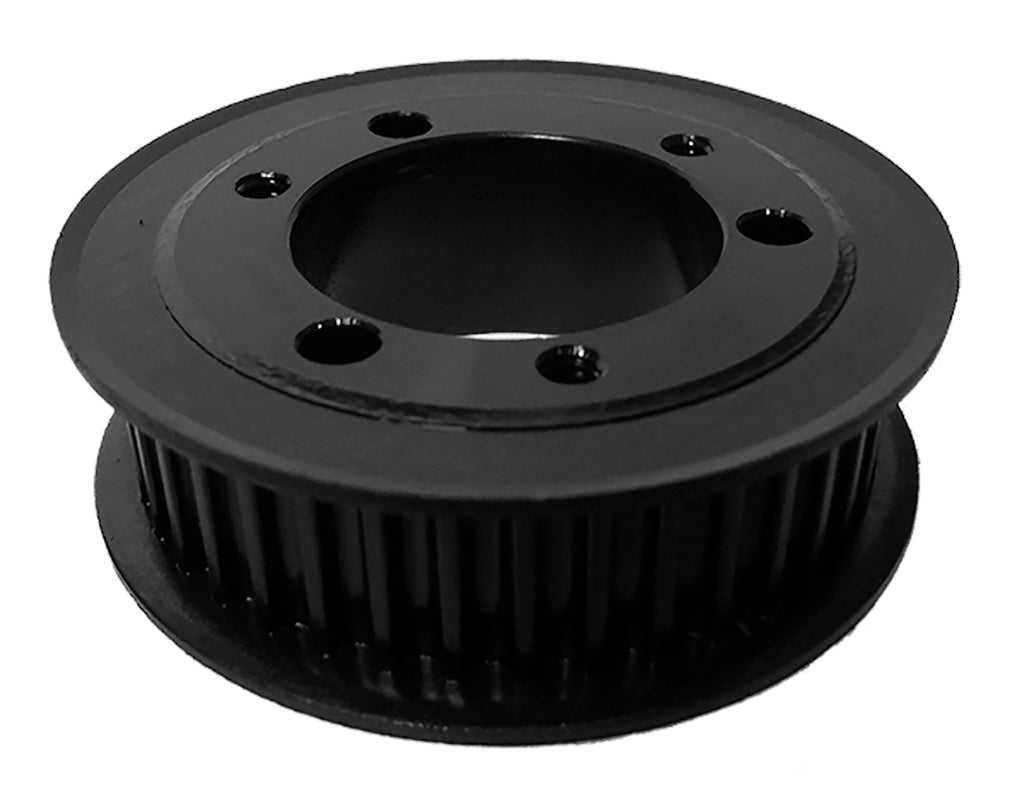

The QD68-5M-15 is a 68-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type C1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD68-5M-15
Teeth 68
Pitch 5 mm HTD® compatible
For Belt Width 15mm
Pitch Diameter 4.2608 in
Outside Diameter 4.2158 in
Flange Diameter 4.52 in
Bore Accepts SDS bushing (not included)
Face Width 0.84 in
Overall Length 0.84 in
Hub Diameter 0.442 in
Construction Quick Disconnect Hub
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2.099 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD68-5M-15 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD68-5M-15 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P68-5M-15-SDS
Martin P685M15-SDS
TB Woods® P685M15
Jason Industrial P685M15SDS
Masterdrive P68-5M-15-SDS
Neuman P68-5M-15-SDS
Ametric 5M68QD15.SH
Grainger 809RC1
Powerdrive QD68-5M-15
Continental (ContiTech) P68-5M-15-SDS

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD68-5M-15 pulley?

5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD68-5M-15 replace the Dodge P68-5M-15-SDS?

Yes. Published interchange data crosses the QD68-5M-15 directly to the Dodge P68-5M-15-SDS, as well as Martin P685M15-SDS, TB Woods P685M15, Jason Industrial P685M15SDS. Verify dimensions and bore before ordering.

Does the QD68-5M-15 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD68-5M-15?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
