QD90-14M-170 Powerhouse® HTD Timing Pulley, 9 Teeth, 14M Pitch


Price:
$ 1,180.04

Description

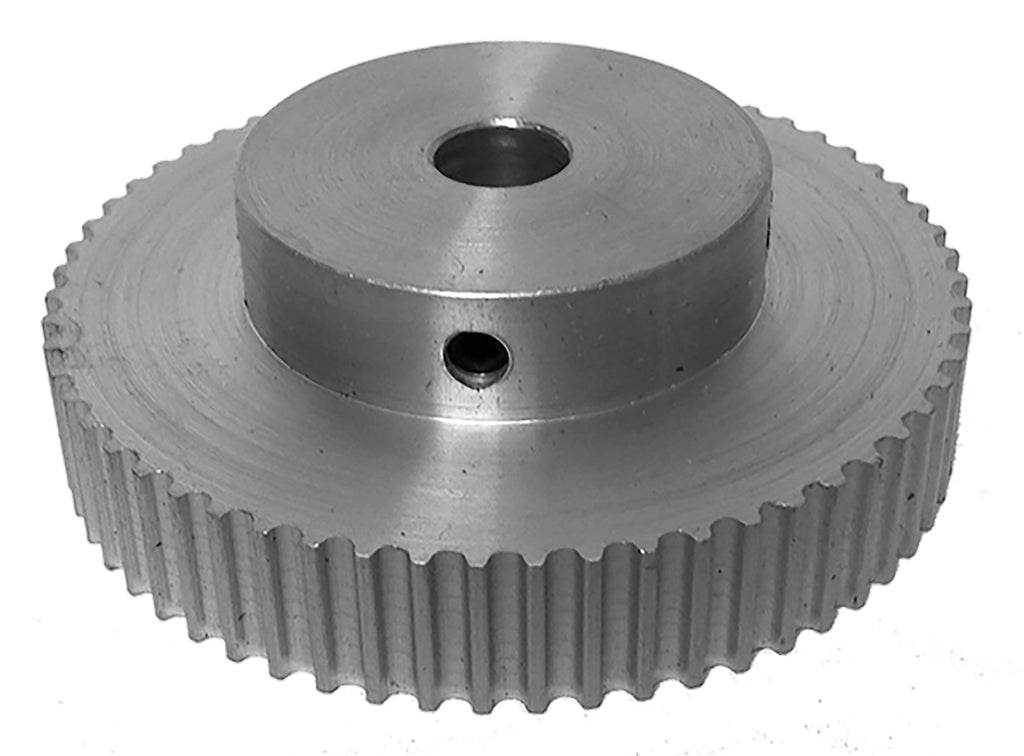

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

QD90-14M-170 Powerhouse® HTD Timing Pulley, 9 Teeth, 14M Pitch

The QD90-14M-170 is a 9-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 17mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A2 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD90-14M-170
Teeth 9
Pitch 14 mm HTD® compatible
For Belt Width 17mm
Pitch Diameter 15.7902 in
Outside Diameter 15.6802 in
Bore Accepts J bushing (not included)
Face Width 7.375 in
Overall Length 7.375 in
Construction Quick Disconnect Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 126 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD90-14M-170 runs 14 mm HTD® compatible belts in 17mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD90-14M-170 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P90-14M-170-J
Martin P9014M170-J
TB Woods® P9014M170
Regal Rexnord (Browning®) B9014M170J
Jason Industrial P90-14M-170-J
Ametric 14M90QD170.J
Powerdrive QD90-14M-170
Continental (ContiTech) P90-14M-170-J

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD90-14M-170 pulley?

14 mm HTD® compatible timing belts in 17mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD90-14M-170 replace the Dodge P90-14M-170-J?

Yes. Published interchange data crosses the QD90-14M-170 directly to the Dodge P90-14M-170-J, as well as Martin P9014M170-J, TB Woods P9014M170, Regal Rexnord B9014M170J. Verify dimensions and bore before ordering.

Does the QD90-14M-170 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD90-14M-170?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
