R1x2-3/8 Split Taper Bushing, 2-3/8 in Bore, Steel


Price:
$ 101.72

Description

R1x2-3/8 Split Taper Bushing, 2-3/8 in Bore, Steel

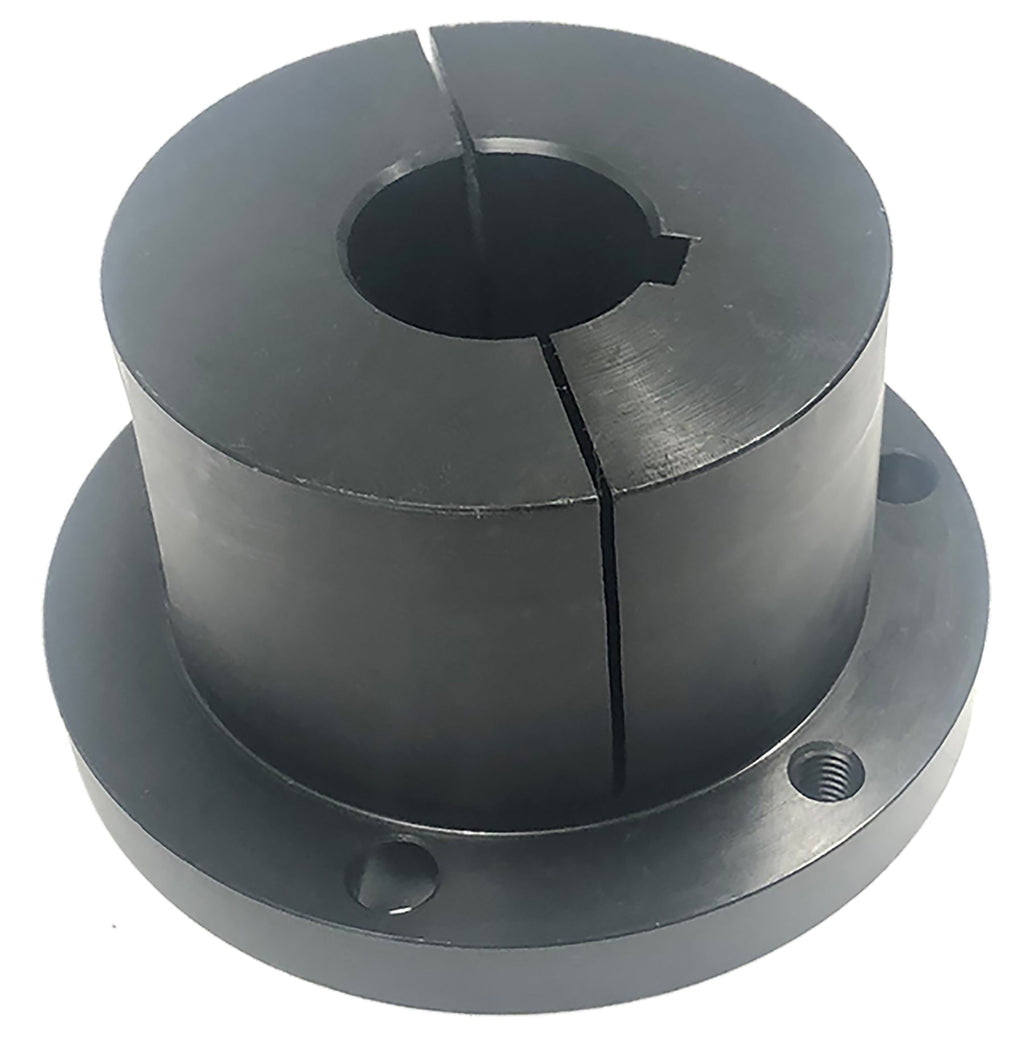

The R1x2-3/8 is a R1 series split taper bushing with a 2-3/8 in bore, machined from solid steel with a black oxide finish. It mounts any R1-bushed component, including sheaves, sprockets, and timing pulleys, to a 2-3/8 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number R1x2-3/8
Bushing System Split Taper
Series R1
Bore 2-3/8 in
Torque Capacity 348 in-lb
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 7.5 lb
Country of Origin China
Cap Screws 3 - (3/8 X 1-3/4)

Applications

  • Mounting R1-bushed V-belt sheaves, sprockets, and timing pulleys to 2-3/8 in shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The R1x2-3/8 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® R1 X 2-3/8
Martin R1 2 3/8
US Tsubaki R1-2F
Regal Rexnord (Browning®) R1 2 3/8
Masterdrive R1-2.3/8
Optibelt R1-2 3/8
Jason Industrial R1-2-3/8
Maska R1X2-3/8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the R1x2-3/8 bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a R1 series split taper bushing, and mounts that component to a 2-3/8 in shaft. The R1 size is standardized across manufacturers, so the component brand does not matter.

Does the R1x2-3/8 replace the Dodge R1 X 2-3/8 bushing?

Yes. The R1 series dimensions are an industry standard, and published interchange data crosses the R1x2-3/8 directly to the Dodge R1 X 2-3/8, as well as Martin R1 2 3/8, US Tsubaki R1-2F, Regal Rexnord (Browning) R1 2 3/8. Verify bore size before ordering.

How does a split taper bushing install?

Split taper bushings are split through both the barrel and the taper, with a keyed barrel. Slide the bushing onto the shaft, seat the component, and tighten the cap screws. The double split gives high clamping force on the shaft without scoring it. Reverse the screws into the jacking holes to remove.

Does the R1x2-3/8 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on R1x2-3/8?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
