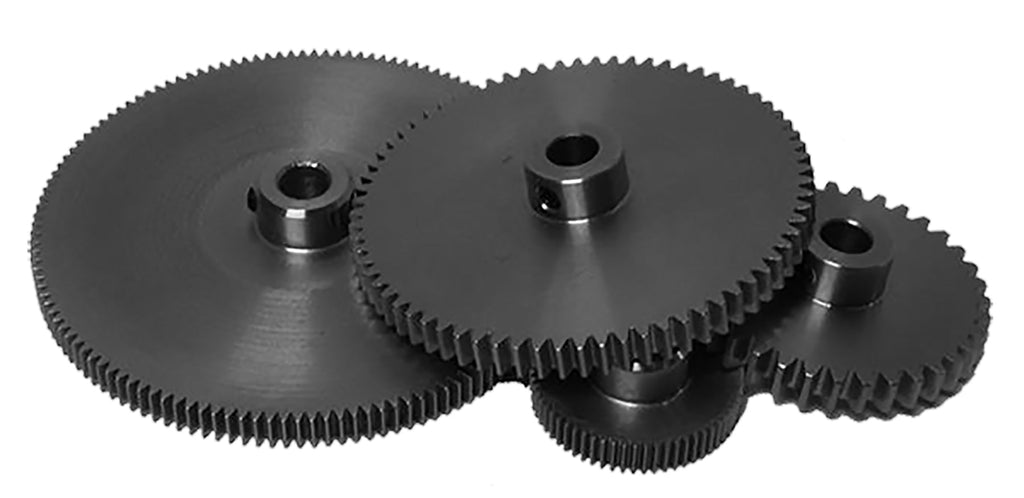

SS3224 Gear, 24 Teeth, 32 DP, 2 Degree PA, Stainless Steel


Price:
$ 26.25

Description

SS3224 Gear, 24 Teeth, 32 DP, 2 Degree PA, Stainless Steel

The SS3224 is a 24-tooth, 32 diametral pitch gear with a 2 degree pressure angle and a 1/4 in minimum plain bore, stainless steel.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number SS3224
Teeth 24
Diametral Pitch 32
Pressure Angle 2 degrees
Pitch Diameter 0.75 in
Outside Diameter 0.813 in
Bore 1/4 in minimum plain bore
Face Width 0.188 in
Hub Diameter 0.5 in
Overall Length 0.437 in
Set Screws 1 x 6-32
Material Stainless Steel (no sintered or powdered metal)
Weight 0.0319 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation and meter drive trains
  • Packaging and labeling machinery
  • Light load drives where quiet, lube free operation matters

Mating Gears

Gears mesh when diametral pitch and pressure angle match. The SS3224 runs with any 32 DP, 2 degree pressure angle gear, regardless of tooth count or manufacturer.

Cross Reference

The SS3224 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
McMaster-Carr 6832K53
Powerdrive SS3224

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What gears mesh with the SS3224?

Any gear with a 32 diametral pitch and 2 degree pressure angle, in any tooth count, from any manufacturer.

Does the SS3224 replace the McMaster-Carr 6832K53?

Yes. Published interchange data crosses the SS3224 directly to the McMaster-Carr 6832K53, as well as Powerdrive SS3224. Verify dimensions and bore before ordering.

Does the SS3224 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on SS3224?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
