TL14H100-1108 Timing Pulley, 14 Teeth, H Pitch


Price:
$ 37.58

Description

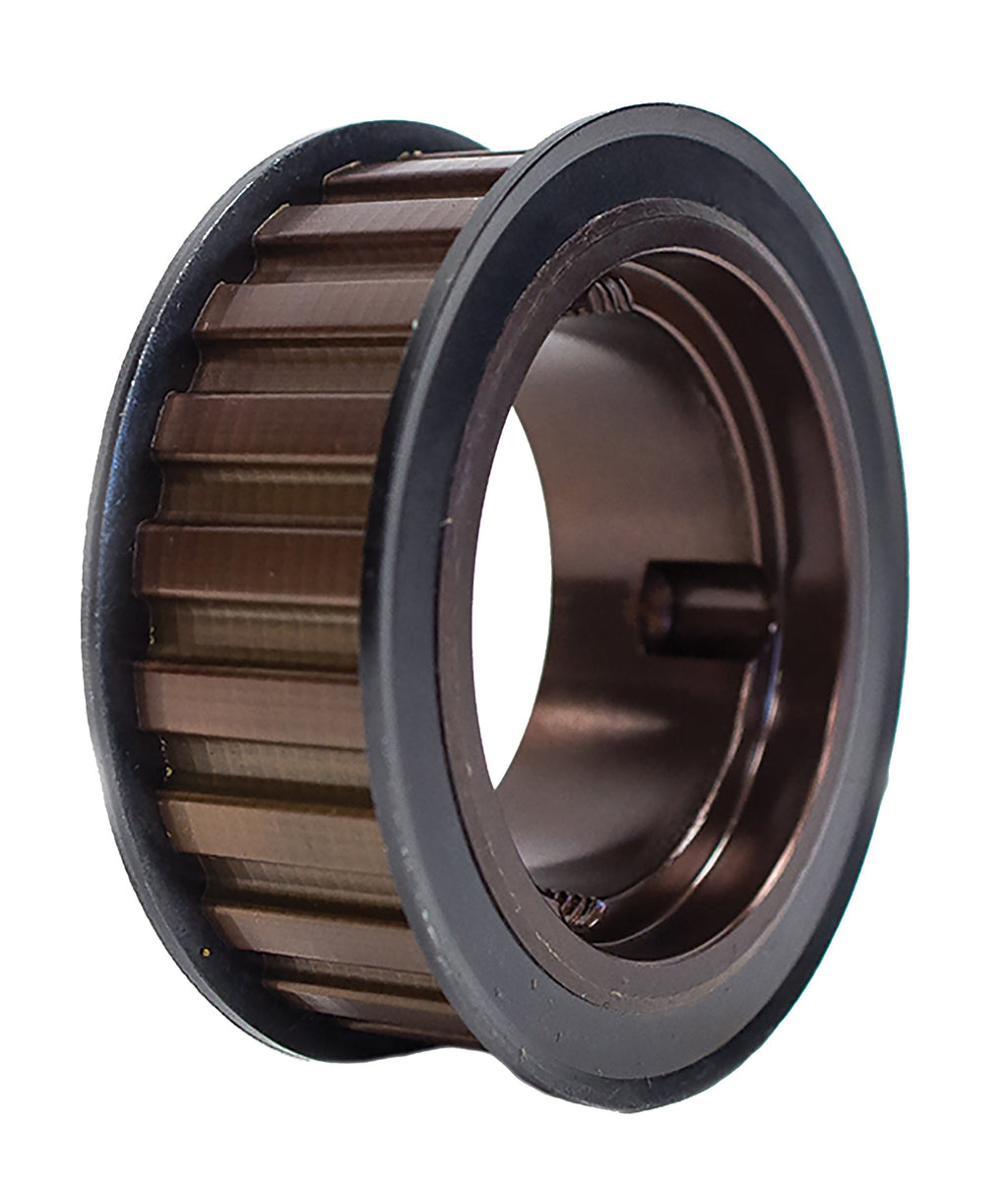

TL14H100-1108 Timing Pulley, 14 Teeth, H Pitch

The TL14H100-1108 is a 14-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL14H100-1108
Teeth 14
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 2.2282 in
Outside Diameter 2.1742 in
Flange Diameter 2.461 in
Bore Accepts 1108 bushing (not included)
Face Width 1.312 in
Overall Length 1.312 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.723 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL14H100-1108 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL14H100-1108 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL14H100-1108
Gates® TL14H100
Mitsuboshi TL14H100-1108
Jason Industrial TL14H100
Ametric 14 H 100 TL.1108
Powerdrive TL14H100-1108

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL14H100-1108 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL14H100-1108 replace the Dodge TL14H100-1108?

Yes. Published interchange data crosses the TL14H100-1108 directly to the Dodge TL14H100-1108, as well as Gates TL14H100, Mitsuboshi TL14H100-1108, Jason Industrial TL14H100. Verify dimensions and bore before ordering.

Does the TL14H100-1108 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL14H100-1108?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
