Description

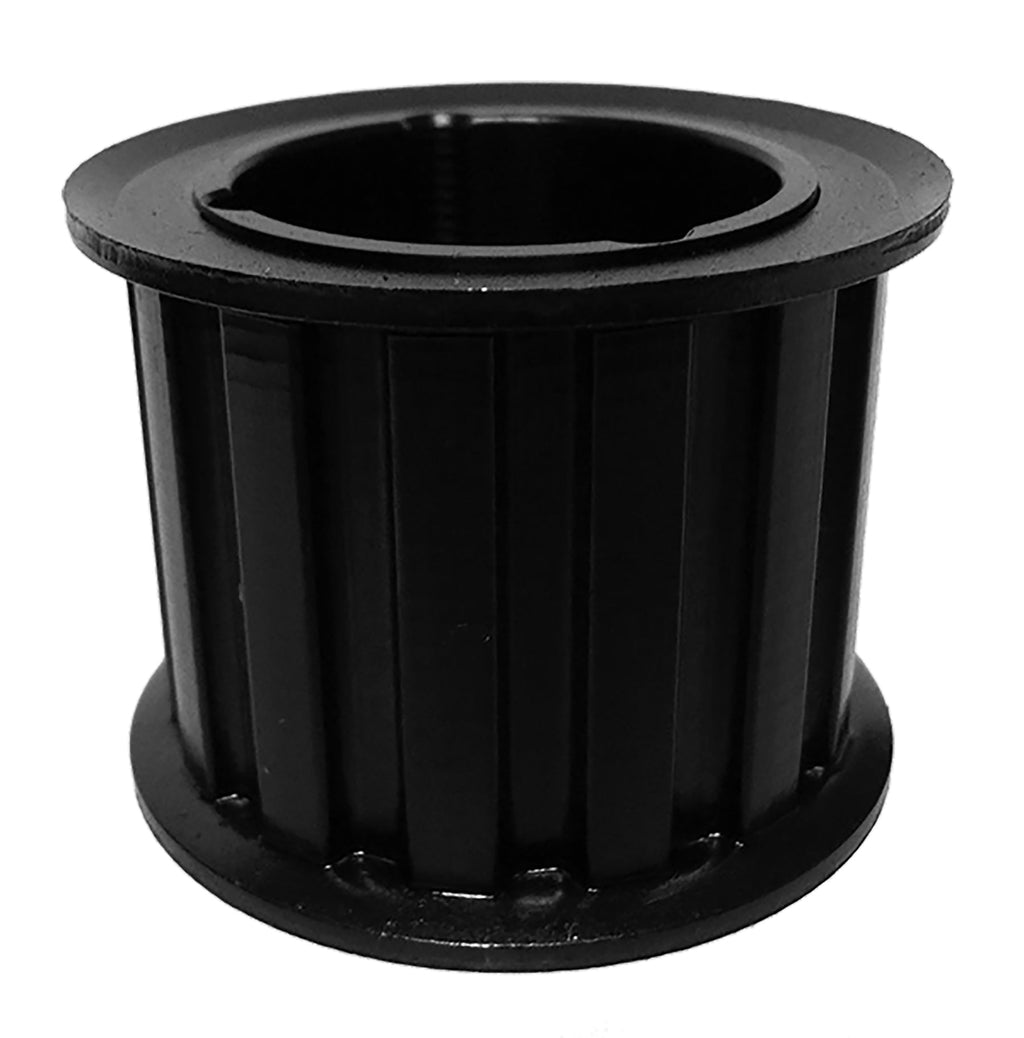

TL14H150-1008 Timing Pulley, 14 Teeth, H Pitch
The TL14H150-1008 is a 14-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | TL14H150-1008 |
| Teeth | 14 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 1.5 in |
| Pitch Diameter | 2.2282 in |
| Outside Diameter | 2.1742 in |
| Flange Diameter | 2.461 in |
| Bore | Accepts 1008 bushing (not included) |
| Face Width | 1.812 in |
| Overall Length | 1.812 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.008 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The TL14H150-1008 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The TL14H150-1008 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | TB14H150 |
| TB Woods® | TL14H150 |
| Mitsuboshi | TL14H150-1008 |
| Jason Industrial | TL14H150 |
| Masterdrive | P14H150-1008 |
| Powerdrive | TL14H150-1008 |
| Continental (ContiTech) | TL14H150 1008 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the TL14H150-1008 pulley?
H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the TL14H150-1008 replace the Martin TB14H150?
Yes. Published interchange data crosses the TL14H150-1008 directly to the Martin TB14H150, as well as TB Woods TL14H150, Mitsuboshi TL14H150-1008, Jason Industrial TL14H150. Verify dimensions and bore before ordering.
Does the TL14H150-1008 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
