TL16H100-1008 Timing Pulley, 16 Teeth, H Pitch

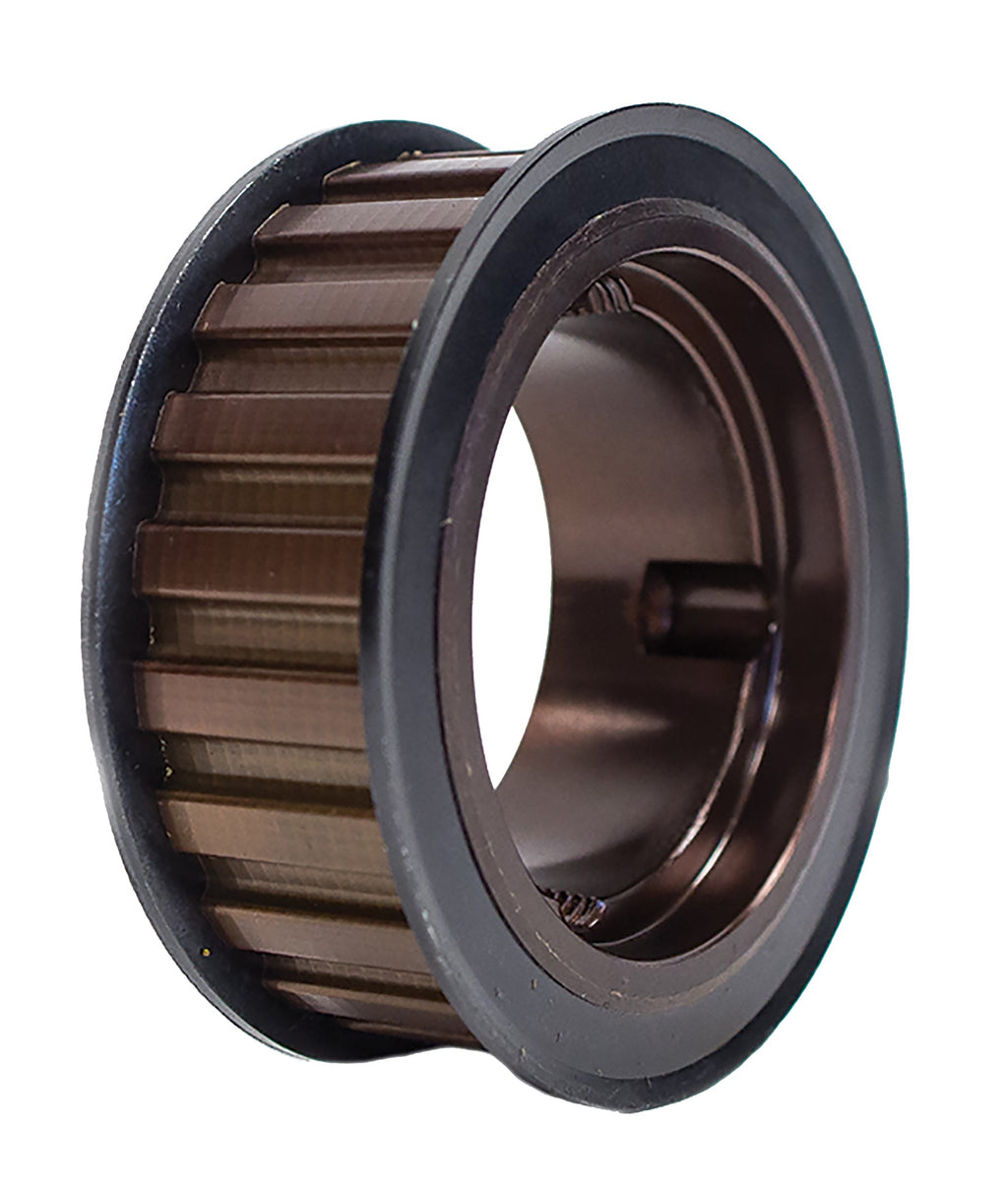

The TL16H100-1008 is a 16-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | TL16H100-1008 |
| Teeth | 16 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 1 in |
| Pitch Diameter | 2.5465 in |
| Outside Diameter | 2.4925 in |
| Flange Diameter | 2.78 in |
| Bore | Accepts 1008 bushing (not included) |
| Face Width | 1.312 in |
| Overall Length | 1.312 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.276 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The TL16H100-1008 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The TL16H100-1008 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | TB16H100 |
| TB Woods® | TL16H100 |
| Mitsuboshi | TL16H100-1008 |
| Jason Industrial | TL16H100 |
| Powerdrive | TL16H100-1008 |
| Continental (ContiTech) | TL16H100 1008 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the TL16H100-1008 pulley?
H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the TL16H100-1008 replace the Martin TB16H100?
Yes. Published interchange data crosses the TL16H100-1008 directly to the Martin TB16H100, as well as TB Woods TL16H100, Mitsuboshi TL16H100-1008, Jason Industrial TL16H100. Verify dimensions and bore before ordering.
Does the TL16H100-1008 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
