TL16H200 Timing Pulley, 16 Teeth, H Pitch


Price:
$ 65.69

Description

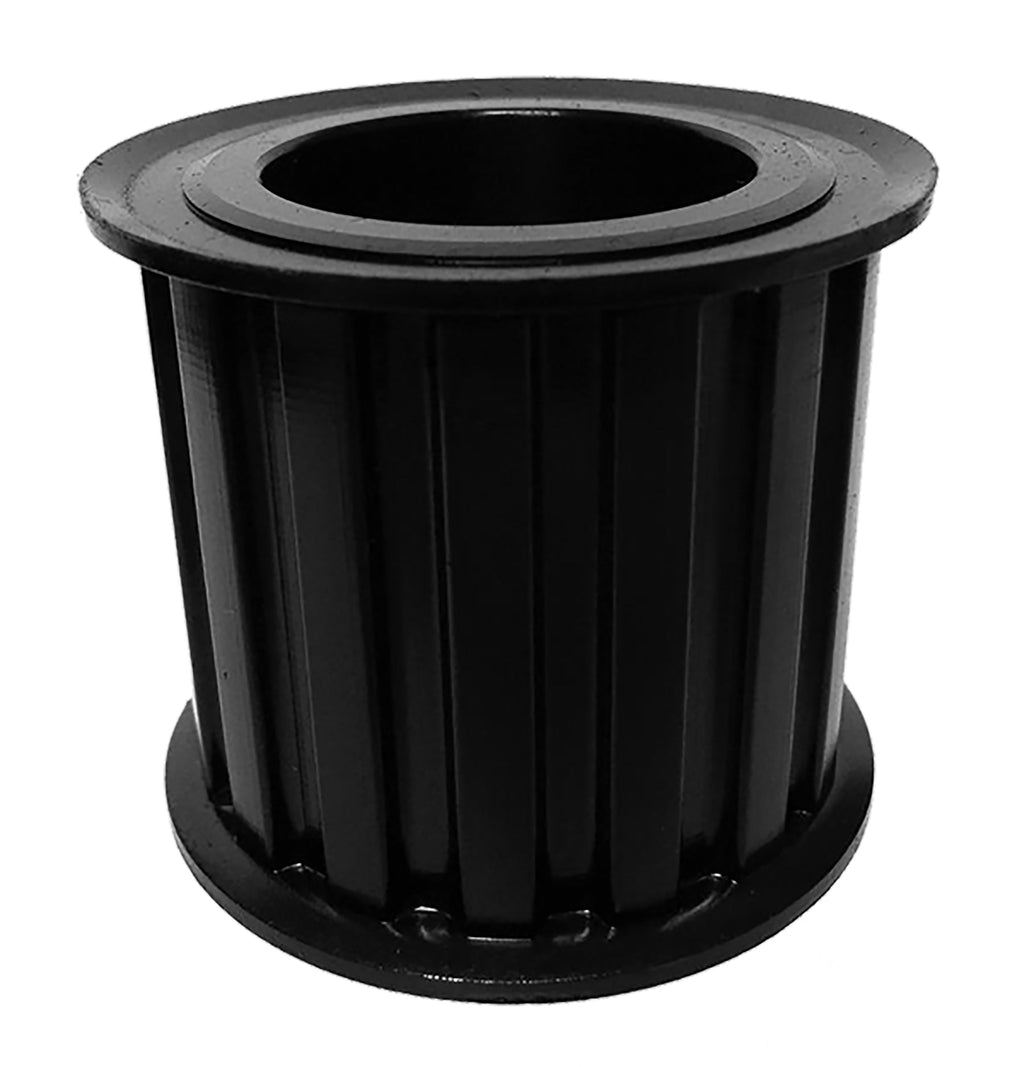

TL16H200 Timing Pulley, 16 Teeth, H Pitch

The TL16H200 is a 16-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL16H200
Teeth 16
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 2.5465 in
Outside Diameter 2.4925 in
Flange Diameter 2.78 in
Bore Accepts 1008 bushing (not included)
Face Width 2.344 in
Overall Length 2.344 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.918 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL16H200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL16H200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin TB16H200
Gates® TL16H200
TB Woods® TL16H200
Mitsuboshi TL16H200-1008
Masterdrive P16H200-1108
Powerdrive TL16H200
Continental (ContiTech) TL16H200 1008

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL16H200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL16H200 replace the Martin TB16H200?

Yes. Published interchange data crosses the TL16H200 directly to the Martin TB16H200, as well as Gates TL16H200, TB Woods TL16H200, Mitsuboshi TL16H200-1008. Verify dimensions and bore before ordering.

Does the TL16H200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL16H200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
