TL16H300 Timing Pulley, 16 Teeth, H Pitch


Price:
$ 101.90

Description

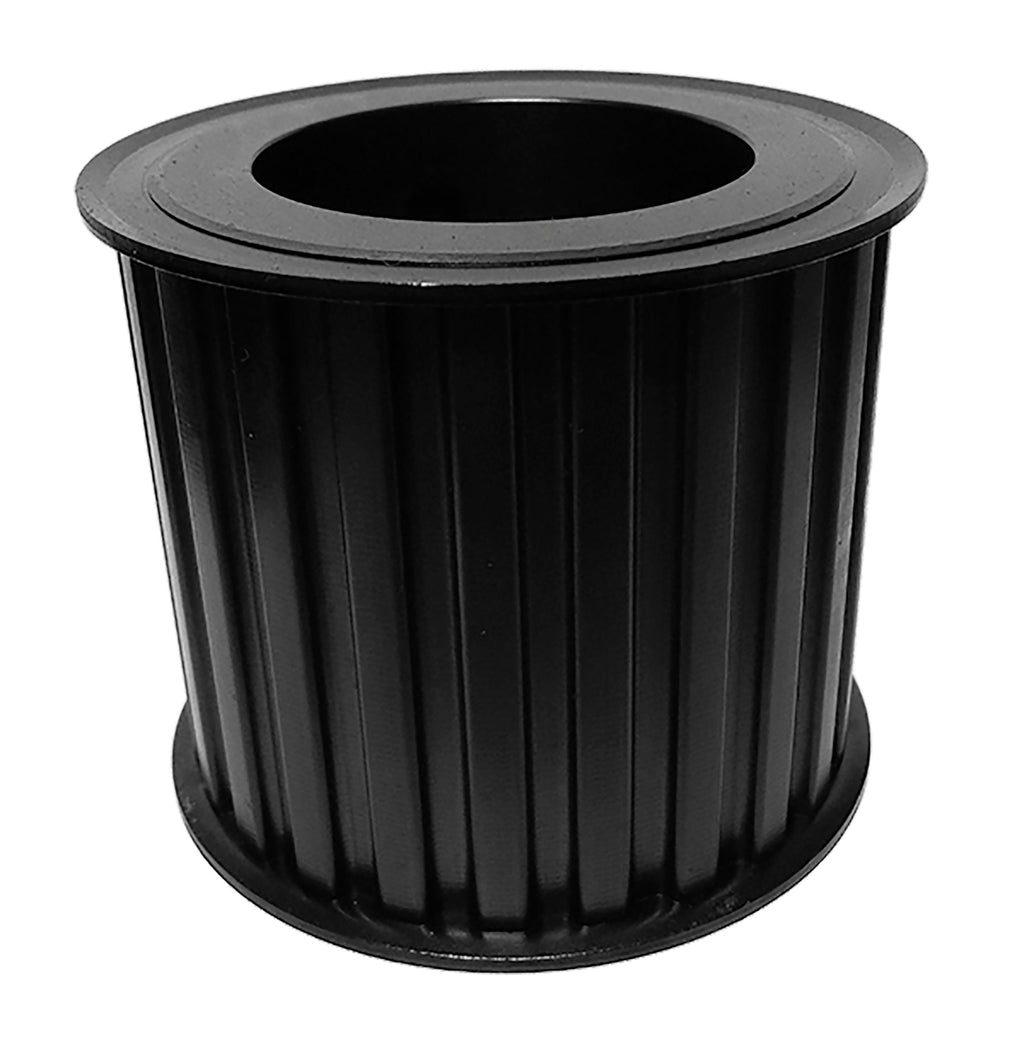

TL16H300 Timing Pulley, 16 Teeth, H Pitch

The TL16H300 is a 16-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Specification Value
Part Number TL16H300
Teeth 16
Pitch H (0.500 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 2.5465 in
Outside Diameter 2.4925 in
Flange Diameter 2.78 in
Bore Accepts 1108 bushing (not included)
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 2.612 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL16H300 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL16H300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin TB18H300
Gates® TL16H300
TB Woods® TL16H300
Masterdrive P16H300-1108
Powerdrive TL16H300

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL16H300 pulley?

H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL16H300 replace the Martin TB18H300?

Yes. Published interchange data crosses the TL16H300 directly to the Martin TB18H300, as well as Gates TL16H300, TB Woods TL16H300, Masterdrive P16H300-1108. Verify dimensions and bore before ordering.

Does the TL16H300 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL16H300?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
