TL18H150 Timing Pulley, 18 Teeth, H Pitch


Price:
$ 60.07

Description

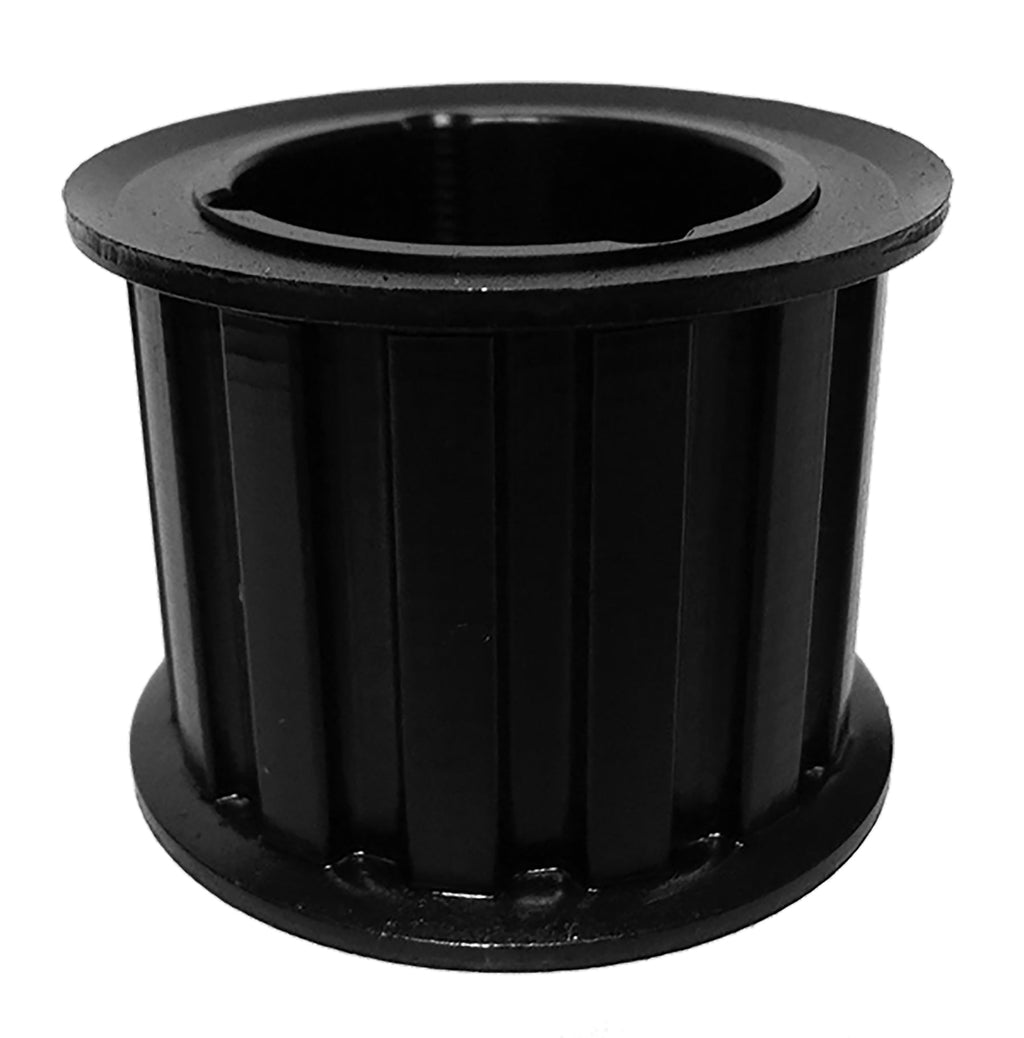

TL18H150 Timing Pulley, 18 Teeth, H Pitch

The TL18H150 is a 18-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 1.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL18H150
Teeth 18
Pitch H (0.500 in trapezoidal)
For Belt Width 1.5 in
Pitch Diameter 2.8648 in
Outside Diameter 2.8108 in
Flange Diameter 3.1 in
Bore Accepts 1215 bushing (not included)
Face Width 1.812 in
Overall Length 1.812 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.548 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL18H150 runs H (0.500 in trapezoidal) belts in 1.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL18H150 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL18H150-1210
Martin TB18H150
Gates® TL18H150
TB Woods® TL18H150
Mitsuboshi TL18H150-1215
Jason Industrial TL18H150
Optibelt TB 18-H-150
Masterdrive P18H150-1210
Ametric 18 H 150 TL
Powerdrive TL18H150

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL18H150 pulley?

H (0.500 in trapezoidal) timing belts in 1.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL18H150 replace the Dodge TL18H150-1210?

Yes. Published interchange data crosses the TL18H150 directly to the Dodge TL18H150-1210, as well as Martin TB18H150, Gates TL18H150, TB Woods TL18H150. Verify dimensions and bore before ordering.

Does the TL18H150 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL18H150?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
