TL22H100 Timing Pulley, 22 Teeth, H Pitch


Price:
$ 48.17

Description

TL22H100 Timing Pulley, 22 Teeth, H Pitch

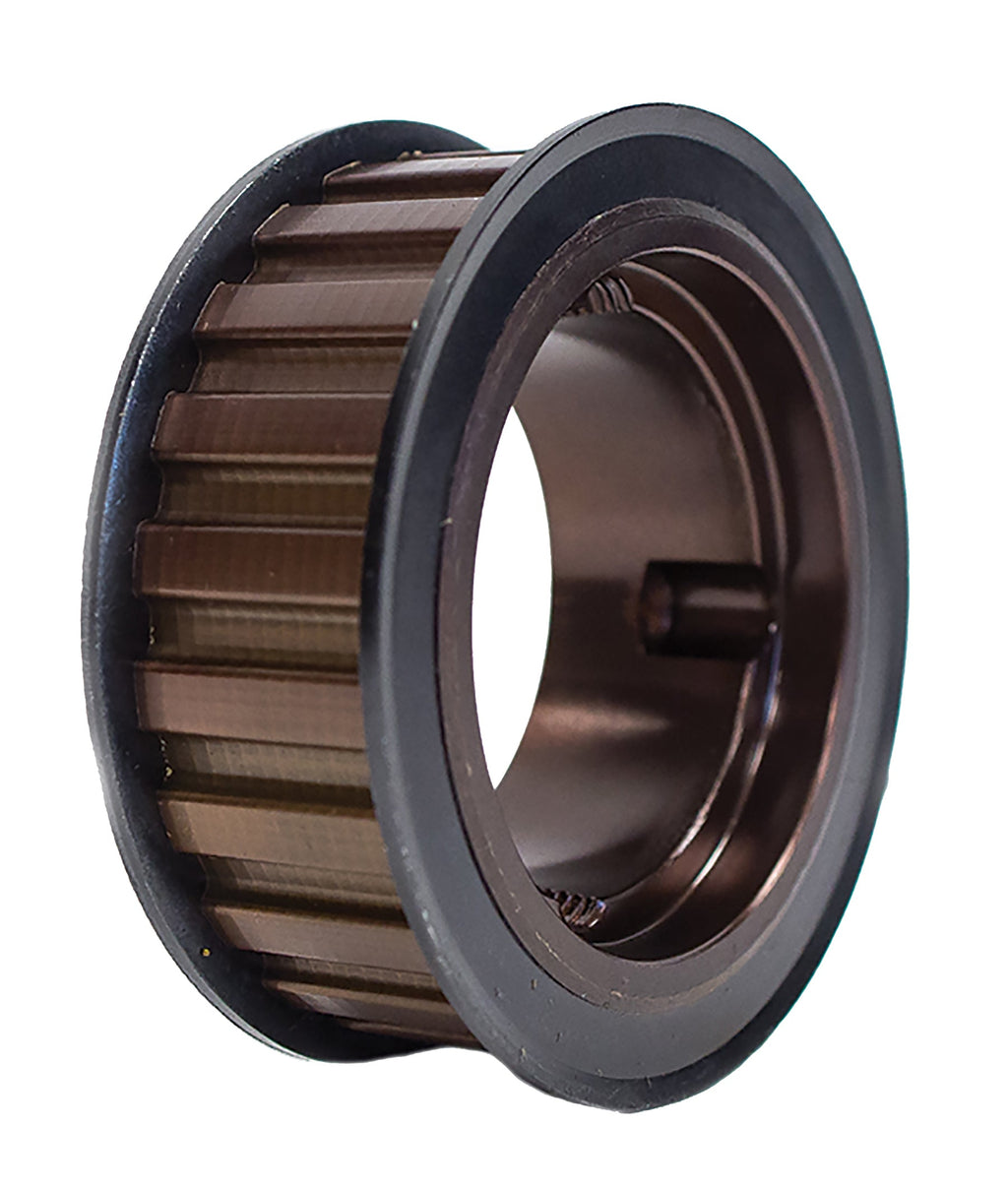

The TL22H100 is a 22-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL22H100
Teeth 22
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 3.5014 in
Outside Diameter 3.4474 in
Flange Diameter 3.735 in
Bore Accepts 1610 bushing (not included)
Face Width 1.312 in
Overall Length 1.312 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 1.722 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL22H100 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL22H100 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL22H100-1610
Martin TB22H100
Gates® TL22H100
TB Woods® TL22H100
Mitsuboshi TL20H100-1610
Jason Industrial TL22H100
Optibelt TB 22-H-100
Masterdrive P22H100-1610
Ametric 22 H 100 TL
Powerdrive TL22H100

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL22H100 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL22H100 replace the Dodge TL22H100-1610?

Yes. Published interchange data crosses the TL22H100 directly to the Dodge TL22H100-1610, as well as Martin TB22H100, Gates TL22H100, TB Woods TL22H100. Verify dimensions and bore before ordering.

Does the TL22H100 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
