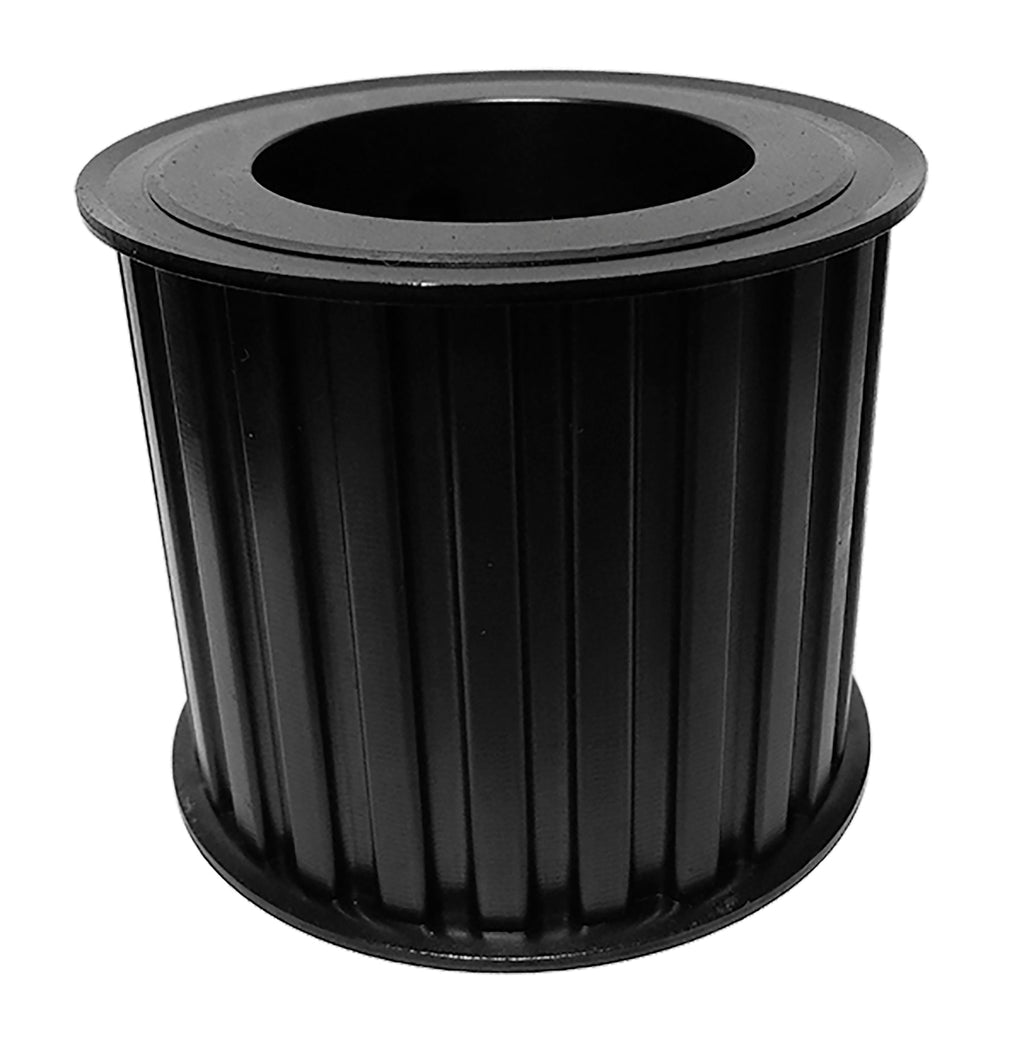

TL22H300 Timing Pulley, 22 Teeth, H Pitch


Price:
$ 125.83

Description

TL22H300 Timing Pulley, 22 Teeth, H Pitch

The TL22H300 is a 22-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL22H300
Teeth 22
Pitch H (0.500 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 3.5014 in
Outside Diameter 3.4474 in
Flange Diameter 3.735 in
Bore Accepts 1615 bushing (not included)
Face Width 3.375 in
Overall Length 3.375 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 4.403 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL22H300 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL22H300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL22H300-1615
Martin TB22H300
Gates® TL22H300
TB Woods® TL22H300
Mitsuboshi TL22H300-1615
Jason Industrial TL22H300
Optibelt TB 22-H-300
Masterdrive P22H300-1615
Ametric 22 H 300 TL
Powerdrive TL22H300

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL22H300 pulley?

H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL22H300 replace the Dodge TL22H300-1615?

Yes. Published interchange data crosses the TL22H300 directly to the Dodge TL22H300-1615, as well as Martin TB22H300, Gates TL22H300, TB Woods TL22H300. Verify dimensions and bore before ordering.

Does the TL22H300 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL22H300?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
