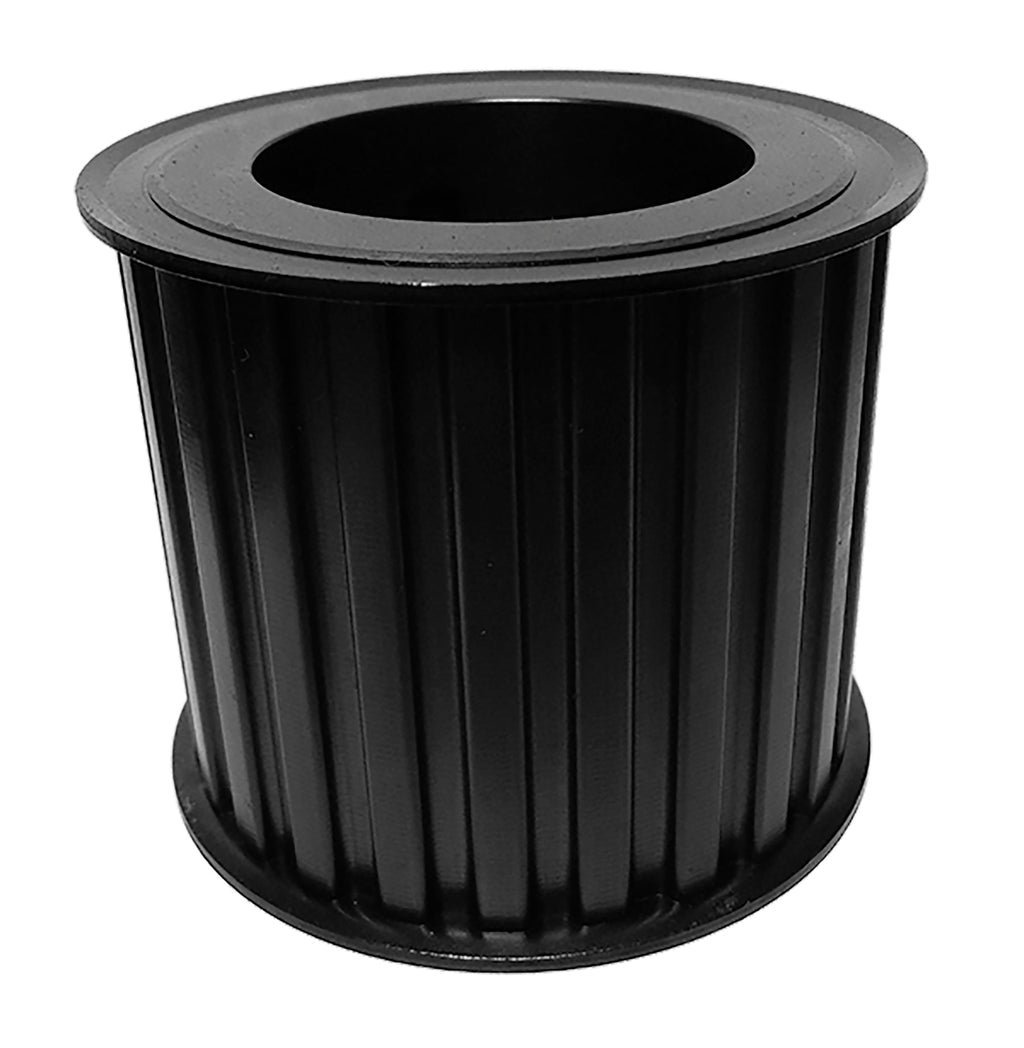

TL24H300 Timing Pulley, 24 Teeth, H Pitch


Price:
$ 136.81

Description

TL24H300 Timing Pulley, 24 Teeth, H Pitch

The TL24H300 is a 24-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL24H300
Teeth 24
Pitch H (0.500 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 3.8197 in
Outside Diameter 3.7657 in
Flange Diameter 4.05 in
Bore Accepts 2012 bushing (not included)
Face Width 3.375 in
Overall Length 3.375 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 4.3 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL24H300 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL24H300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL24H300-2012
Martin TB24H300
Gates® TL24H300
TB Woods® TL24H300
Mitsuboshi TL24H300-2012
Jason Industrial TL24H300
Optibelt TB 24-H-300
Masterdrive P24H300-2012
Ametric 24 H 300 TL
Powerdrive TL24H300

Always verify dimensions and bore size before substituting part numbers across manufacturers.
