TL24L075 Timing Pulley, 24 Teeth, L Pitch


Price:
$ 43.65

Description

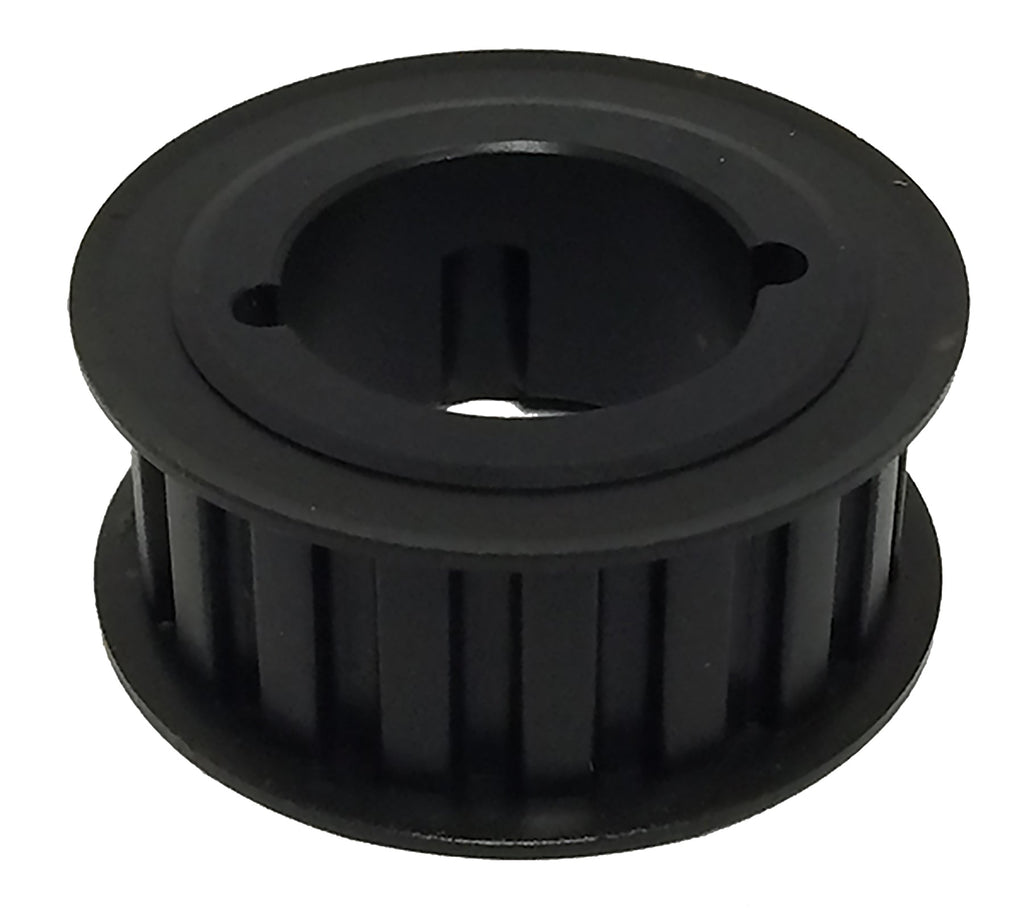

TL24L075 Timing Pulley, 24 Teeth, L Pitch

The TL24L075 is a 24-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 0.75 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL24L075
Teeth 24
Pitch L (0.375 in trapezoidal)
For Belt Width 0.75 in
Pitch Diameter 2.8648 in
Outside Diameter 2.8348 in
Flange Diameter 3.094 in
Bore Accepts 1210 bushing (not included)
Face Width 1 in
Overall Length 1 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL24L075 runs L (0.375 in trapezoidal) belts in 0.75 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL24L075 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL24L075-1210
Martin TB24L075
Gates® TL24L075
TB Woods® TL24L075
Mitsuboshi TL24L075-1210
Jason Industrial TL24L075
Optibelt TB 24-L-075
Masterdrive P24L075-1210
Neuman TL-24L075-1210
Ametric 24 L 075 TL.1108

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL24L075 pulley?

L (0.375 in trapezoidal) timing belts in 0.75 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL24L075 replace the Dodge TL24L075-1210?

Yes. Published interchange data crosses the TL24L075 directly to the Dodge TL24L075-1210, as well as Martin TB24L075, Gates TL24L075, TB Woods TL24L075. Verify dimensions and bore before ordering.

Does the TL24L075 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL24L075?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
