TL28H200 Timing Pulley, 28 Teeth, H Pitch


Price:
$ 95.89

Description

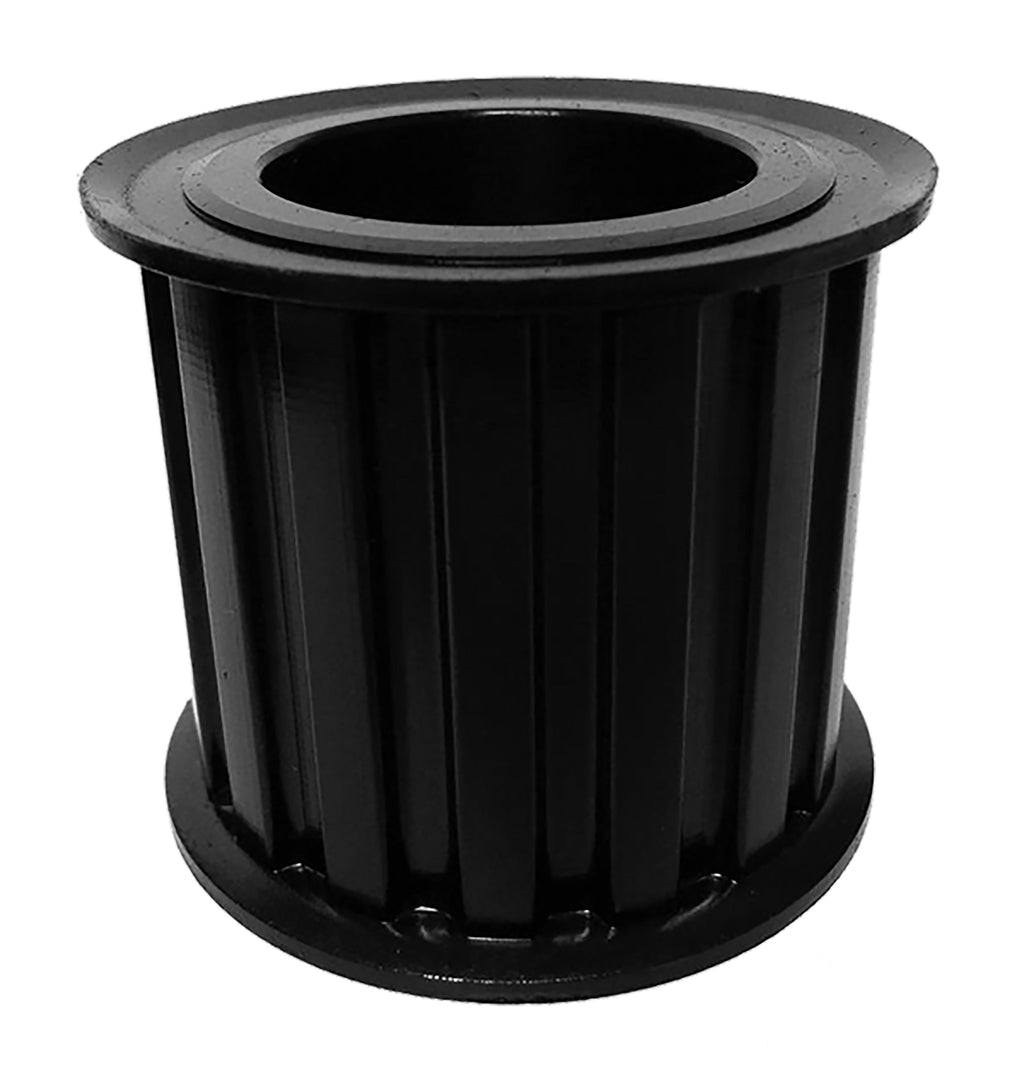

TL28H200 Timing Pulley, 28 Teeth, H Pitch

The TL28H200 is a 28-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 2F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL28H200
Teeth 28
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 4.4563 in
Outside Diameter 4.4023 in
Flange Diameter 4.687 in
Bore Accepts 2012 bushing (not included)
Face Width 2.344 in
Overall Length 2.344 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 5.381 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL28H200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL28H200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL28H200-2012 DYNA-SYNC SPKT
Martin TB28H200
Gates® TL28H200
TB Woods® TL28H200
Mitsuboshi TL28H200-2012
Jason Industrial TL28H200
Optibelt TB 28-H-200
Masterdrive P28H200-2012
Ametric 28 H 200 TL
Powerdrive TL28H200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL28H200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL28H200 replace the Dodge TL28H200-2012 DYNA-SYNC SPKT?

Yes. Published interchange data crosses the TL28H200 directly to the Dodge TL28H200-2012 DYNA-SYNC SPKT, as well as Martin TB28H200, Gates TL28H200, TB Woods TL28H200. Verify dimensions and bore before ordering.

Does the TL28H200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL28H200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
