Description

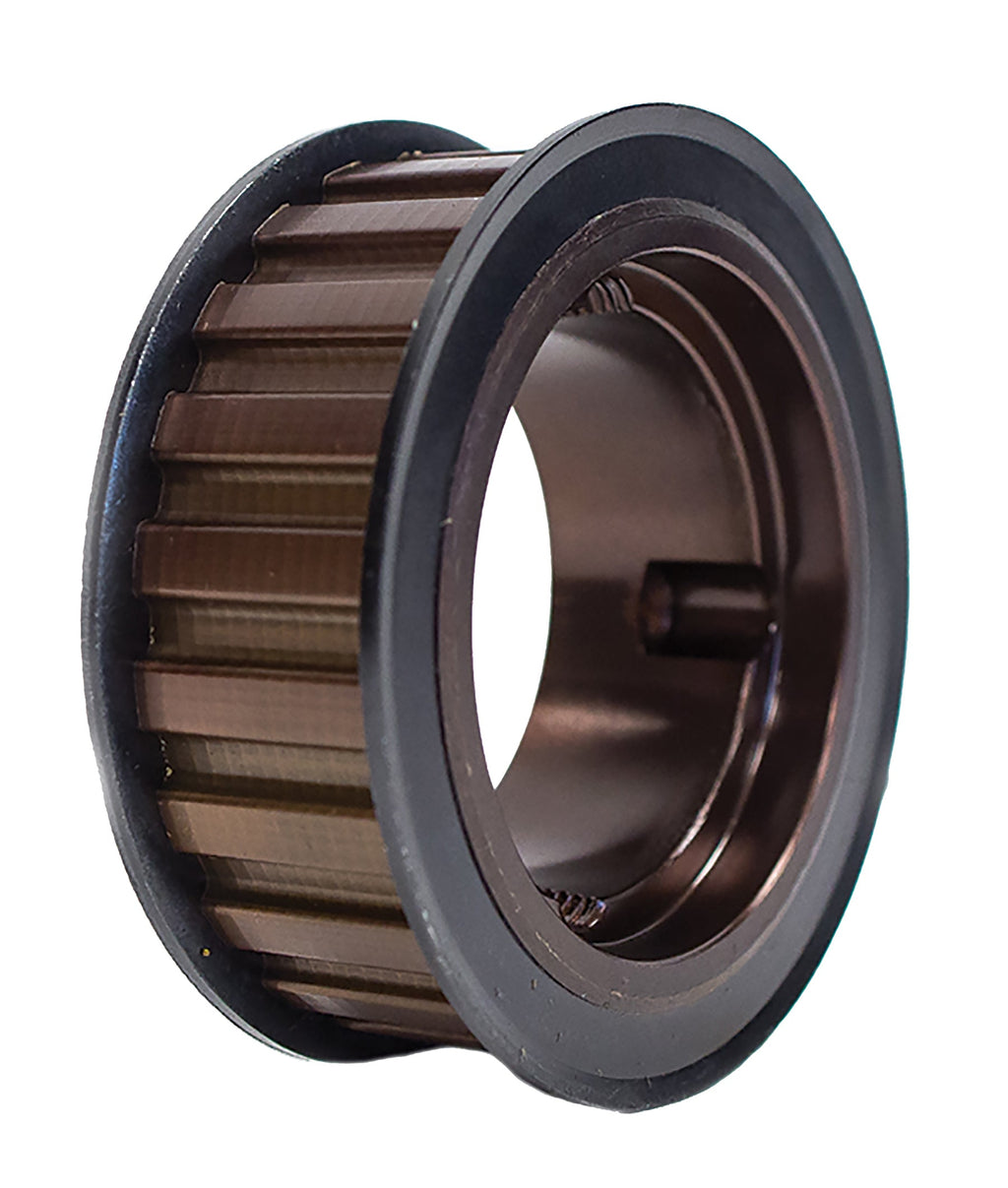

TL32H100-2012 Timing Pulley, 32 Teeth, H Pitch
The TL32H100-2012 is a 32-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications
| Specification | Value |
|---|---|
| Part Number | TL32H100-2012 |
| Teeth | 32 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 2mm |
| Pitch Diameter | 5.093 in |
| Outside Diameter | 5.039 in |
| Flange Diameter | 5.32 in |
| Bore | Accepts 2012 bushing (not included) |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 4.1 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The TL32H100-2012 runs H (0.500 in trapezoidal) belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The TL32H100-2012 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | TB32H100 |
| Mitsuboshi | TL32H100-2012 |
| Powerdrive | TL32H100-2012 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the TL32H100-2012 pulley?
H (0.500 in trapezoidal) timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the TL32H100-2012 replace the Martin TB32H100?
Yes. Published interchange data crosses the TL32H100-2012 directly to the Martin TB32H100, as well as Mitsuboshi TL32H100-2012, Powerdrive TL32H100-2012. Verify dimensions and bore before ordering.
Does the TL32H100-2012 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on TL32H100-2012?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
