TL32H100-2517 Timing Pulley, 32 Teeth, H Pitch


Price:
$ 97.42

Description

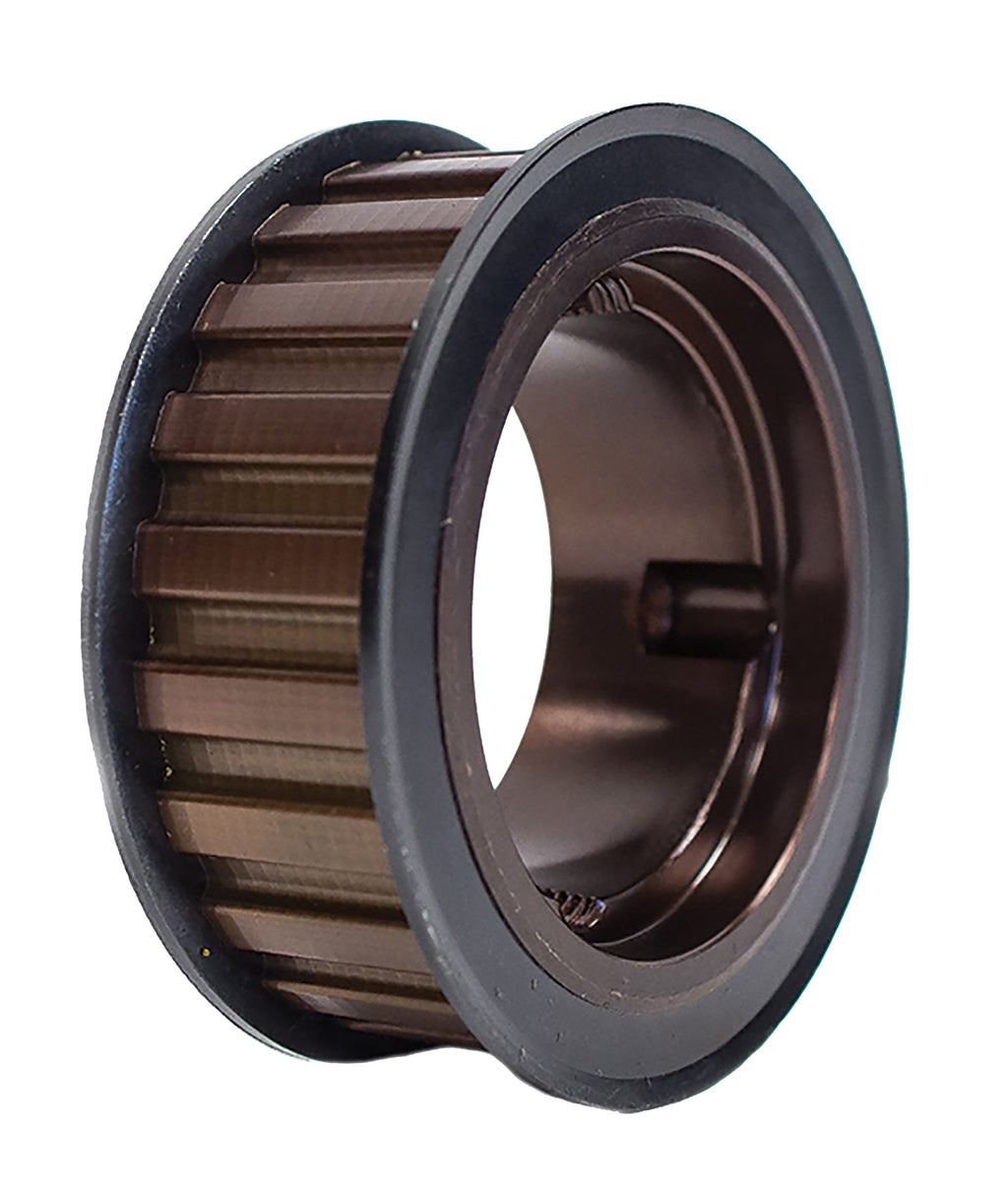

TL32H100-2517 Timing Pulley, 32 Teeth, H Pitch

The TL32H100-2517 is a 32-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL32H100-2517
Teeth 32
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 5.093 in
Outside Diameter 5.039 in
Flange Diameter 5.32 in
Bore Accepts 2517 bushing (not included)
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 4.494 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL32H100-2517 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL32H100-2517 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL32H100-2517
Gates® TL32H100
TB Woods® TL32H100
Mitsuboshi TL32H100-2517
Masterdrive P32H100-2517
Powerdrive TL32H100-2517

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL32H100-2517 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL32H100-2517 replace the Dodge TL32H100-2517?

Yes. Published interchange data crosses the TL32H100-2517 directly to the Dodge TL32H100-2517, as well as Gates TL32H100, TB Woods TL32H100, Mitsuboshi TL32H100-2517. Verify dimensions and bore before ordering.

Does the TL32H100-2517 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL32H100-2517?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
