TL32H200 Timing Pulley, 32 Teeth, H Pitch


Price:
$ 127.44

Description

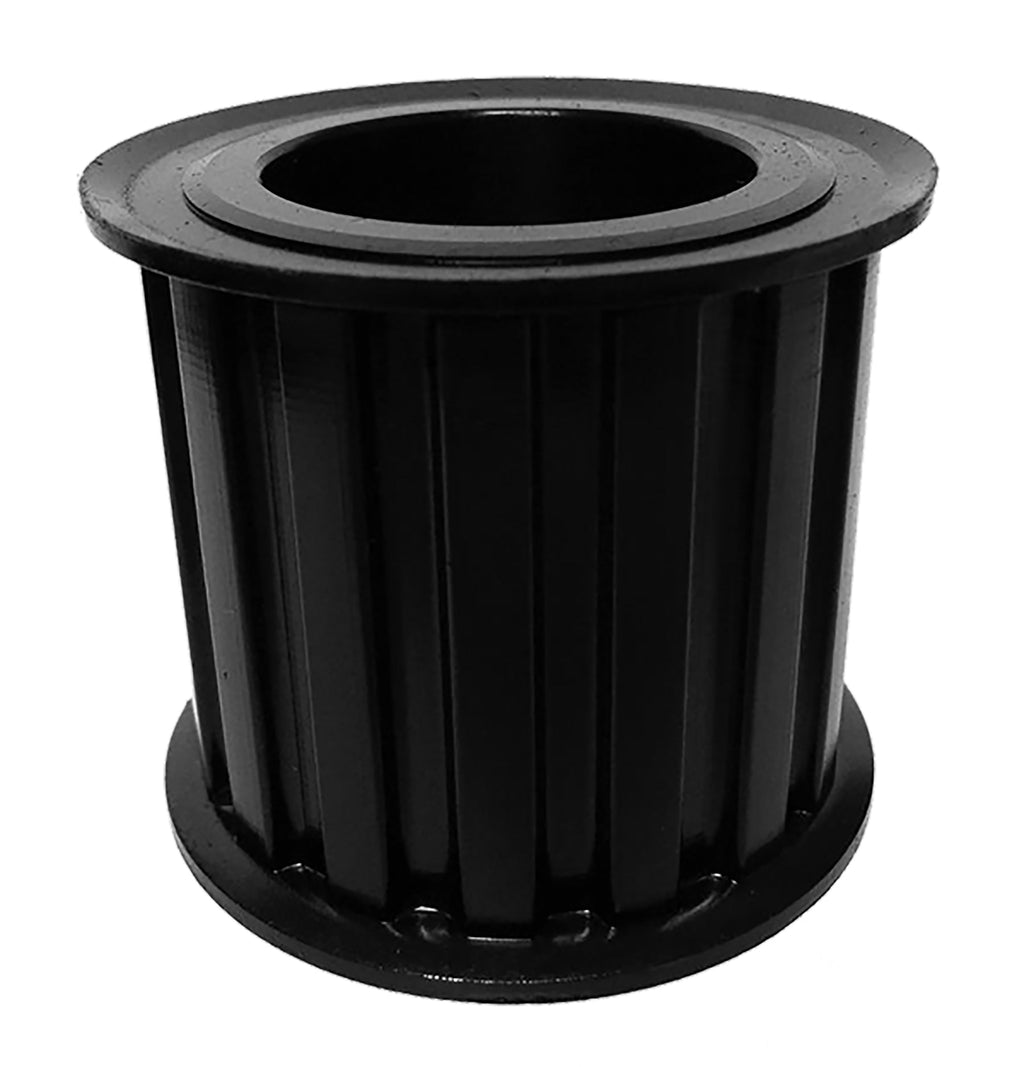

TL32H200 Timing Pulley, 32 Teeth, H Pitch

The TL32H200 is a 32-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL32H200
Teeth 32
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 5.093 in
Outside Diameter 5.039 in
Flange Diameter 5.32 in
Bore Accepts 2517 bushing (not included)
Face Width 1.812 in
Overall Length 1.812 in
Construction Taper Lock Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 7.414 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL32H200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL32H200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL32H200-2517
Martin TB32H200
Gates® TL32H200
TB Woods® TL32H200
Mitsuboshi TL32H200-2517
Jason Industrial TL32H200
Optibelt TB 32-H-200
Masterdrive P32H200-2517
Ametric 32 H 200 TL
Powerdrive TL32H200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL32H200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL32H200 replace the Dodge TL32H200-2517?

Yes. Published interchange data crosses the TL32H200 directly to the Dodge TL32H200-2517, as well as Martin TB32H200, Gates TL32H200, TB Woods TL32H200. Verify dimensions and bore before ordering.

Does the TL32H200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL32H200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
