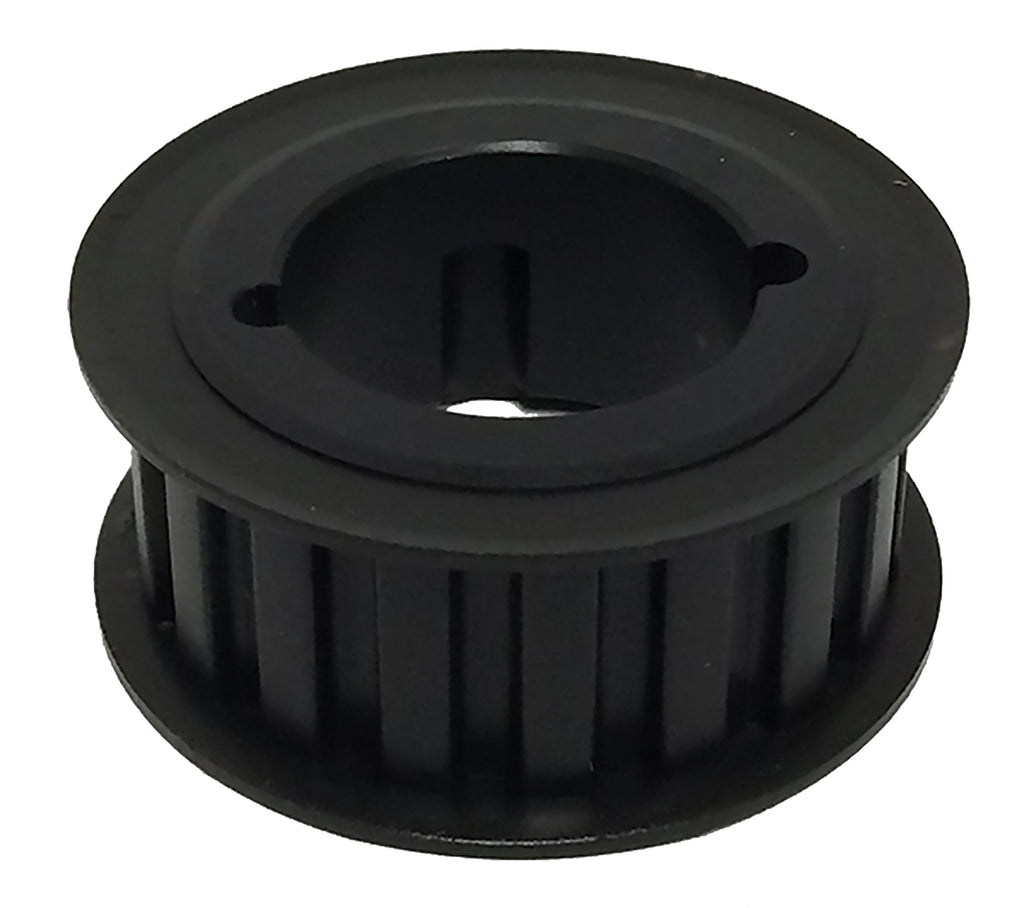

TL32L075 Timing Pulley, 32 Teeth, L Pitch


Price:
$ 57.64

Description

TL32L075 Timing Pulley, 32 Teeth, L Pitch

The TL32L075 is a 32-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 0.75 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL32L075
Teeth 32
Pitch L (0.375 in trapezoidal)
For Belt Width 0.75 in
Pitch Diameter 3.8197 in
Outside Diameter 3.7897 in
Flange Diameter 4.044 in
Bore Accepts 1610 bushing (not included)
Face Width 1 in
Overall Length 1 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 1.916 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL32L075 runs L (0.375 in trapezoidal) belts in 0.75 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL32L075 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL32L075-1610
Martin TB32L075 
Gates® TL32L075
TB Woods® TL32L075
Mitsuboshi TL32L075-1610
Jason Industrial TL32L075
Optibelt TB 32-L-075
Masterdrive P32L075-1610
Neuman TL-32L075-1610
Ametric 32 L 075 TL.1108

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL32L075 pulley?

L (0.375 in trapezoidal) timing belts in 0.75 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL32L075 replace the Dodge TL32L075-1610?

Yes. Published interchange data crosses the TL32L075 directly to the Dodge TL32L075-1610, as well as Martin TB32L075 , Gates TL32L075, TB Woods TL32L075. Verify dimensions and bore before ordering.

Does the TL32L075 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL32L075?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
