TL48H200 Timing Pulley, 48 Teeth, H Pitch


Price:
$ 246.07

Description

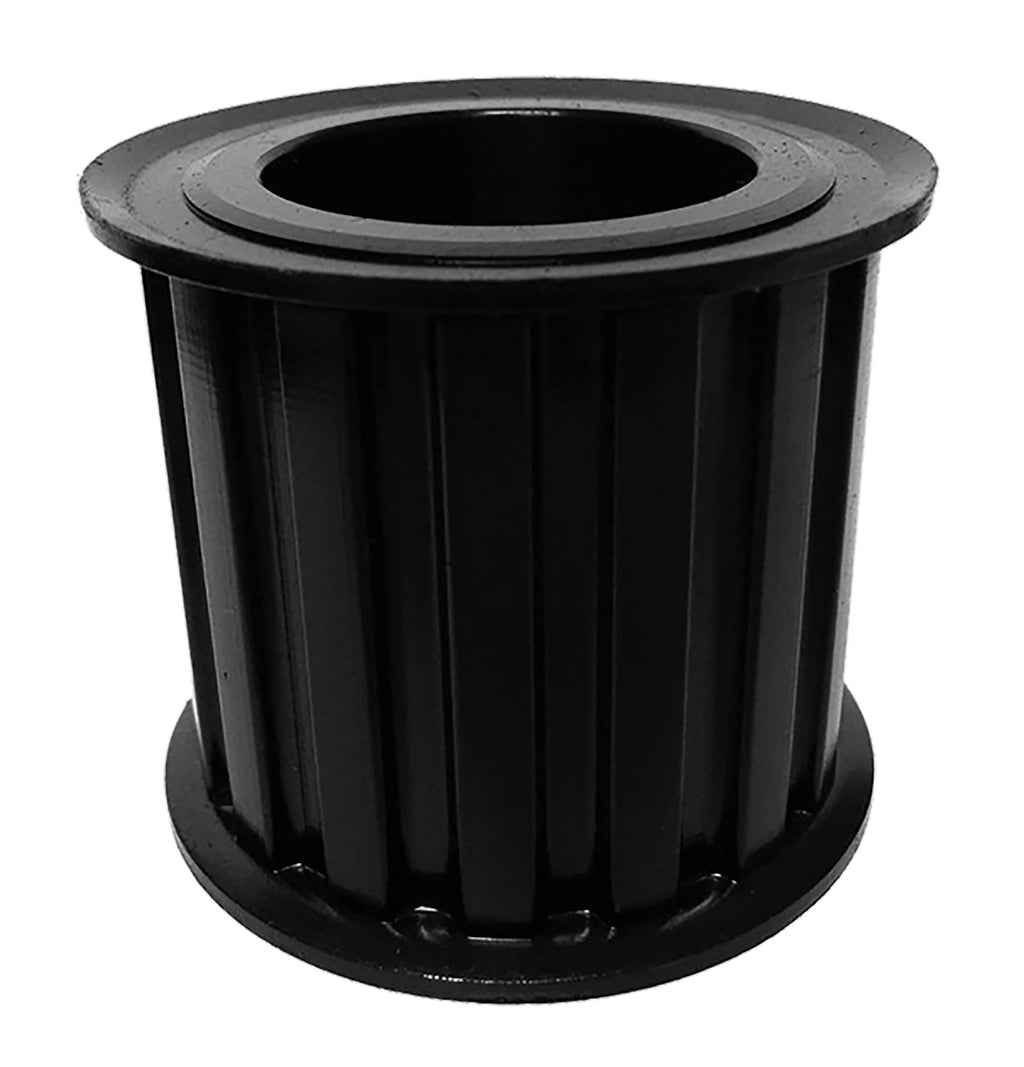

TL48H200 Timing Pulley, 48 Teeth, H Pitch

The TL48H200 is a 48-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type 3F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL48H200
Teeth 48
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 7.6394 in
Outside Diameter 7.5854 in
Flange Diameter 7.867 in
Bore Accepts 3020 bushing (not included)
Face Width 3.375 in
Overall Length 3.375 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 18.916 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL48H200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL48H200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL48H200-3020
Martin TB48H200
Gates® TL48H200
TB Woods® TL48H200
Mitsuboshi TL48H200-3020
Jason Industrial TL48H200
Optibelt TB 48-H-200
Masterdrive P48H200-3020
Ametric 48 H 200 TL
Powerdrive TL48H200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL48H200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL48H200 replace the Dodge TL48H200-3020?

Yes. Published interchange data crosses the TL48H200 directly to the Dodge TL48H200-3020, as well as Martin TB48H200, Gates TL48H200, TB Woods TL48H200. Verify dimensions and bore before ordering.

Does the TL48H200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL48H200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
