TL48H300 Timing Pulley, 48 Teeth, H Pitch


Price:
$ 267.36

Description

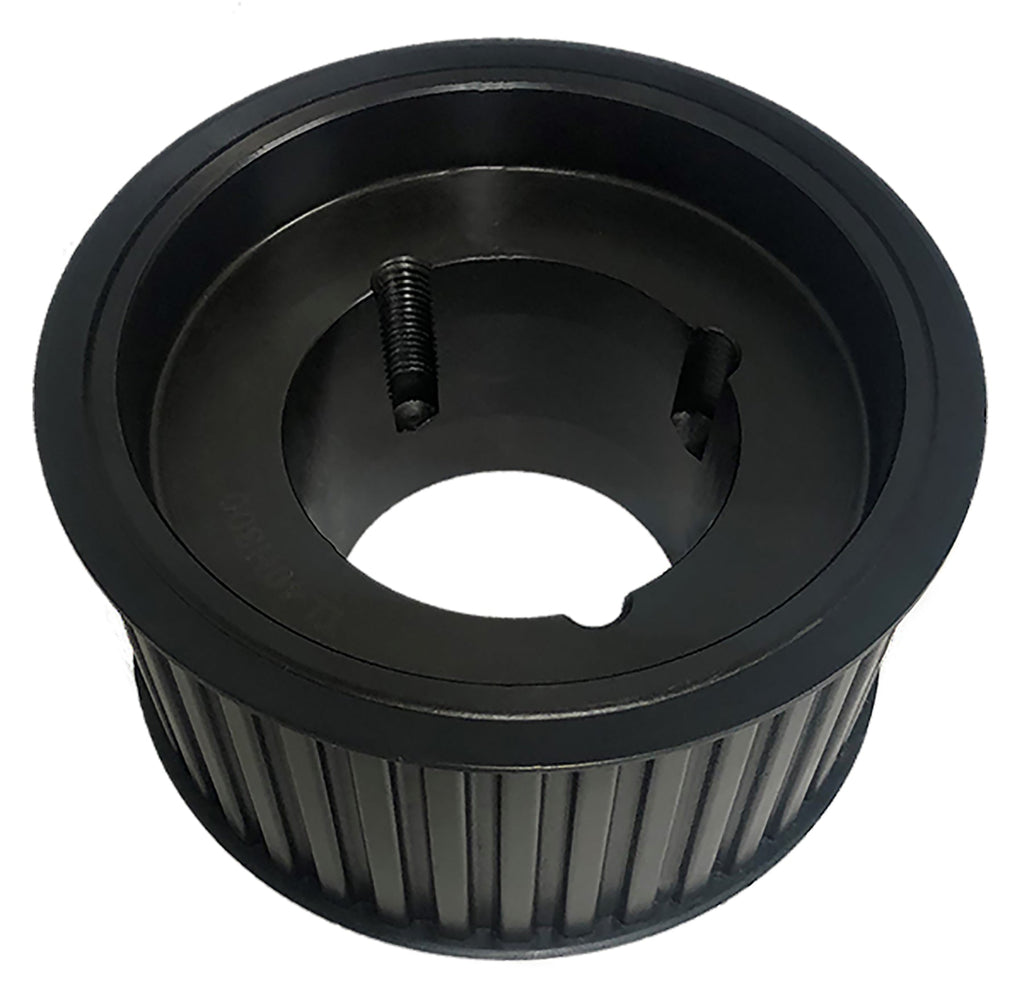

TL48H300 Timing Pulley, 48 Teeth, H Pitch

The TL48H300 is a 48-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Specification Value
Part Number TL48H300
Teeth 48
Pitch H (0.500 in trapezoidal)
For Belt Width 3 in
Pitch Diameter 7.6394 in
Outside Diameter 7.5854 in
Flange Diameter 7.867 in
Bore Accepts 3020 bushing (not included)
Face Width 3.375 in
Overall Length 3.375 in
Construction Taper Lock Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 26.453 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The TL48H300 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL48H300 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL48H300-3020
Martin TB48H300
Gates® TL48H300
TB Woods® TL48H300
Mitsuboshi TL48H300-3020
Jason Industrial TL48H300
Optibelt TB 48-H-300
Masterdrive P48H300-3020
Ametric 48 H 300 TL
Powerdrive TL48H300

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL48H300 pulley?

H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL48H300 replace the Dodge TL48H300-3020?

Yes. Published interchange data crosses the TL48H300 directly to the Dodge TL48H300-3020, as well as Martin TB48H300, Gates TL48H300, TB Woods TL48H300. Verify dimensions and bore before ordering.

Does the TL48H300 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL48H300?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
