TL84H100 Timing Pulley, 84 Teeth, H Pitch


Price:
$ 288.10

Description

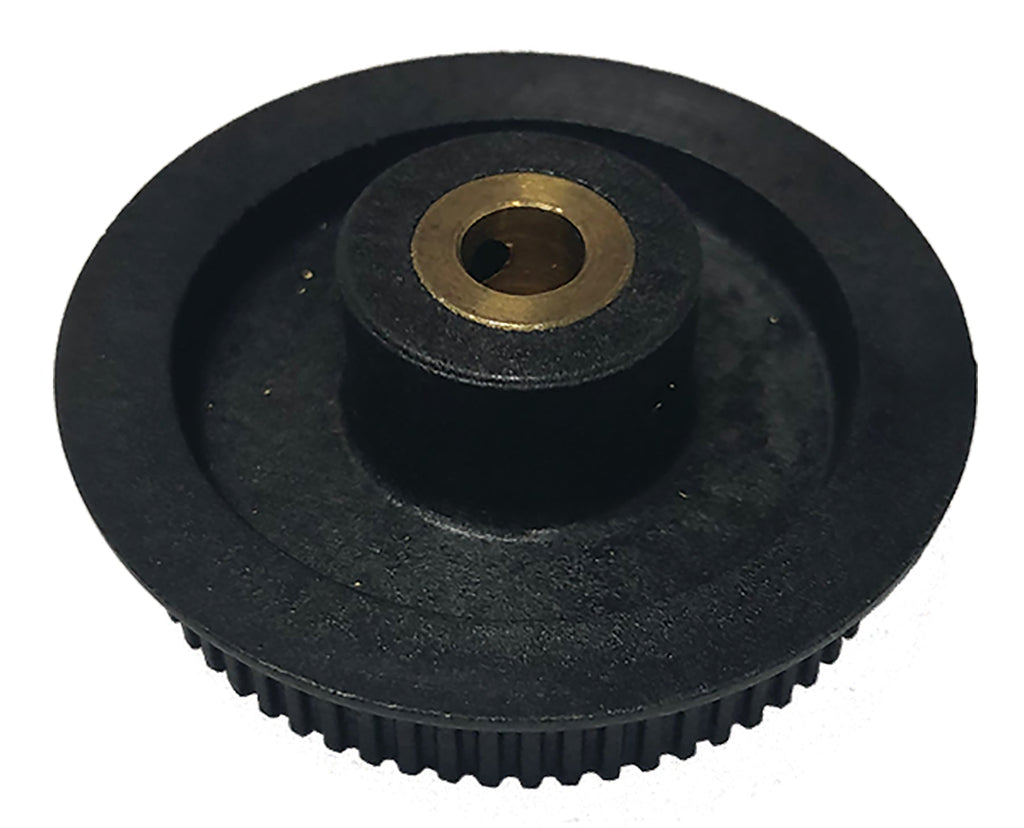

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

TL84H100 Timing Pulley, 84 Teeth, H Pitch

The TL84H100 is a 84-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type C3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number TL84H100
Teeth 84
Pitch H (0.500 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 13.369 in
Outside Diameter 13.315 in
Bore Accepts 3020 bushing (not included)
Face Width 1.312 in
Overall Length 1.312 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 26.429 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The TL84H100 runs H (0.500 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The TL84H100 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® TL84H100-3020
Gates® TL84H100
TB Woods® TL84H100
Mitsuboshi TL84H100-3020
Jason Industrial TL84H100
Optibelt TB 84-H-100
Masterdrive P84H100-3020
Ametric 84 H 100 TL
Powerdrive TL84H100

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the TL84H100 pulley?

H (0.500 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the TL84H100 replace the Dodge TL84H100-3020?

Yes. Published interchange data crosses the TL84H100 directly to the Dodge TL84H100-3020, as well as Gates TL84H100, TB Woods TL84H100, Mitsuboshi TL84H100-3020. Verify dimensions and bore before ordering.

Does the TL84H100 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on TL84H100?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
