BlackStar 120E17 - 120 Pitch QD Sprocket - 17 Tooth


Price:
$ 167.67

Description

The BlackStar 120E17 is a 120 pitch QD roller chain sprocket with 17 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 120E17
Chain Pitch 120
Number of Teeth 17
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 8.92"
Pitch Diameter 8.163"
Approx. Weight 13.4 lbs

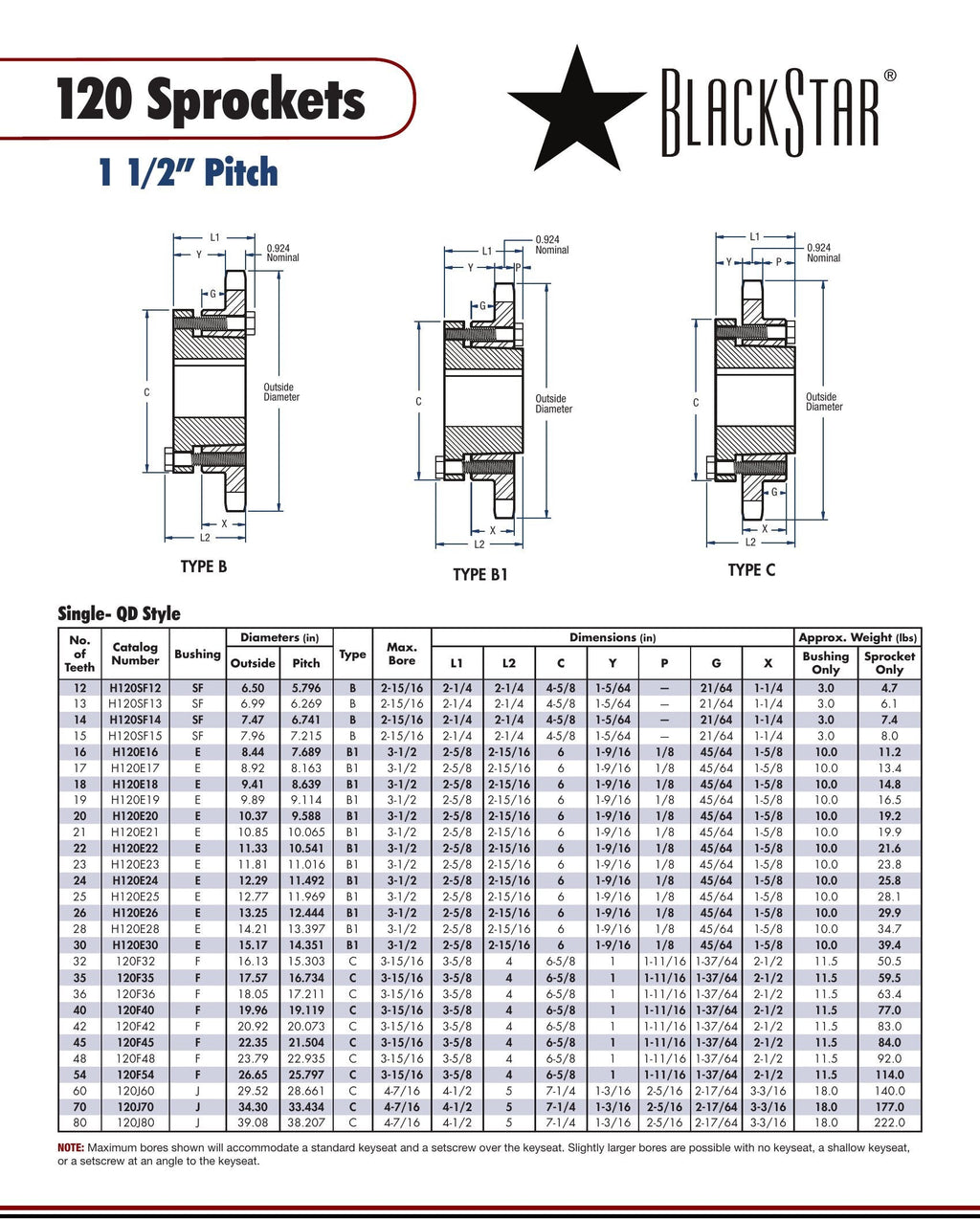

BlackStar 120E17 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 120E17, Martin 120E17
