BlackStar 120F20 - 120 Pitch QD Sprocket - 20 Tooth


Price:
$ 197.80

Description

The BlackStar 120F20 is a 120 pitch QD roller chain sprocket with 20 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number 120F20
Chain Pitch 120
Number of Teeth 20
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Single
Material Steel
Outside Diameter 10.37"
Pitch Diameter 9.588"
Approx. Weight 20.000 lbs

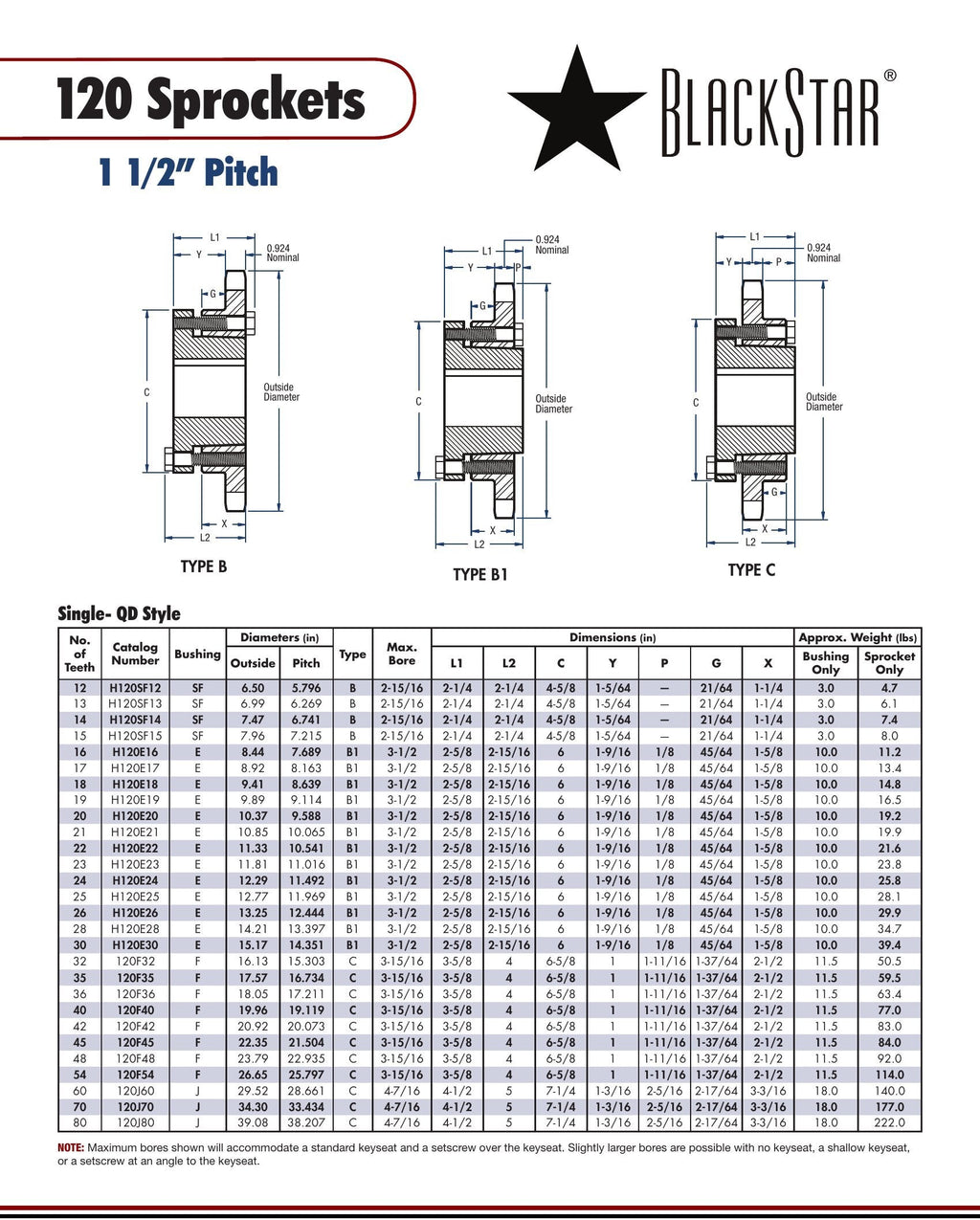

BlackStar 120F20 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning 120F20, Martin 120F20
