BlackStar 120F32 - 120 Pitch QD Sprocket - 32 Tooth


Price:
$ 458.30

Description

The BlackStar 120F32 is a 120 pitch QD roller chain sprocket with 32 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 120F32
Chain Pitch 120
Number of Teeth 32
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 16.13"
Pitch Diameter 15.303"
Approx. Weight 50.5 lbs

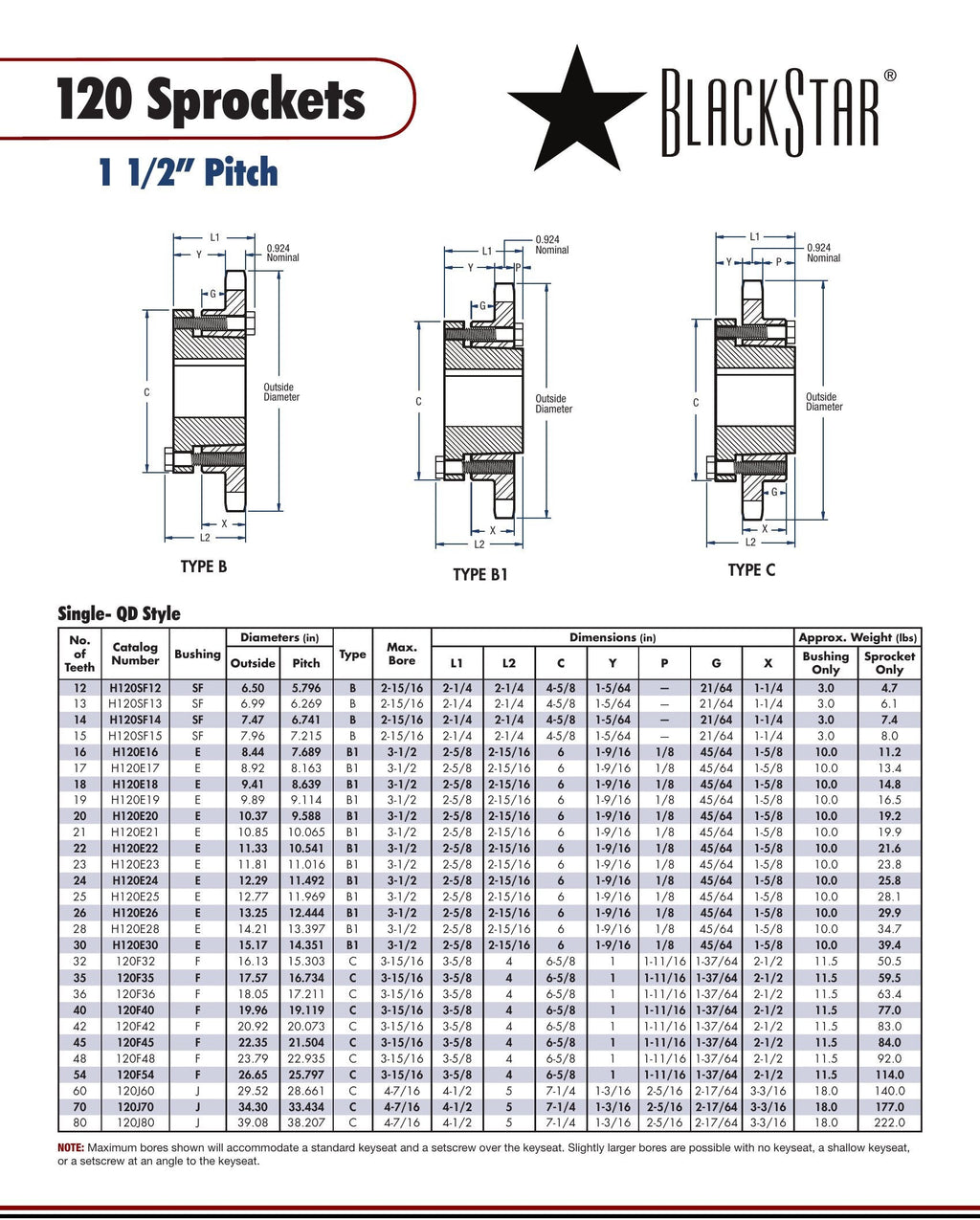

BlackStar 120F32 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 120F32, Martin 120F32
