BlackStar 120F45 TH - 120 Pitch QD Sprocket - 45 Tooth


Price:
$ 618.19

Description

The BlackStar 120F45 TH is a 120 pitch QD roller chain sprocket with 45 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 120F45 TH
Chain Pitch 120
Number of Teeth 45
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 22.35"
Pitch Diameter 21.504"
Approx. Weight 84.0 lbs

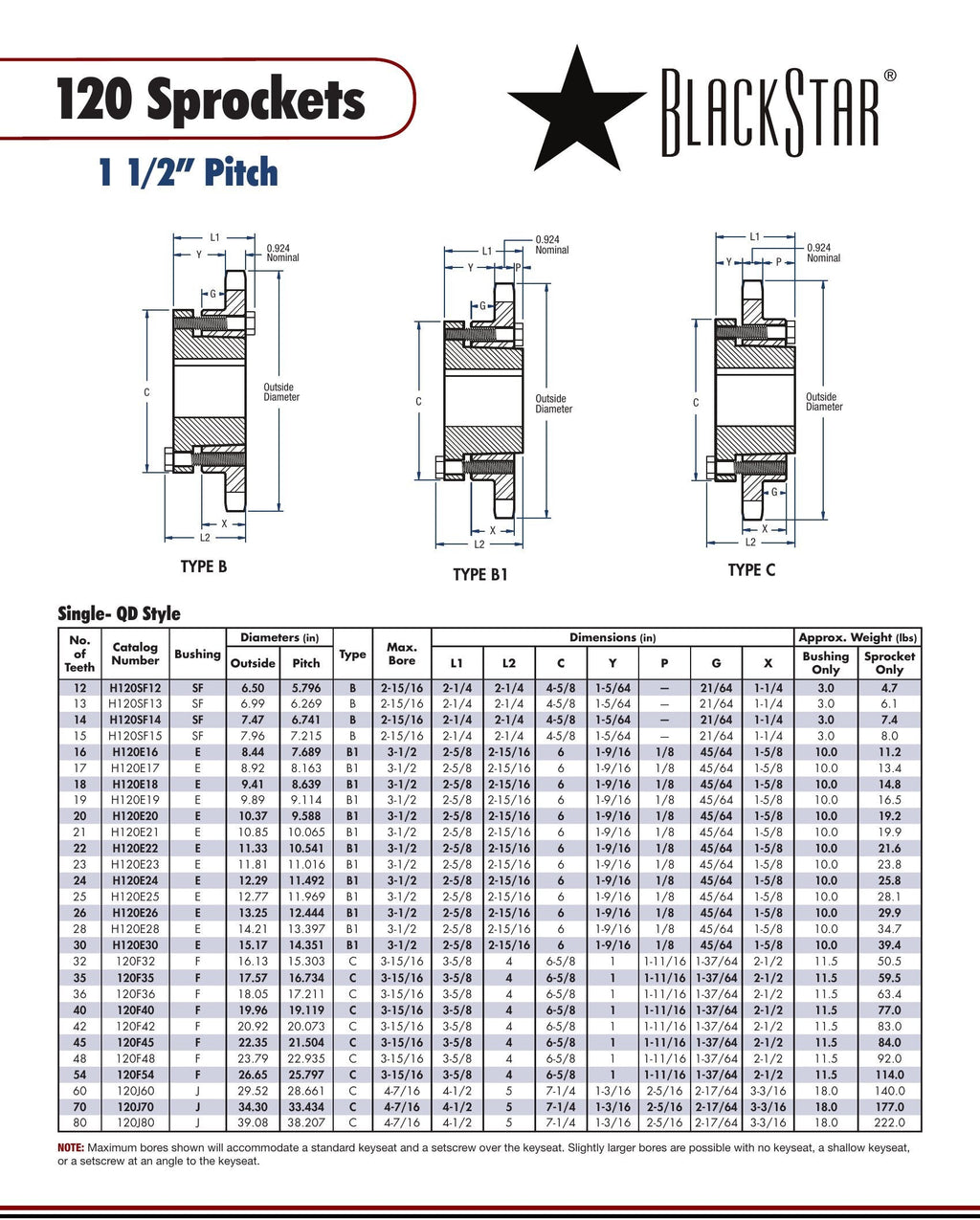

BlackStar 120F45 TH Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 120F45, Martin 120F45
