BlackStar 120F54 LH - 120 Pitch QD Sprocket - 54 Tooth


Price:
$ 948.19

Description

The BlackStar 120F54 LH is a 120 pitch QD roller chain sprocket with 54 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 120F54 LH
Chain Pitch 120
Number of Teeth 54
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 26.65"
Pitch Diameter 25.797"
Approx. Weight 114.0 lbs

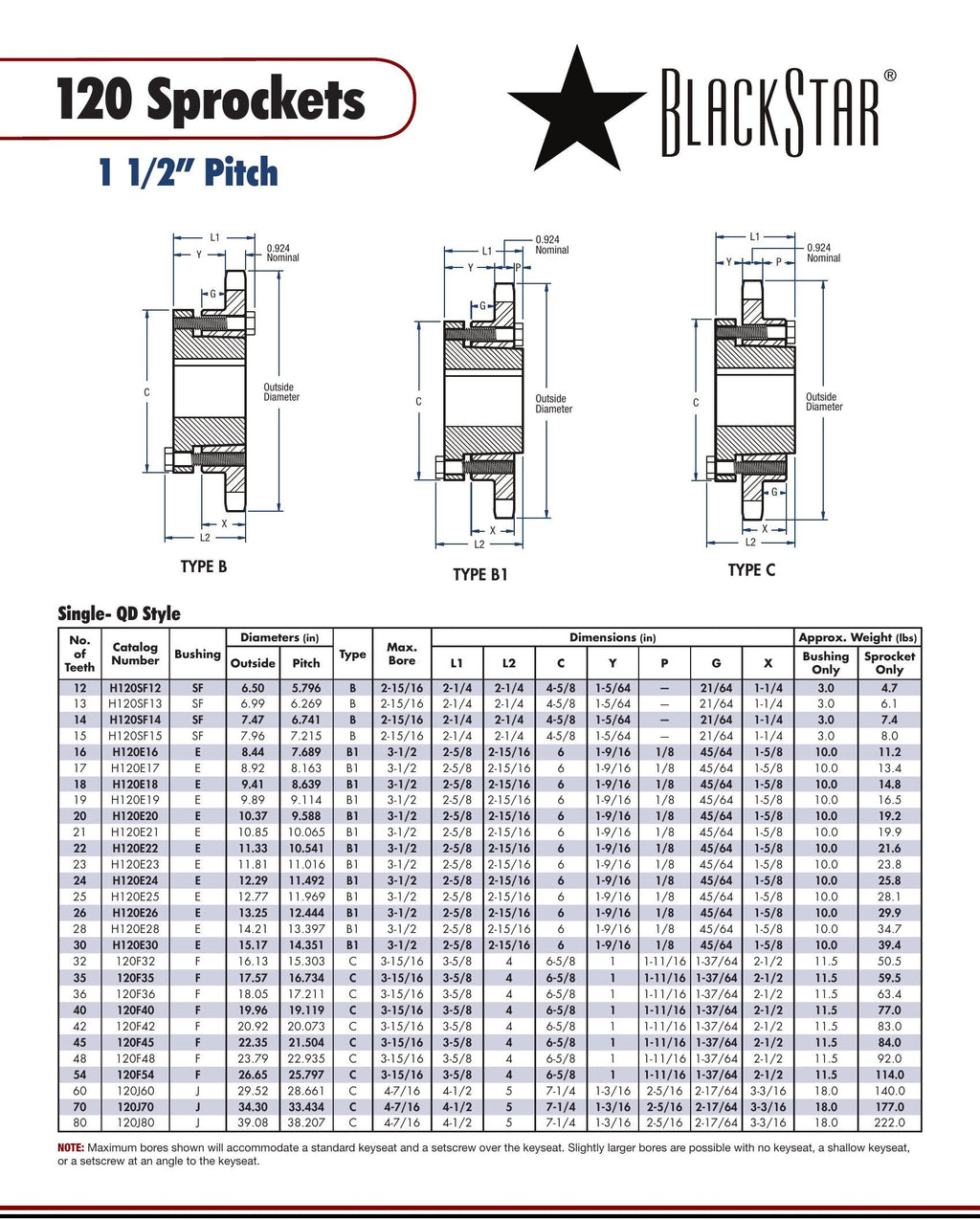

BlackStar 120F54 LH Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 120F54, Martin 120F54
