BlackStar 120J70 LH - 120 Pitch QD Sprocket - 70 Tooth


Price:
$ 1,340.87

Description

The BlackStar 120J70 LH is a 120 pitch QD roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type J Bushing (sold separately).

Specifications
Part Number 120J70 LH
Chain Pitch 120
Number of Teeth 70
Maximum Bore 4-7/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type J Bushing
Strand Count Single
Material Steel
Outside Diameter 34.30"
Pitch Diameter 33.434"
Approx. Weight 177.0 lbs

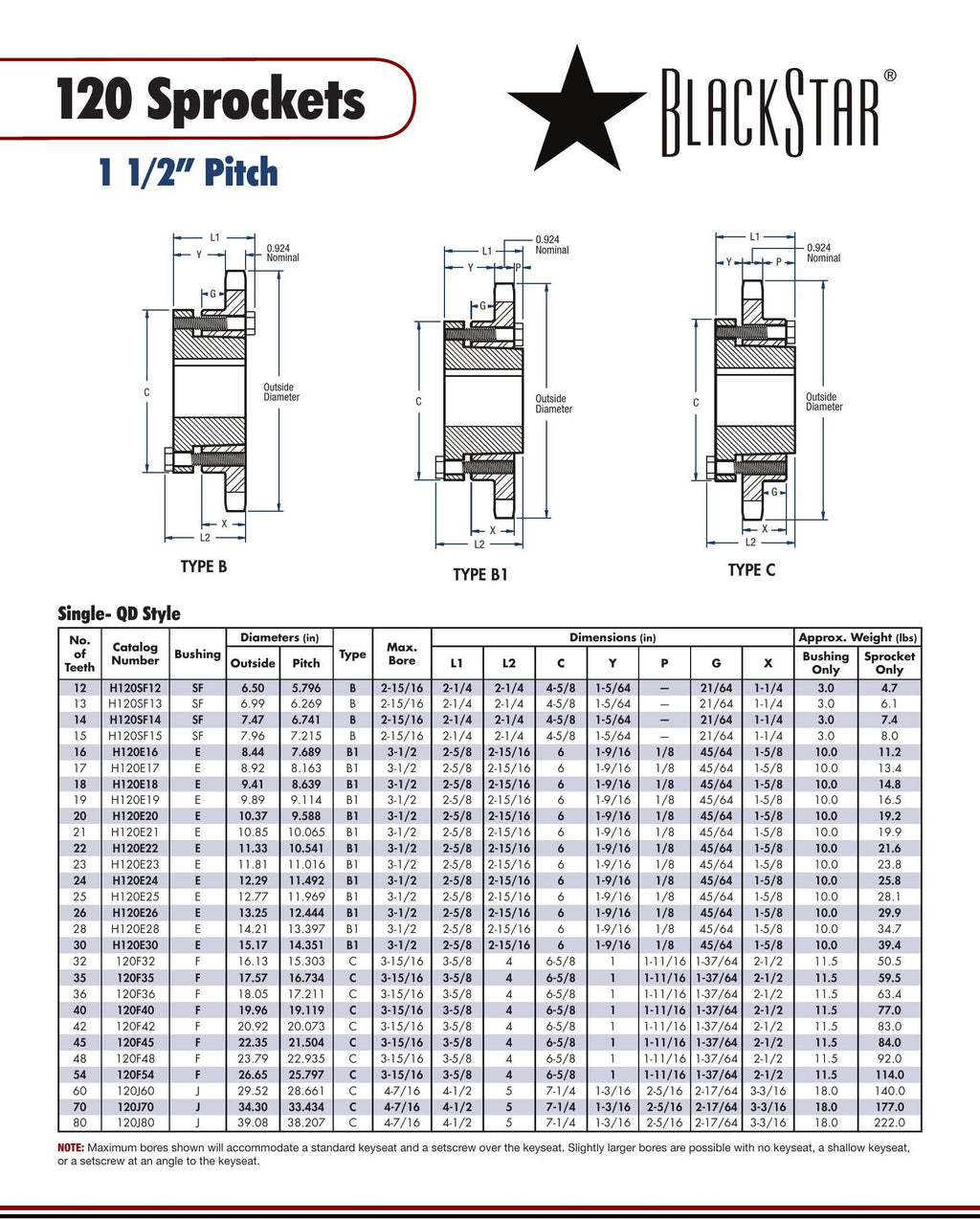

BlackStar 120J70 LH Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type J Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type J Bushing Spec Sheet

Cross-references: Browning 120J70, Martin 120J70
