BlackStar 120SF14 - 120 Pitch QD Sprocket - 14 Tooth


Price:
$ 145.31

Description

The BlackStar 120SF14 is a 120 pitch QD roller chain sprocket with 14 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number 120SF14
Chain Pitch 120
Number of Teeth 14
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Single
Material Steel
Outside Diameter 7.47"
Pitch Diameter 6.741"
Approx. Weight 7.4 lbs

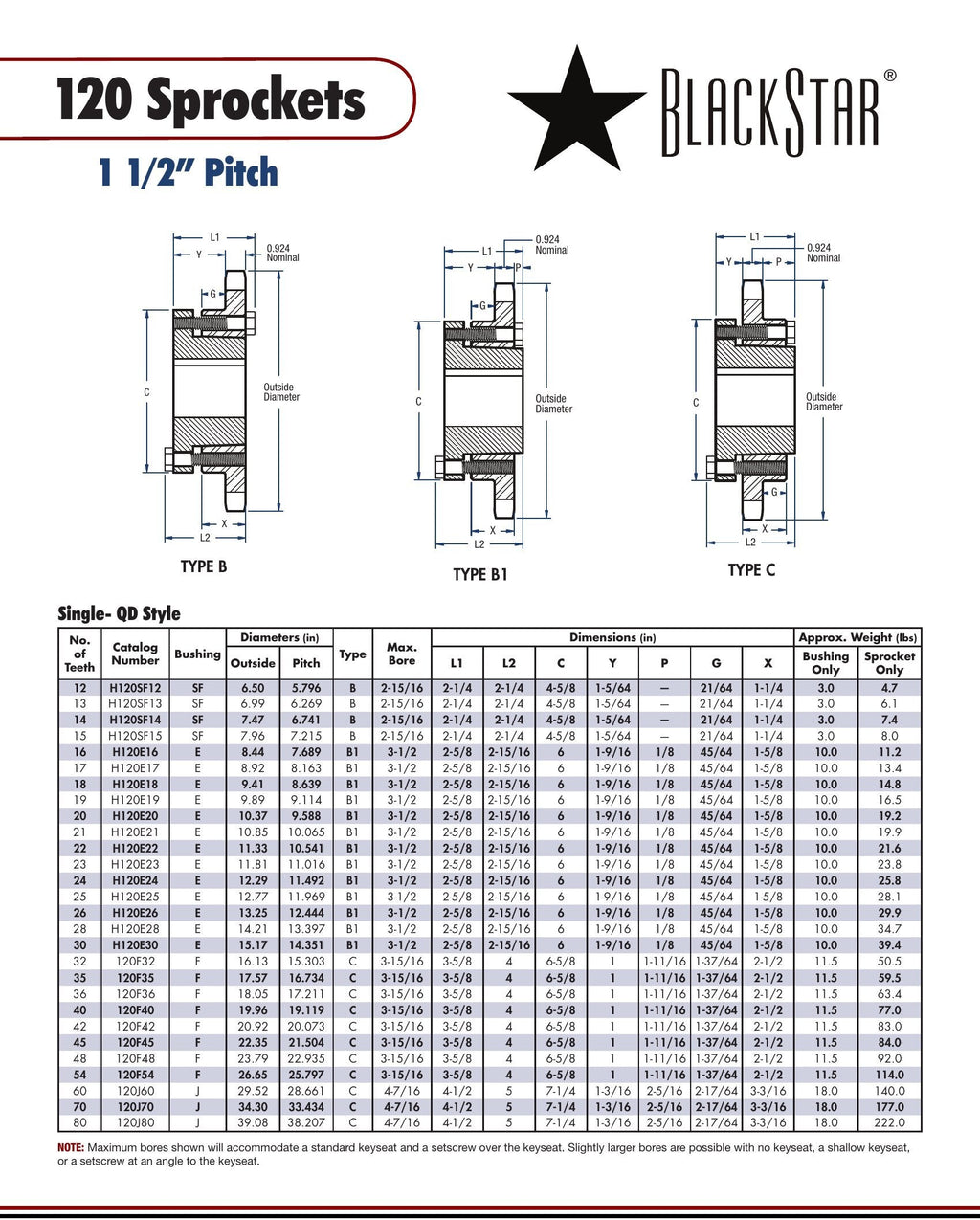

BlackStar 120SF14 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

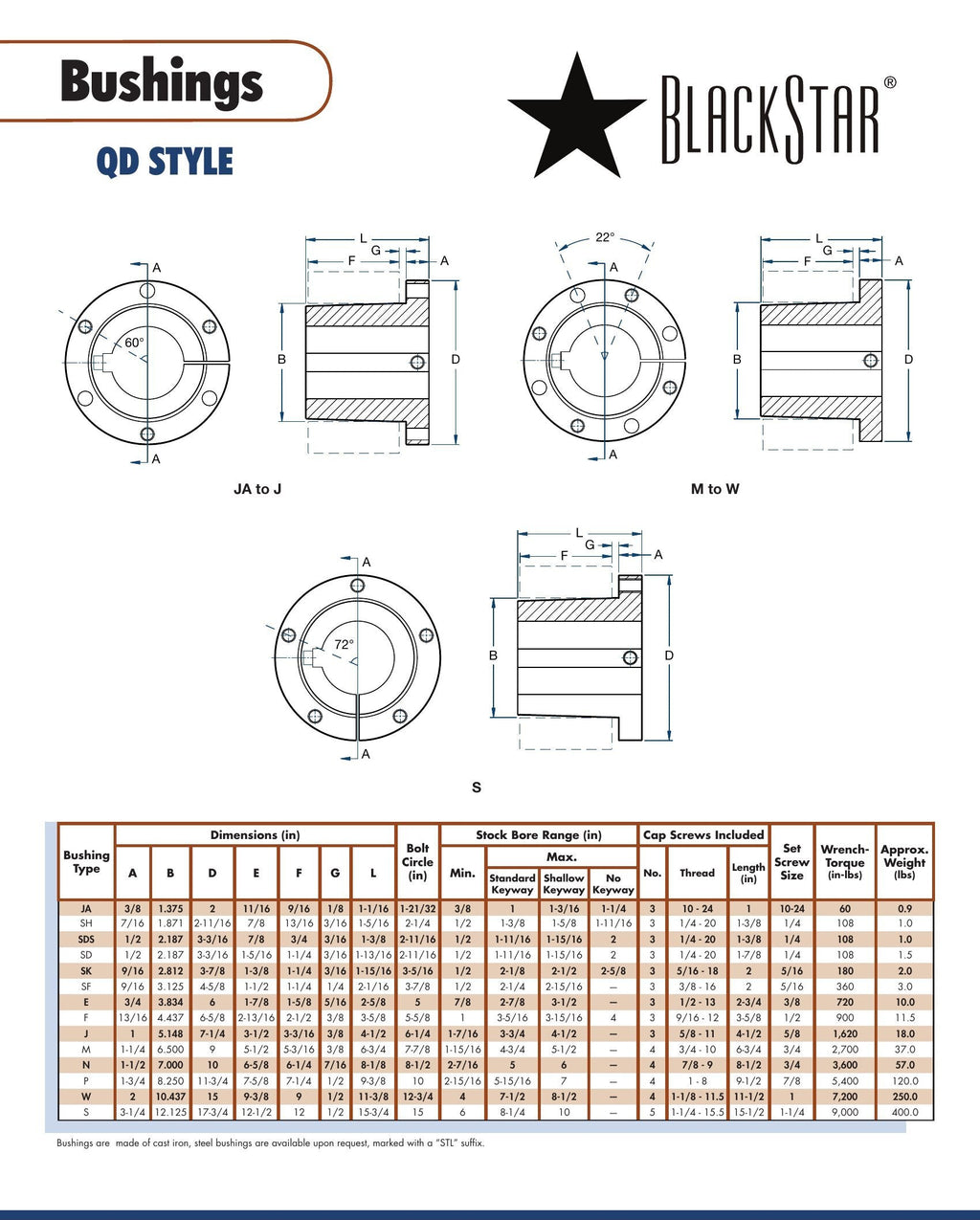

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning 120SF14, Martin 120SF14
