BlackStar 35JA32 - 35 Pitch QD Sprocket - 32 Tooth


Price:
$ 32.56

Description

The BlackStar 35JA32 is a 35 pitch QD roller chain sprocket with 32 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type JA Bushing (sold separately).

Specifications
Part Number 35JA32
Chain Pitch 35
Number of Teeth 32
Maximum Bore 1-1/4"
Bore Type QD
Hub Style QD
Bushing Required QD Type JA Bushing
Strand Count Single
Material Steel
Outside Diameter 4.03"
Pitch Diameter 3.826"
Approx. Weight 0.8 lbs

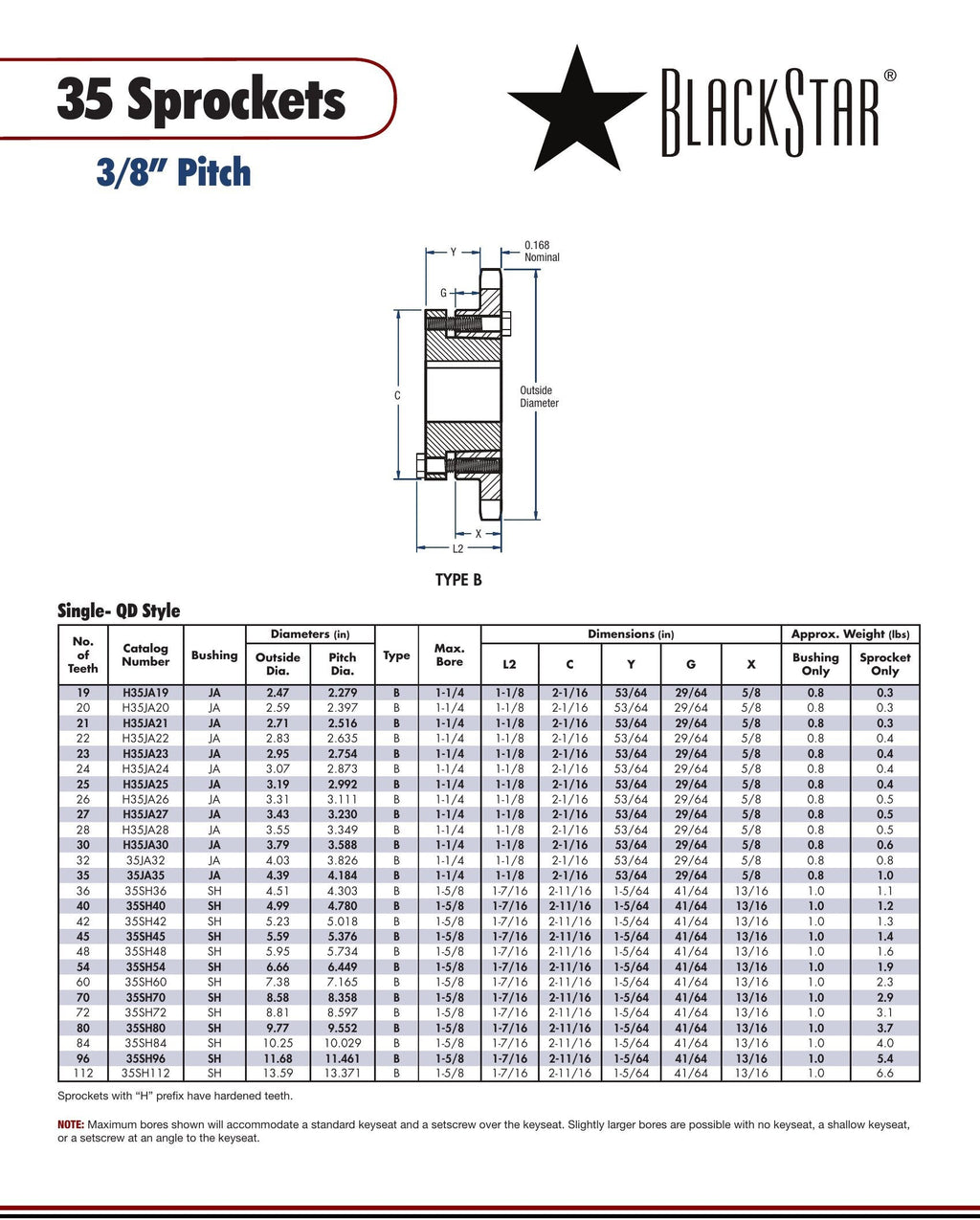

BlackStar 35JA32 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type JA Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type JA Bushing Spec Sheet

Cross-references: Browning 35JA32, Martin 35JA32
