Description
The BlackStar 40BTL48 (1610) is a 40 pitch Taper Lock roller chain sprocket with 48 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket has a (1610)" bore and is ready for immediate installation. This sprocket requires a Taper Lock Bushing (sold separately).

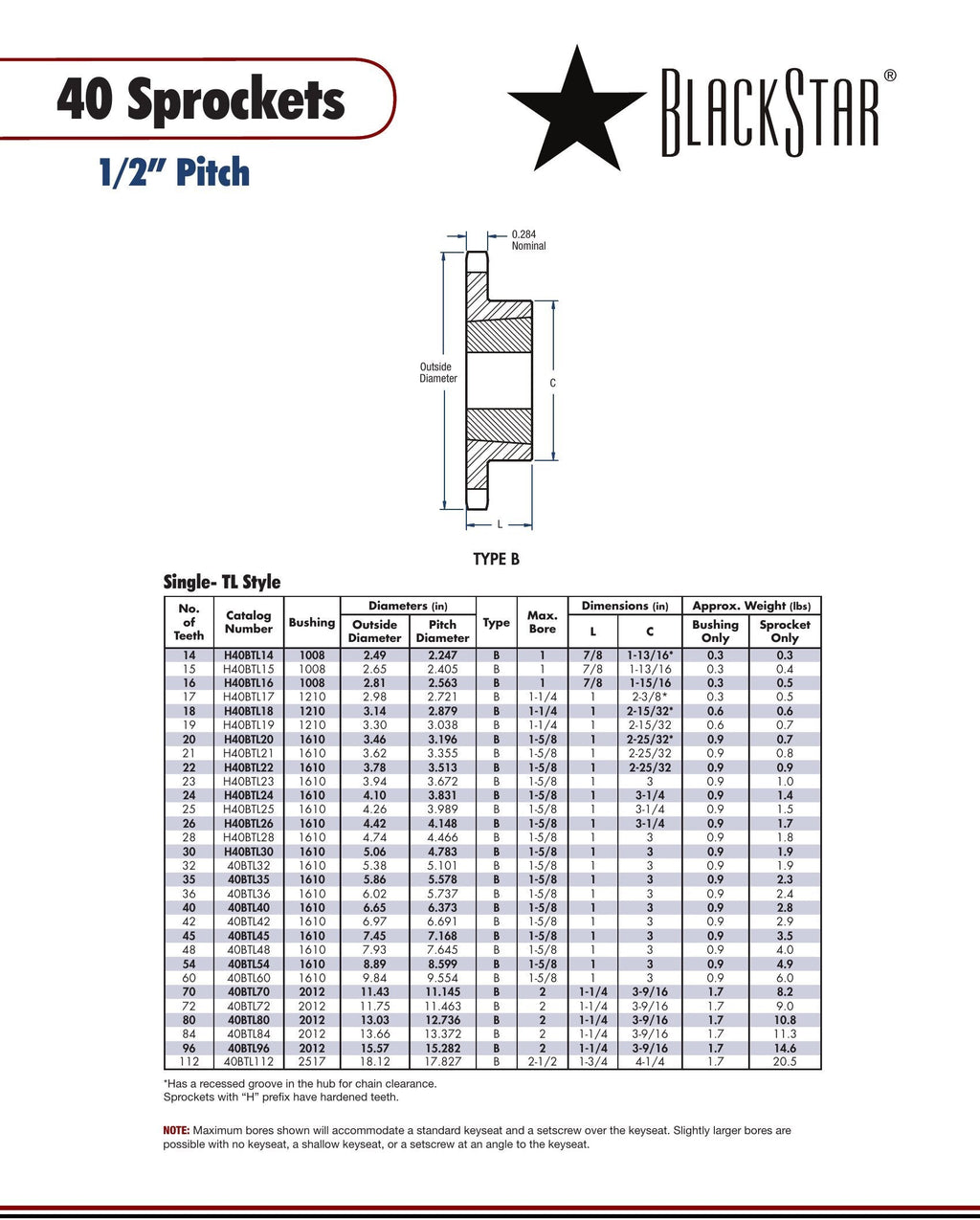

| Specifications | |
|---|---|
| Part Number | 40BTL48 (1610) |
| Chain Pitch | 40 |
| Number of Teeth | 48 |
| Bore Size | (1610)" |
| Bore Type | Taper Lock |
| Hub Style | Taper Lock |
| Bushing Required | Taper Lock Bushing |
| Strand Count | Single |
| Material | Steel |
| Outside Diameter | 7.93" |
| Pitch Diameter | 7.645" |
| Approx. Weight | 4.0 lbs |

Bushing Required
This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Martin 40TB48, Browning 40TB48
Compatible Components
Matched Roller Chain
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
Compatible Bushings
- Bando TL1610 1 1/2 TL BORE 1 1/2 (1.500) Taper-Lock Bushing - TL1610, 1 1/2" Bore
- Bando TL1610 1 1/4 TL BORE 1 1/4 (1.250) Taper-Lock Bushing - TL1610, 1 1/4" Bore
- Bando TL1610 1 1/8 TL BORE 1 1/8 (1.125) Taper-Lock Bushing - TL1610, 1 1/8" Bore
- Bando TL1610 1 3/8 TL BORE 1 3/8 (1.375) Taper-Lock Bushing - TL1610, 1 3/8" Bore
Matched Roller Chain
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
Compatible Bushings
- Bando TL1610 1 1/2 TL BORE 1 1/2 (1.500) Taper-Lock Bushing - TL1610, 1 1/2" Bore
- Bando TL1610 1 1/4 TL BORE 1 1/4 (1.250) Taper-Lock Bushing - TL1610, 1 1/4" Bore
- Bando TL1610 1 1/8 TL BORE 1 1/8 (1.125) Taper-Lock Bushing - TL1610, 1 1/8" Bore
- Bando TL1610 1 3/8 TL BORE 1 3/8 (1.375) Taper-Lock Bushing - TL1610, 1 3/8" Bore
Matched Roller Chain
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 COTT 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
- Lynx HD40 RIV 10' - Roller Chain 10ft Reel
Compatible Bushings
- Bando TL1610 1 1/2 TL BORE 1 1/2 (1.500) Taper-Lock Bushing - TL1610, 1 1/2" Bore
- Bando TL1610 1 1/4 TL BORE 1 1/4 (1.250) Taper-Lock Bushing - TL1610, 1 1/4" Bore
- Bando TL1610 1 1/8 TL BORE 1 1/8 (1.125) Taper-Lock Bushing - TL1610, 1 1/8" Bore
- Bando TL1610 1 3/8 TL BORE 1 3/8 (1.375) Taper-Lock Bushing - TL1610, 1 3/8" Bore
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
