BlackStar 5B124SF - QD Sheave


Price:
$ 234.39

Description

The BlackStar 5B124SF is a 5-groove qd sheave for B-section belts, manufactured from cast iron. Requires a QD Type SF Bushing (sold separately) to mount to your shaft.

Specifications
Part Number 5B124SF
Product Type QD Sheave
Number of Grooves 5
Belt Profile B
Outside Diameter 12.75"
Material Cast Iron
Approx. Weight 34.000 lbs
Bushing Required QD Type SF Bushing
Pitch Diameter 12.4"
Compatible Belts A, B, 4L, 5L

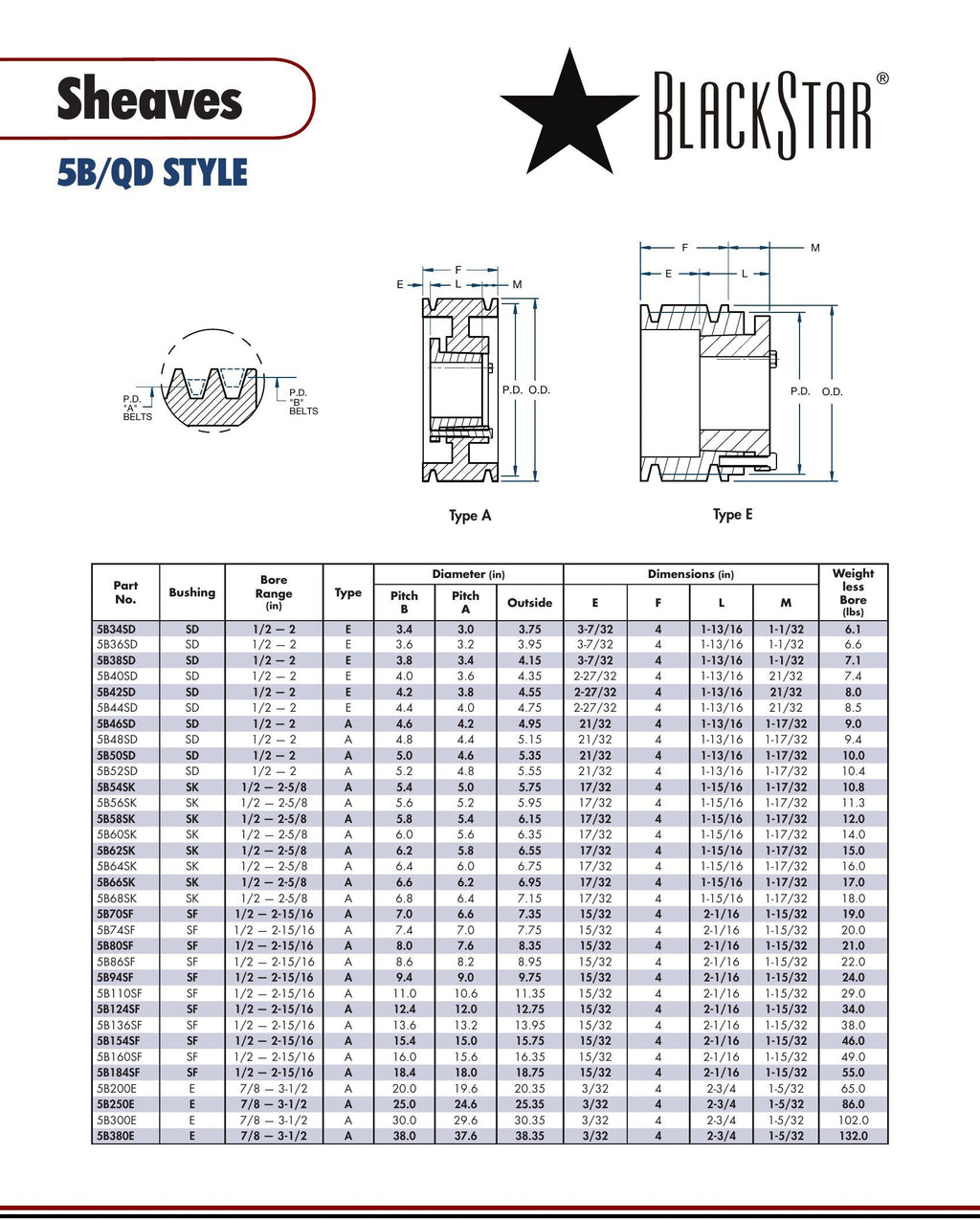

BlackStar 5B124SF Spec Sheet

Bushing Required

This sheave requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and finished to your exact bore size.

Shop Bushings

Cross-references: Browning 5B124SF, Martin 5B124SF, Maska 5B124SF
