BlackStar 5B160SF - QD Sheave


Price:
$ 331.30

Description

The BlackStar 5B160SF is a 5-groove qd sheave for B-section belts, manufactured from cast iron. Requires a QD Type SF Bushing (sold separately) to mount to your shaft.

Specifications
Part Number 5B160SF
Product Type QD Sheave
Number of Grooves 5
Belt Profile B
Outside Diameter 16.35"
Material Cast Iron
Approx. Weight 49.000 lbs
Bushing Required QD Type SF Bushing
Pitch Diameter 16.0"
Compatible Belts A, B, 4L, 5L

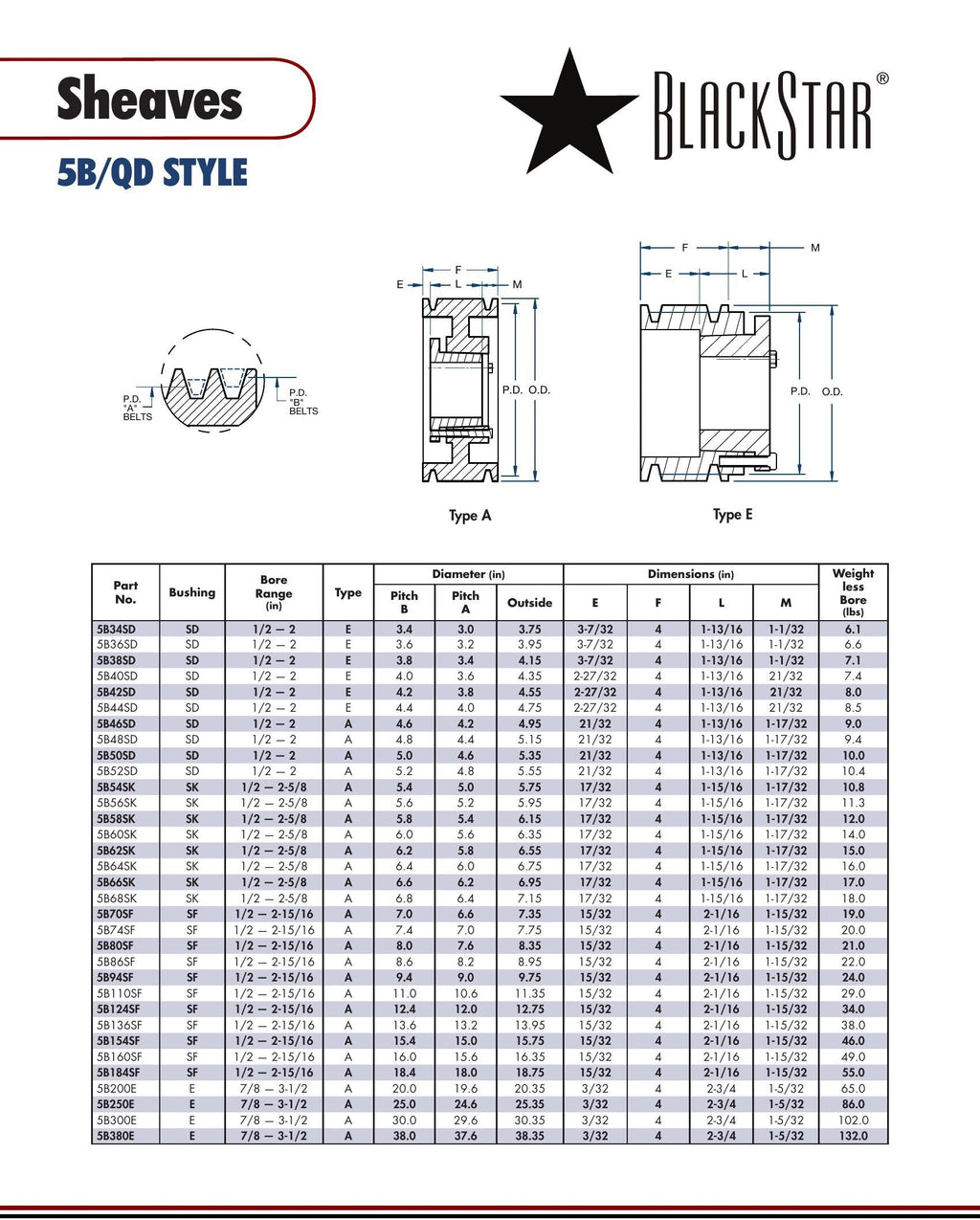

BlackStar 5B160SF Spec Sheet

Bushing Required

This sheave requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and finished to your exact bore size.

Shop Bushings

Cross-references: Browning 5B160SF, Martin 5B160SF, Maska 5B160SF
