BlackStar 5B70SF - QD Sheave


Price:
$ 140.48

Description

The BlackStar 5B70SF is a 5-groove qd sheave for B-section belts, manufactured from cast iron. Requires a QD Type SF Bushing (sold separately) to mount to your shaft.

Specifications
Part Number 5B70SF
Product Type QD Sheave
Number of Grooves 5
Belt Profile B
Outside Diameter 7.35"
Material Cast Iron
Approx. Weight 19.000 lbs
Bushing Required QD Type SF Bushing
Pitch Diameter 7.0"
Compatible Belts A, B, 4L, 5L

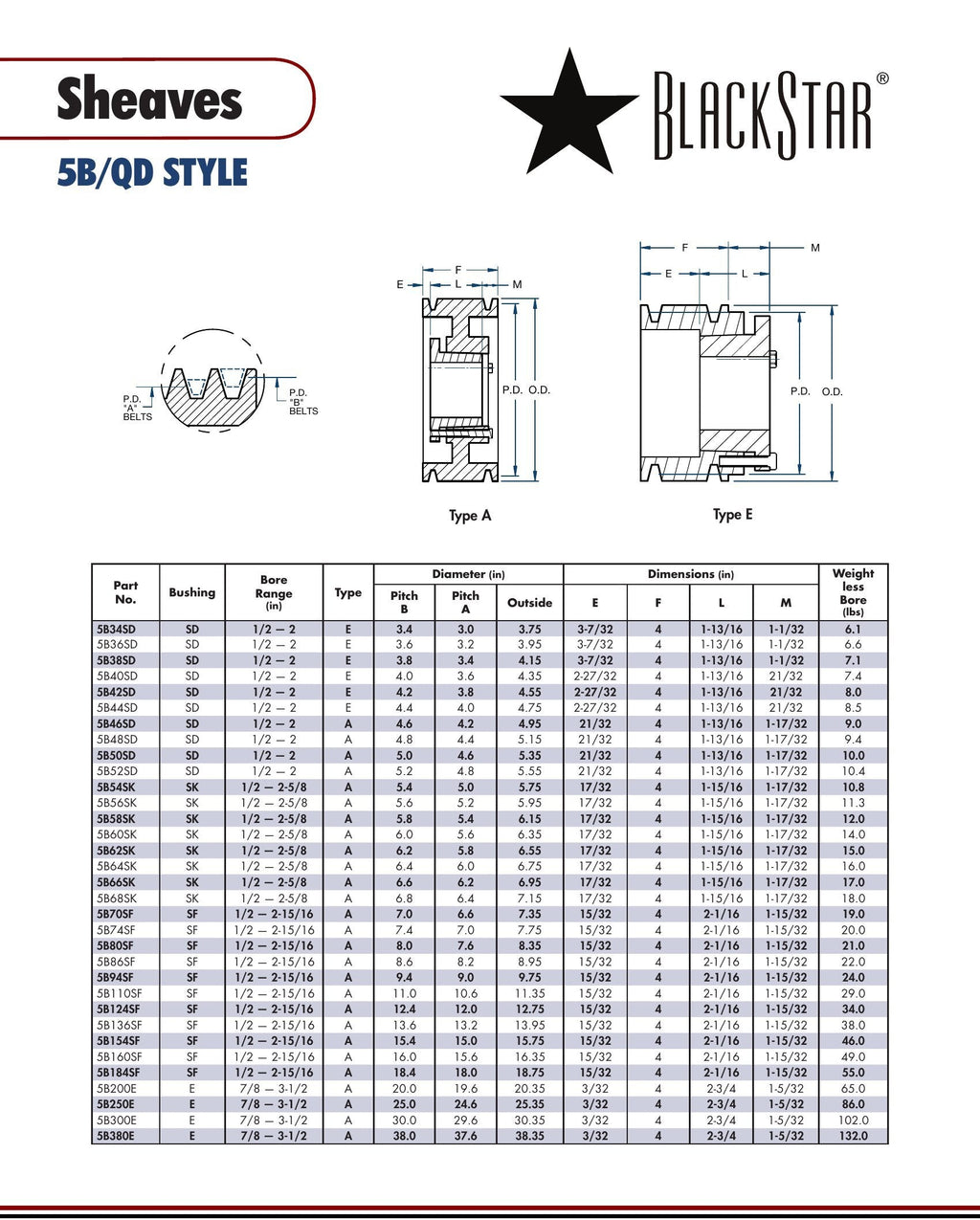

BlackStar 5B70SF Spec Sheet

Bushing Required

This sheave requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and finished to your exact bore size.

Shop Bushings

Cross-references: Browning 5B70SF, Martin 5B70SF, Maska 5B70SF
