BlackStar 5B86SF STL - QD Sheave


Price:
$ 174.54

Description

The BlackStar 5B86SF STL is a 5-groove qd sheave for B-section belts, manufactured from cast iron. Requires a QD Type SF Bushing (sold separately) to mount to your shaft.

Specifications
Part Number 5B86SF STL
Product Type QD Sheave
Number of Grooves 5
Belt Profile B
Outside Diameter 8.95"
Material Cast Iron
Approx. Weight 24.200 lbs
Bushing Required QD Type SF Bushing
Pitch Diameter 8.6"
Compatible Belts A, B, 4L, 5L

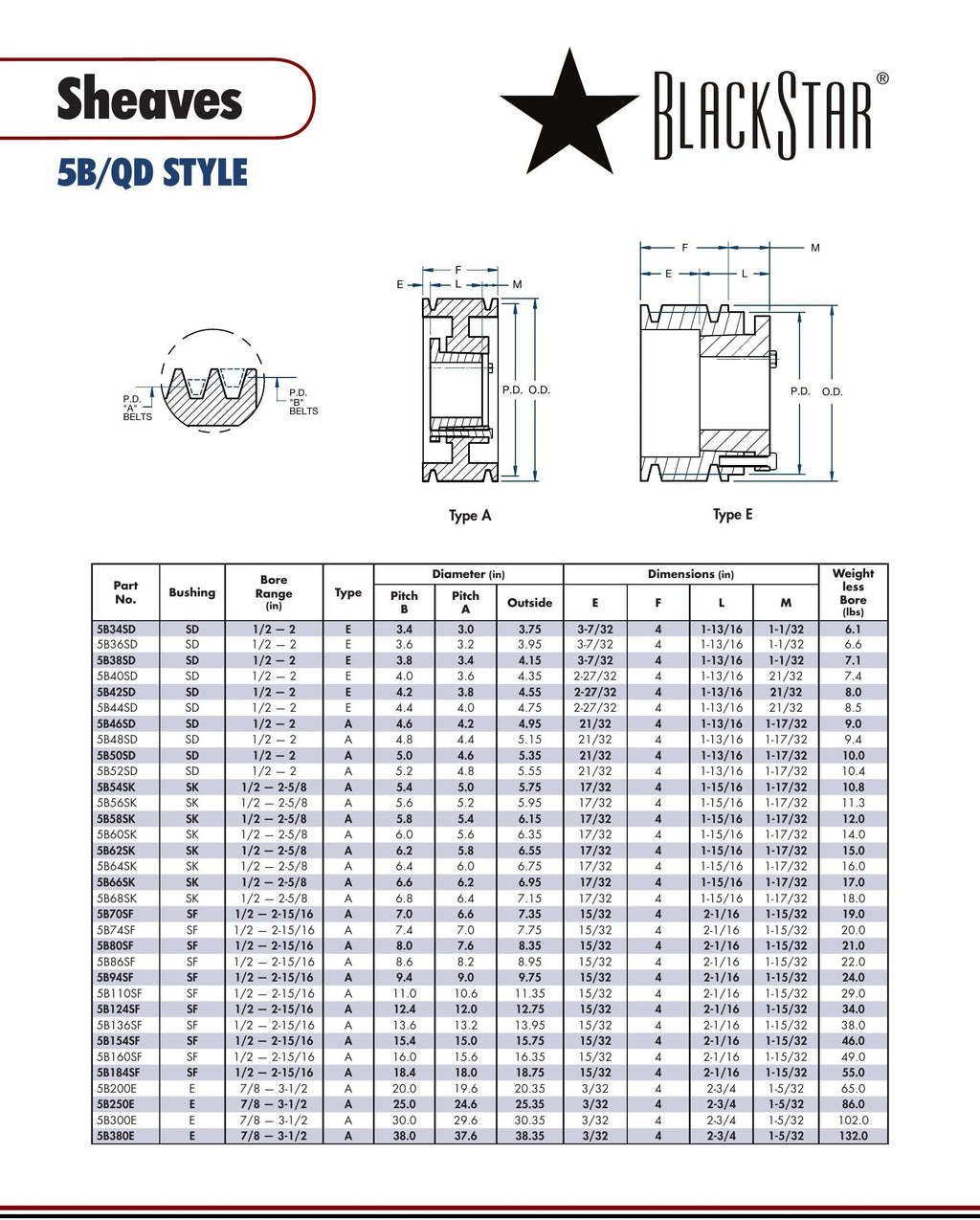

BlackStar 5B86SF STL Spec Sheet

Bushing Required

This sheave requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and finished to your exact bore size.

Shop Bushings

Cross-references: Browning 5B86SF STL, Martin 5B86SF STL, Maska 5B86SF STL
