Description

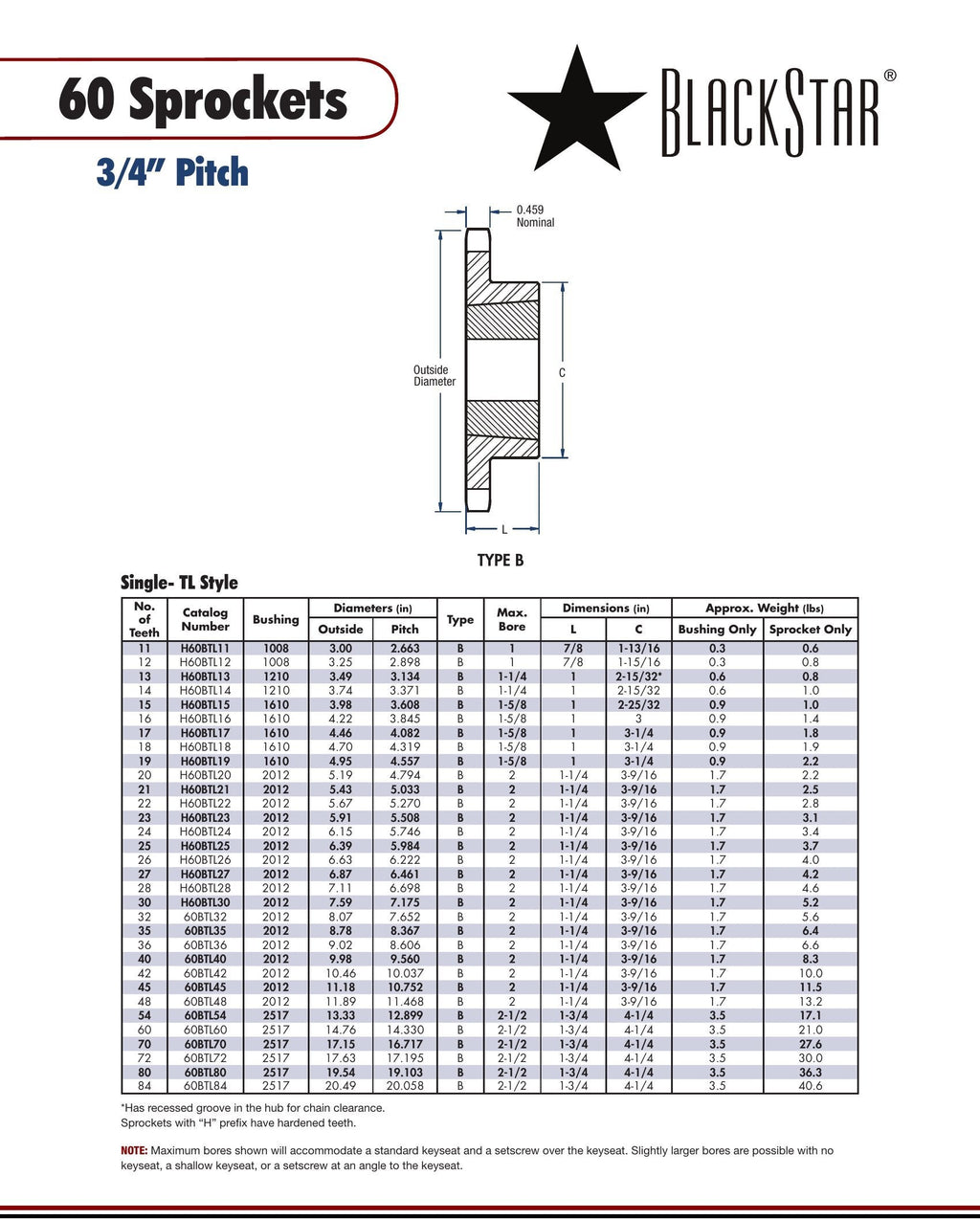

The BlackStar 60BTL52 (2517) is a 60 pitch Taper Lock roller chain sprocket with 52 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket has a (2517)" bore and is ready for immediate installation. This sprocket requires a Taper Lock Bushing (sold separately).
| Specifications | |
|---|---|
| Part Number | 60BTL52 (2517) |
| Chain Pitch | 60 |
| Number of Teeth | 52 |
| Bore Size | (2517)" |
| Bore Type | Taper Lock |
| Hub Style | Taper Lock |
| Bushing Required | Taper Lock Bushing |
| Strand Count | Single |
| Material | Steel |
| Approx. Weight | 18.582 lbs |

Bushing Required
This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Cross-references: Martin 60TB52, Browning 60TB52
