BlackStar 80BTL60 - 80 Pitch Taper Lock Sprocket - 60 Tooth


Price:
$ 392.20

Description

The BlackStar 80BTL60 is a 80 pitch Taper Lock roller chain sprocket with 60 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number 80BTL60
Chain Pitch 80
Number of Teeth 60
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Outside Diameter 19.68"
Pitch Diameter 19.107"
Approx. Weight 45.0 lbs

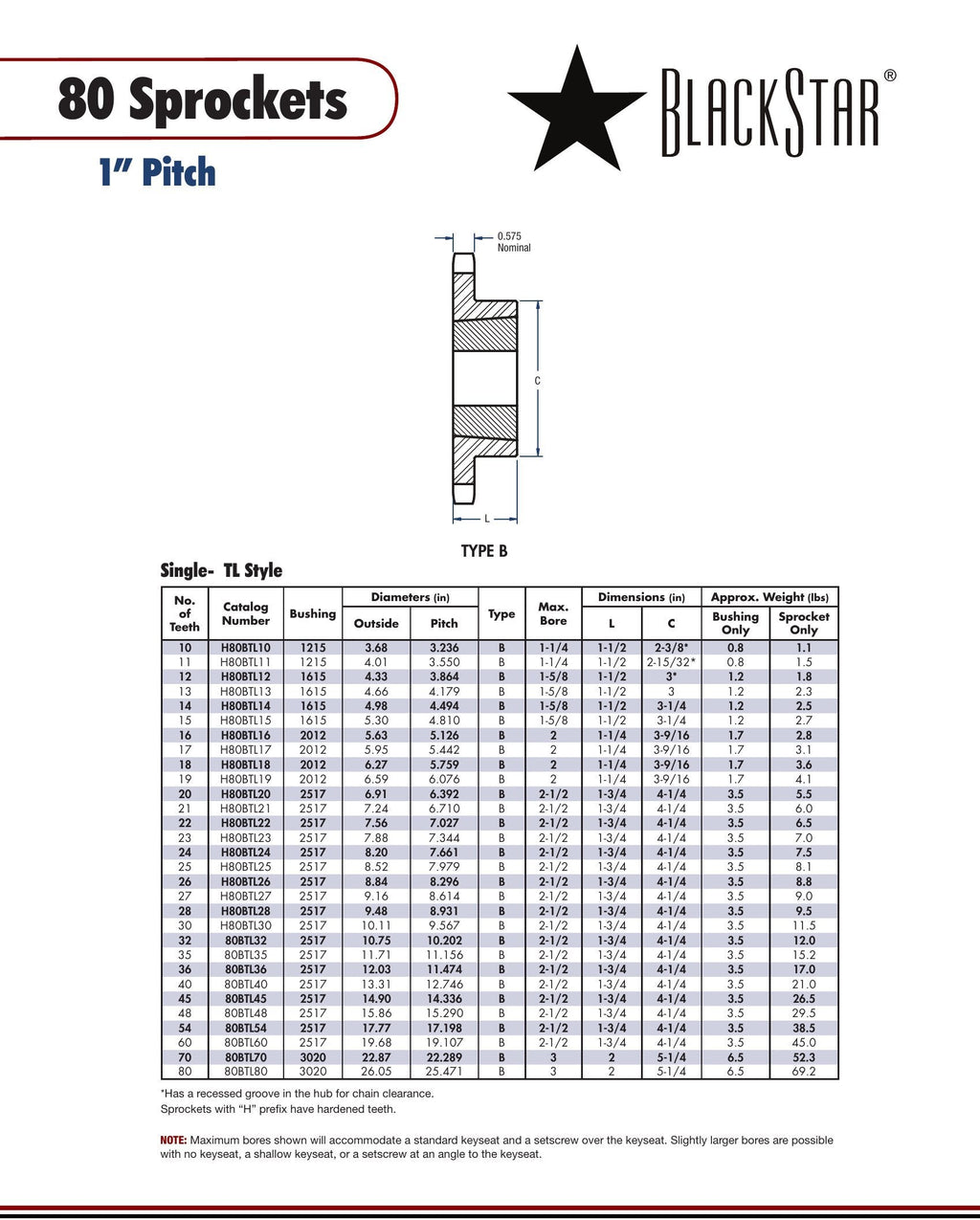

BlackStar 80BTL60 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 80TB60, Browning 80TB60
