BlackStar 80E72 - 80 Pitch QD Sprocket - 72 Tooth


Price:
$ 537.03

Description

The BlackStar 80E72 is a 80 pitch QD roller chain sprocket with 72 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 80E72
Chain Pitch 80
Number of Teeth 72
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 23.50"
Pitch Diameter 22.926"
Approx. Weight 59.3 lbs

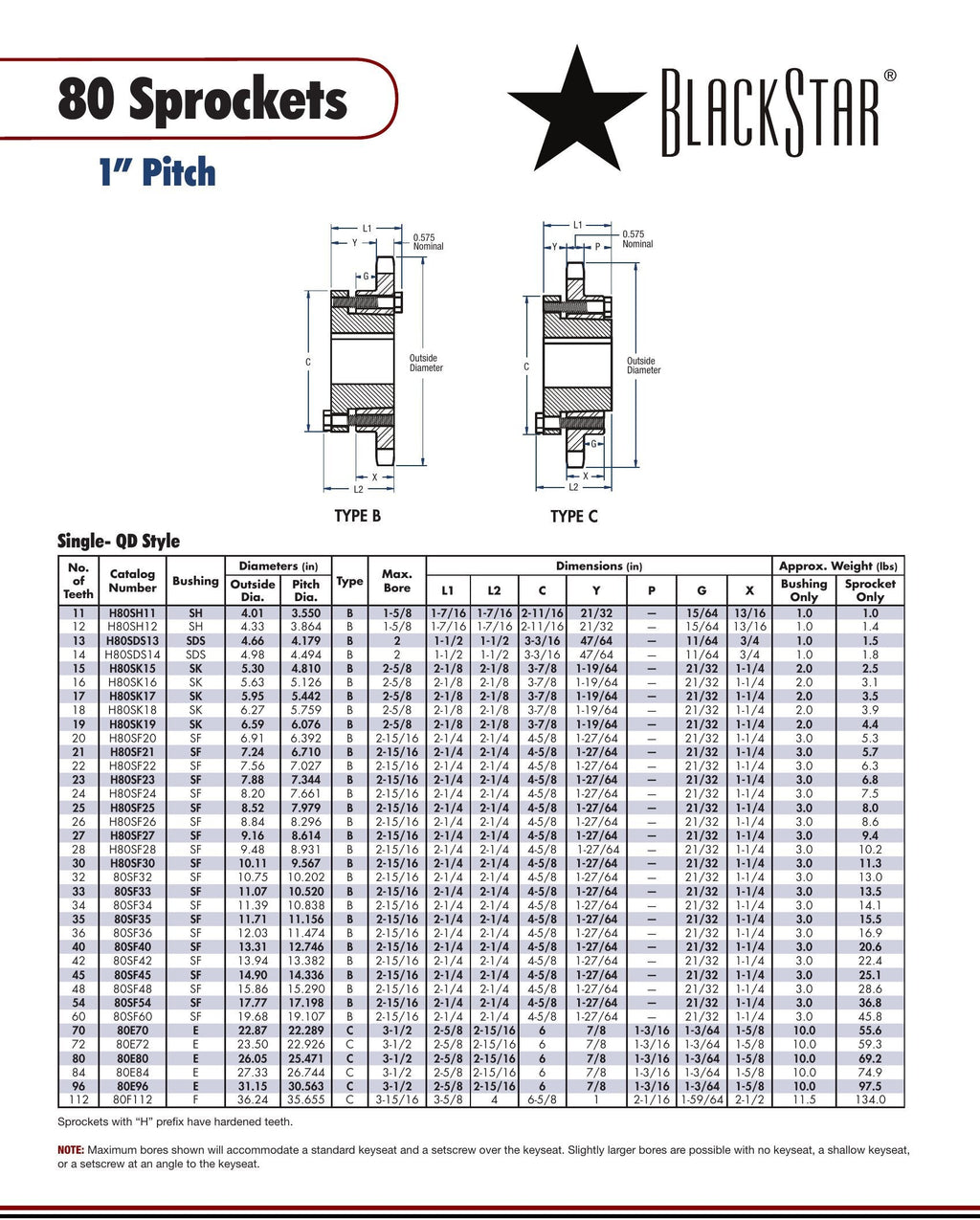

BlackStar 80E72 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 80E72, Martin 80E72
