BlackStar 80E96 - 80 Pitch QD Sprocket - 96 Tooth


Price:
$ 830.57

Description

The BlackStar 80E96 is a 80 pitch QD roller chain sprocket with 96 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 80E96
Chain Pitch 80
Number of Teeth 96
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 31.15"
Pitch Diameter 30.563"
Approx. Weight 97.5 lbs

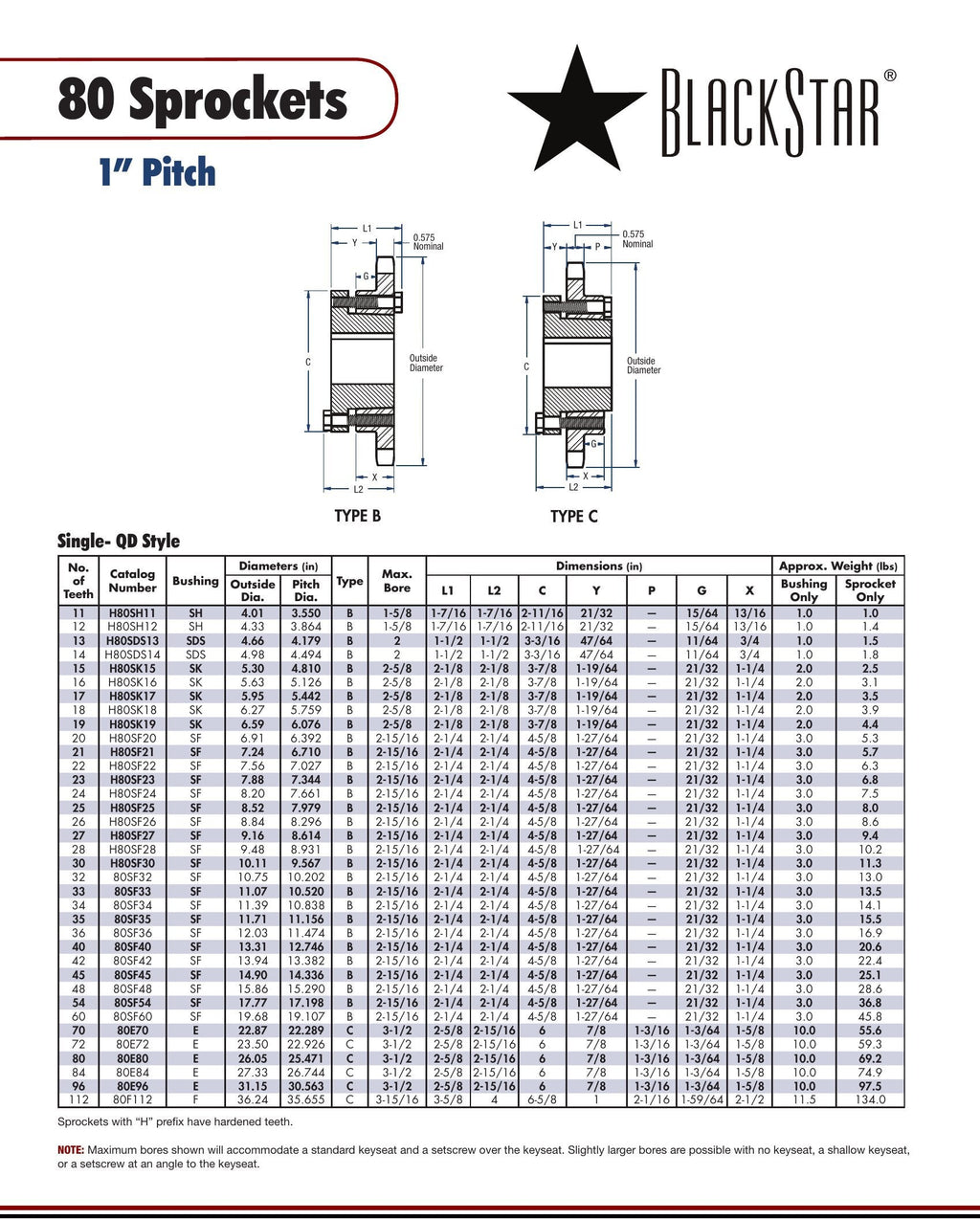

BlackStar 80E96 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 80E96, Martin 80E96
