BlackStar D40ATL16H - Double Strand 40 Pitch Taper Lock Sprocket - 16 Tooth


Price:
$ 29.16

Description

The BlackStar D40ATL16H is a 40 pitch double strand Taper Lock roller chain sprocket with 16 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D40ATL16H
Chain Pitch 40
Number of Teeth 16
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 2.81"
Pitch Diameter 2.563"
Approx. Weight 0.600 lbs

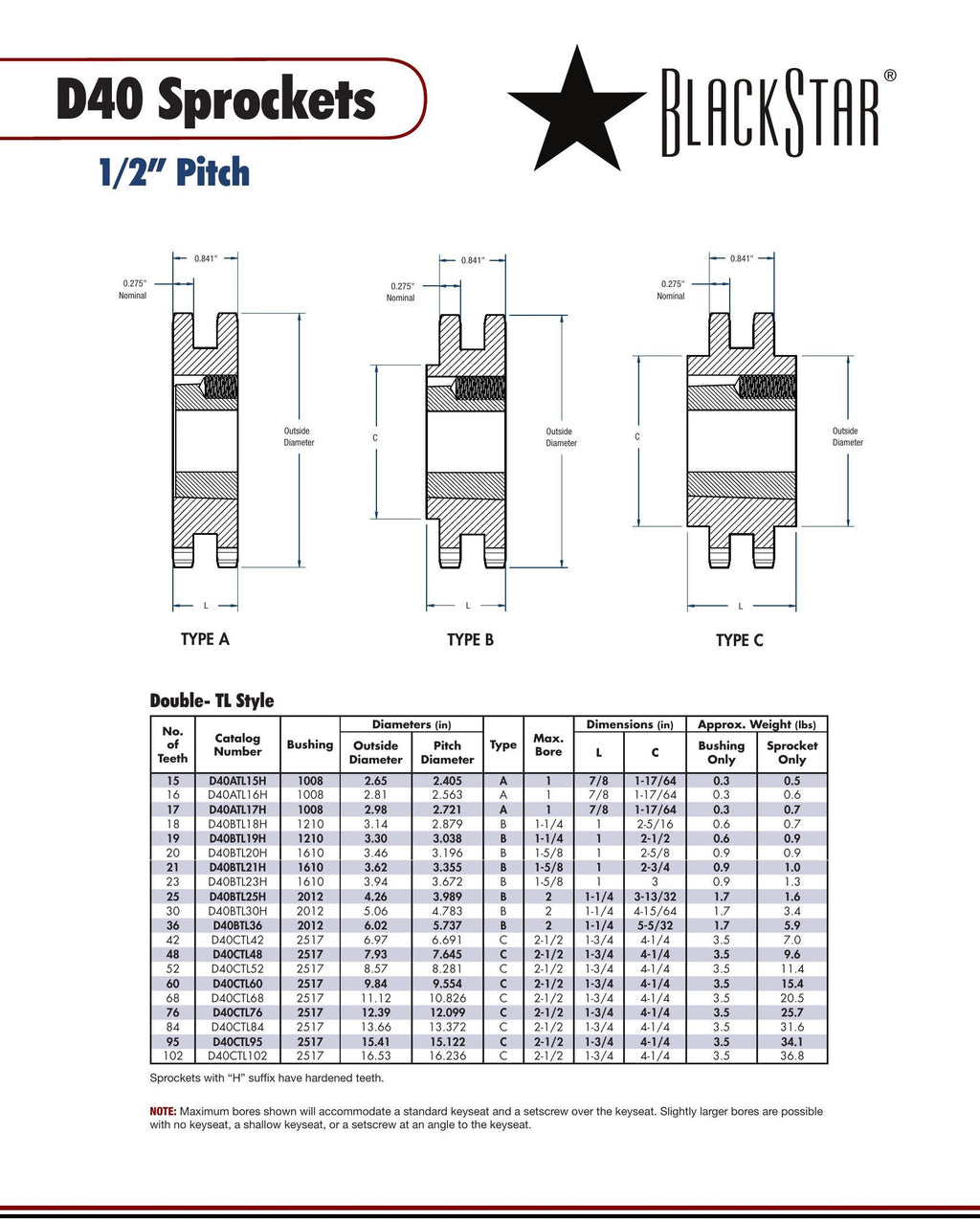

BlackStar D40ATL16H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D40TB16, Browning D40TB16
