BlackStar D40CTL102 - Double Strand 40 Pitch Taper Lock Sprocket - 102 Tooth


Price:
$ 417.47

Description

The BlackStar D40CTL102 is a 40 pitch double strand Taper Lock roller chain sprocket with 102 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D40CTL102
Chain Pitch 40
Number of Teeth 102
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 16.53"
Pitch Diameter 16.236"
Approx. Weight 36.8 lbs

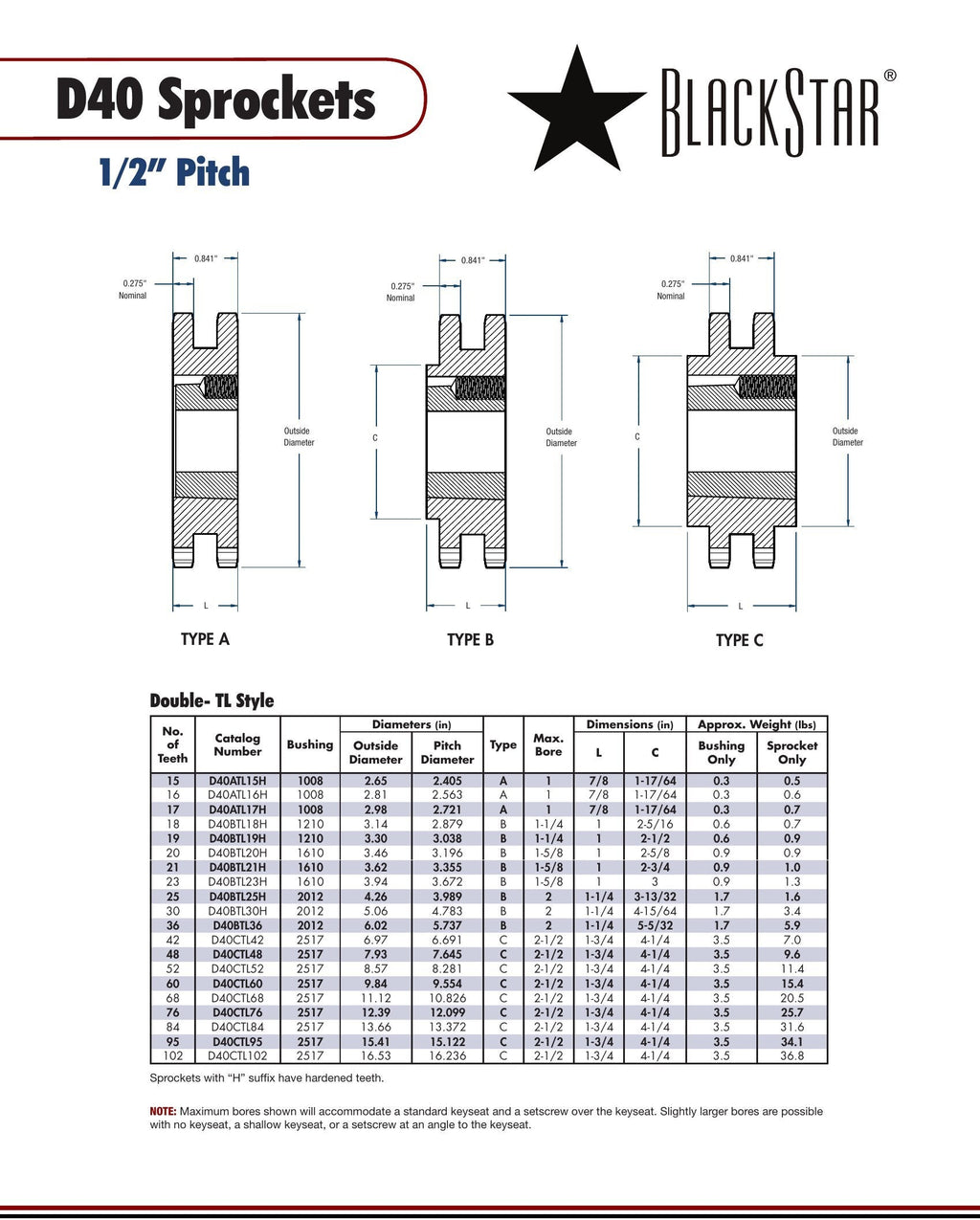

BlackStar D40CTL102 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D40TB102, Browning D40TB102
