BlackStar D40CTL68 - Double Strand 40 Pitch Taper Lock Sprocket - 68 Tooth


Price:
$ 200.23

Description

The BlackStar D40CTL68 is a 40 pitch double strand Taper Lock roller chain sprocket with 68 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D40CTL68
Chain Pitch 40
Number of Teeth 68
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 11.12"
Pitch Diameter 10.826"
Approx. Weight 20.5 lbs

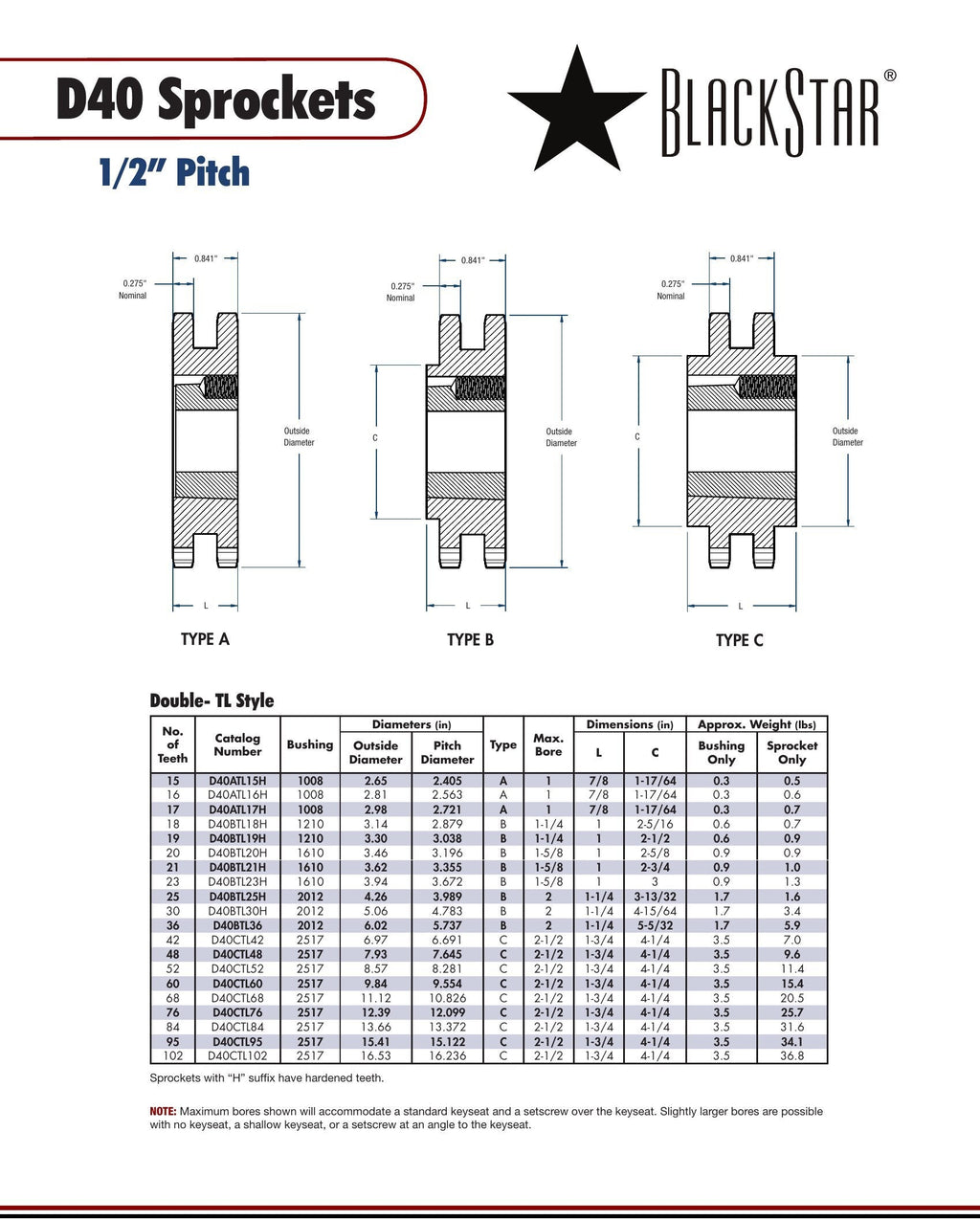

BlackStar D40CTL68 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D40TB68, Browning D40TB68
