BlackStar D40CTL76 - Double Strand 40 Pitch Taper Lock Sprocket - 76 Tooth


Price:
$ 239.60

Description

The BlackStar D40CTL76 is a 40 pitch double strand Taper Lock roller chain sprocket with 76 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D40CTL76
Chain Pitch 40
Number of Teeth 76
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 12.39"
Pitch Diameter 12.099"
Approx. Weight 25.7 lbs

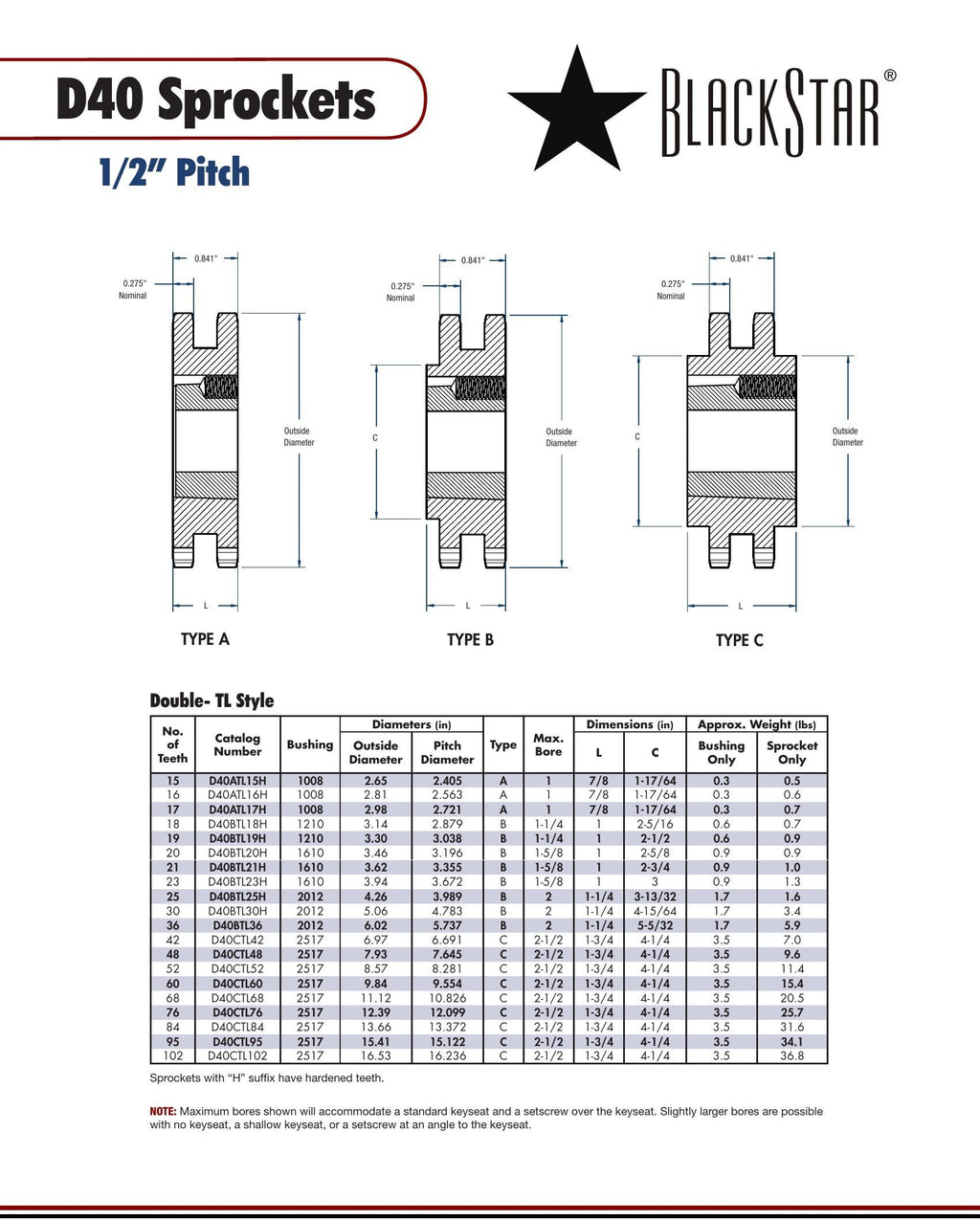

BlackStar D40CTL76 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D40TB76, Browning D40TB76
