BlackStar D40SF72 - Double Strand 40 Pitch QD Sprocket - 72 Tooth


Price:
$ 220.16

Description

The BlackStar D40SF72 is a 40 pitch double strand QD roller chain sprocket with 72 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number D40SF72
Chain Pitch 40
Number of Teeth 72
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Double
Material Steel
Outside Diameter 11.75"
Pitch Diameter 11.463"
Approx. Weight 22.2 lbs

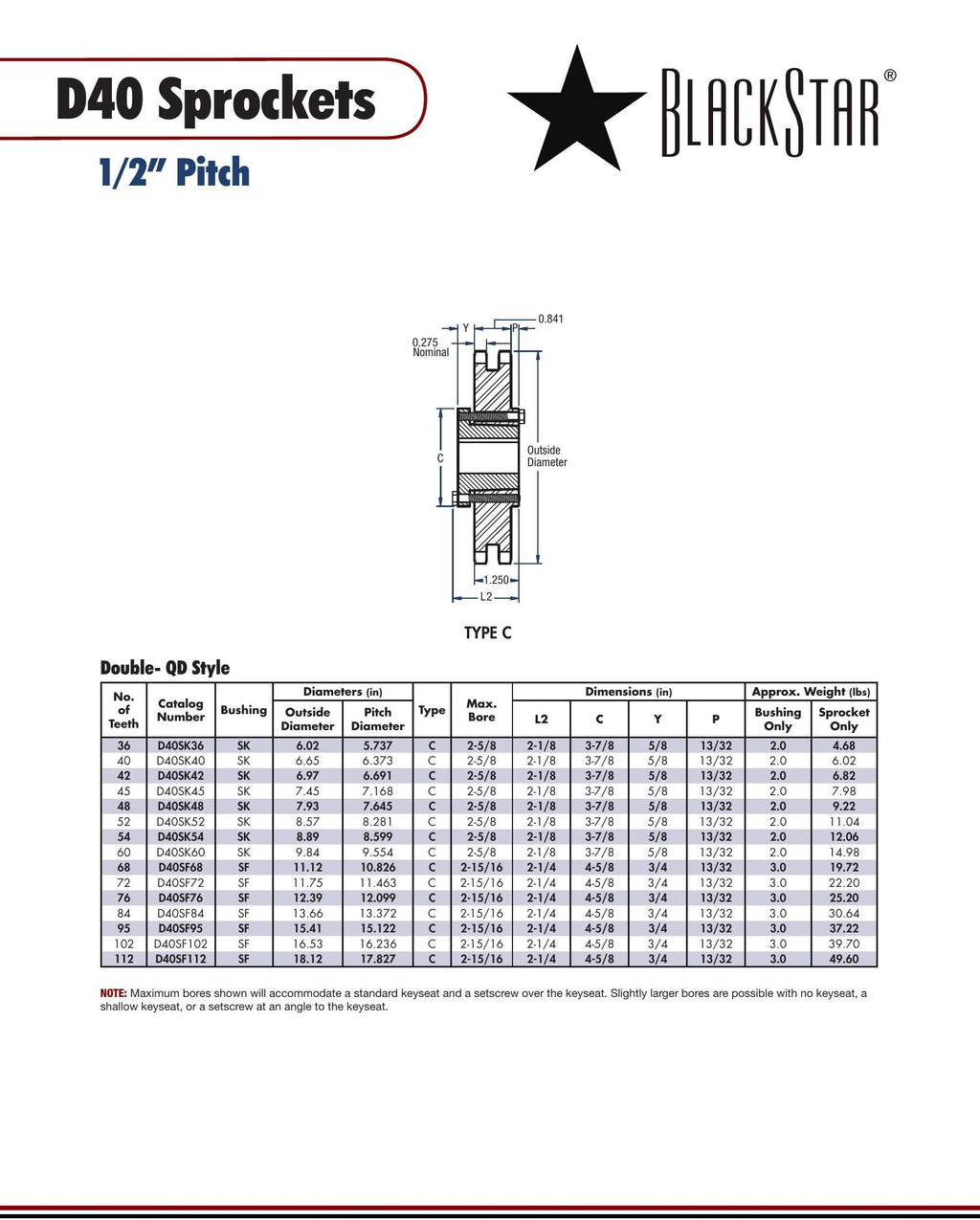

BlackStar D40SF72 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning D40SF72, Martin D40SF72
