BlackStar D40SF76 - Double Strand 40 Pitch QD Sprocket - 76 Tooth


Price:
$ 237.17

Description

The BlackStar D40SF76 is a 40 pitch double strand QD roller chain sprocket with 76 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number D40SF76
Chain Pitch 40
Number of Teeth 76
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Double
Material Steel
Outside Diameter 12.39"
Pitch Diameter 12.099"
Approx. Weight 25.2 lbs

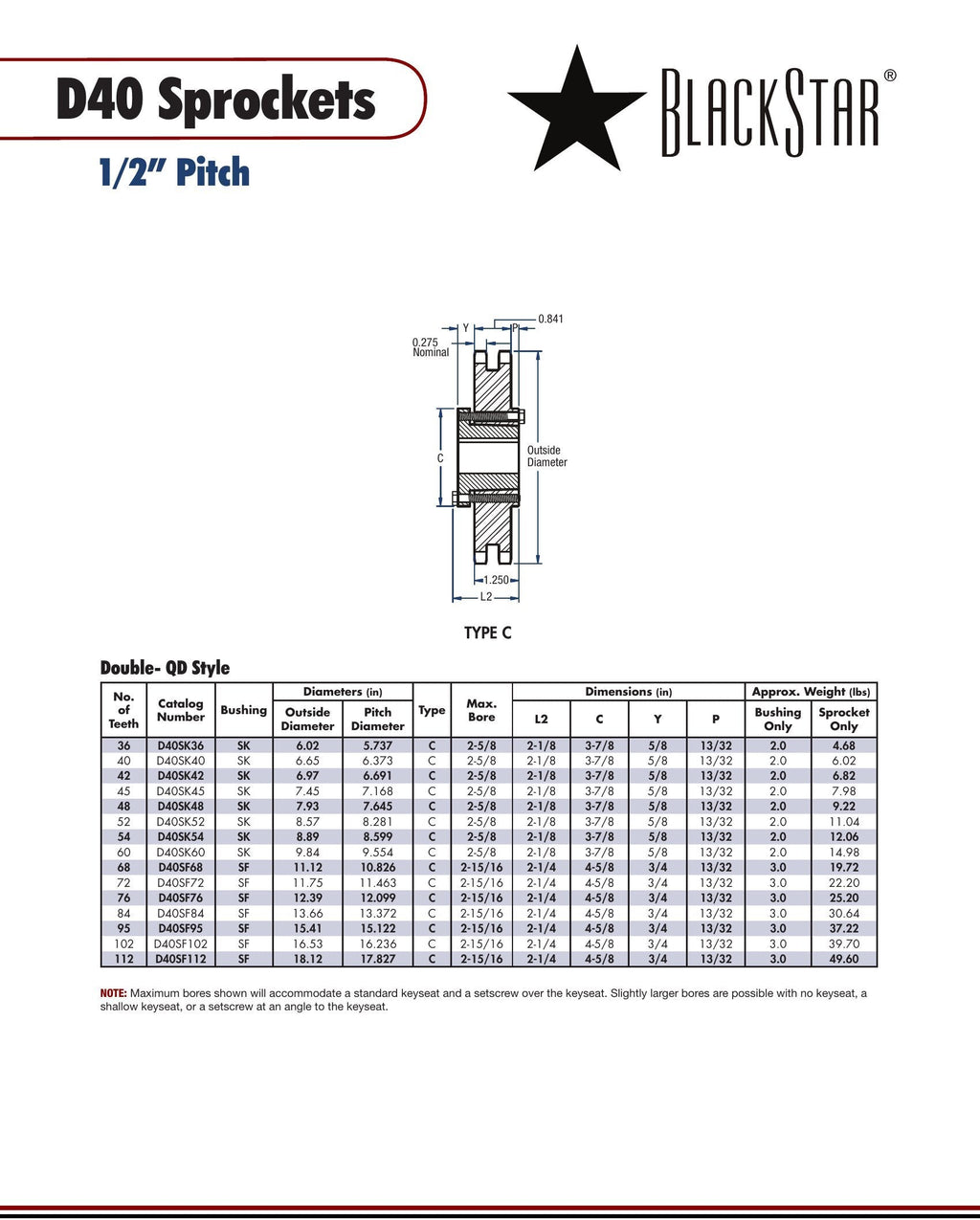

BlackStar D40SF76 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning D40SF76, Martin D40SF76
