BlackStar D60ATL18H - Double Strand 60 Pitch Taper Lock Sprocket - 18 Tooth


Price:
$ 47.14

Description

The BlackStar D60ATL18H is a 60 pitch double strand Taper Lock roller chain sprocket with 18 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number D60ATL18H
Chain Pitch 60
Number of Teeth 18
Bore Type Plain Bore
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Double
Material Steel
Outside Diameter 4.70"
Pitch Diameter 4.319"
Approx. Weight 2.400 lbs

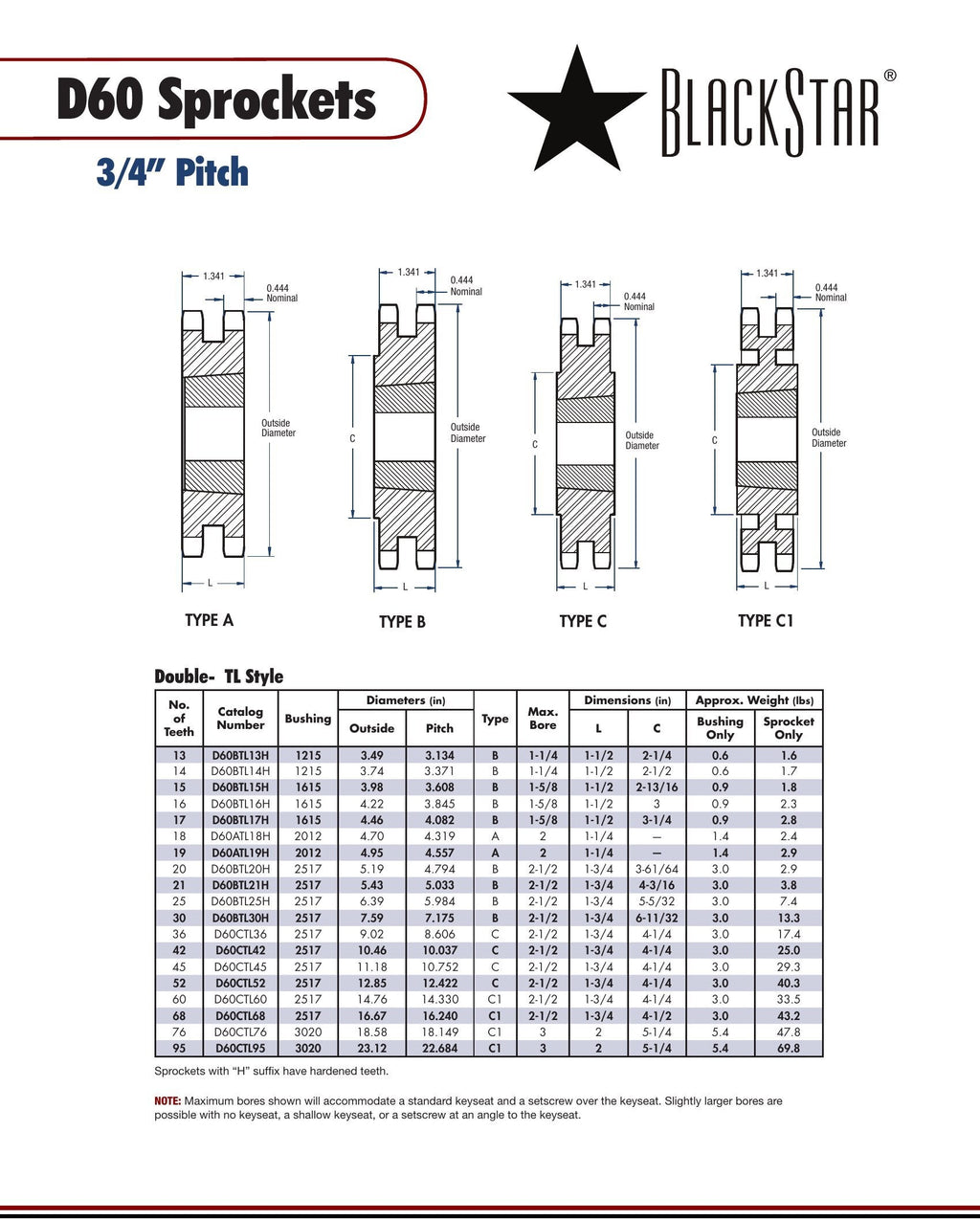

BlackStar D60ATL18H Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin D60TB18, Browning D60TB18
