BlackStar D60E76 - Double Strand 60 Pitch QD Sprocket - 76 Tooth


Price:
$ 638.60

Description

The BlackStar D60E76 is a 60 pitch double strand QD roller chain sprocket with 76 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number D60E76
Chain Pitch 60
Number of Teeth 76
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Double
Material Steel
Outside Diameter 18.58"
Pitch Diameter 18.149"
Approx. Weight 51.5 lbs

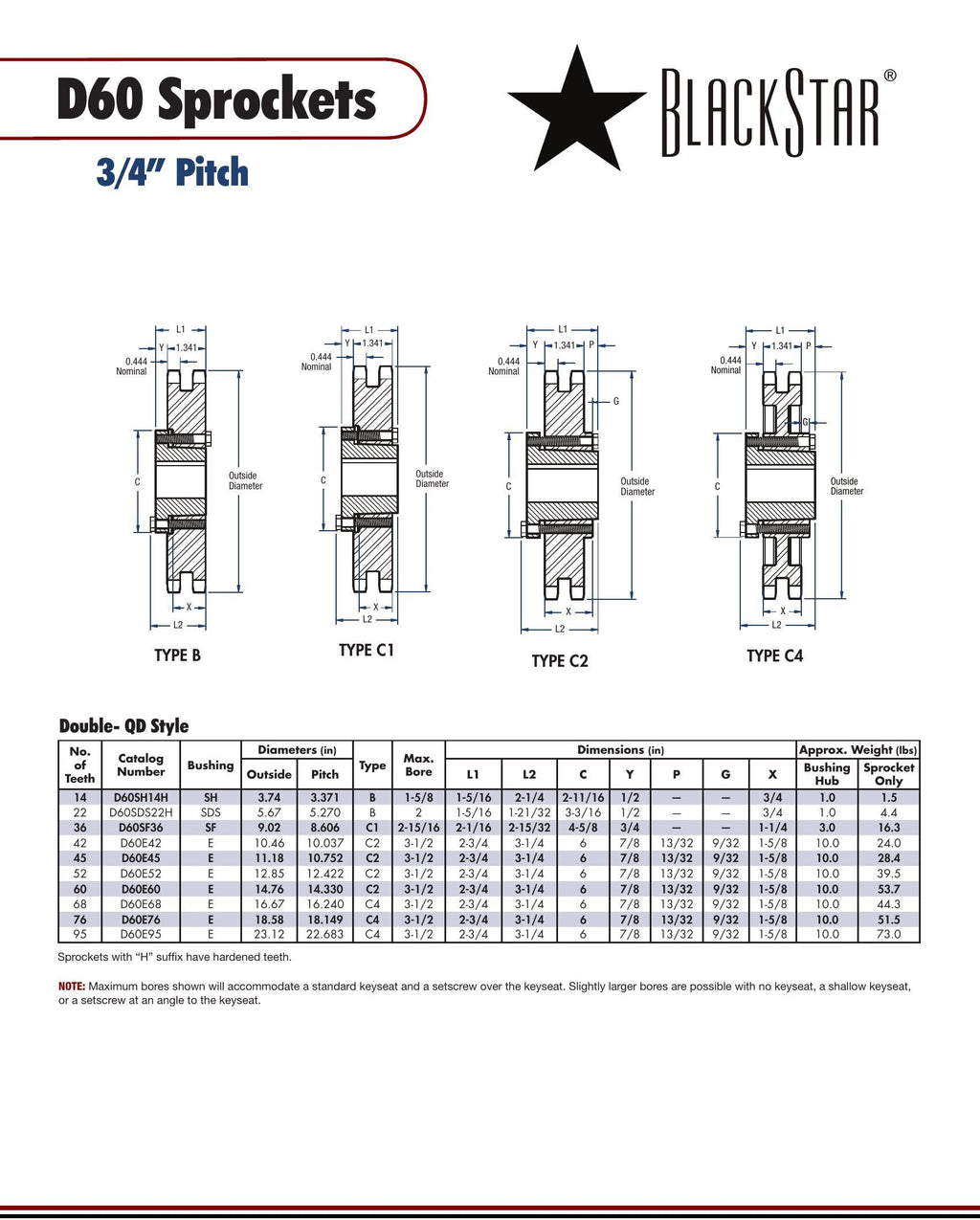

BlackStar D60E76 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning D60E76, Martin D60E76
