BlackStar D60SF36 - Double Strand 60 Pitch QD Sprocket - 36 Tooth


Price:
$ 149.69

Description

The BlackStar D60SF36 is a 60 pitch double strand QD roller chain sprocket with 36 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number D60SF36
Chain Pitch 60
Number of Teeth 36
Maximum Bore 2-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Double
Material Steel
Outside Diameter 9.02"
Pitch Diameter 8.606"
Approx. Weight 16.3 lbs

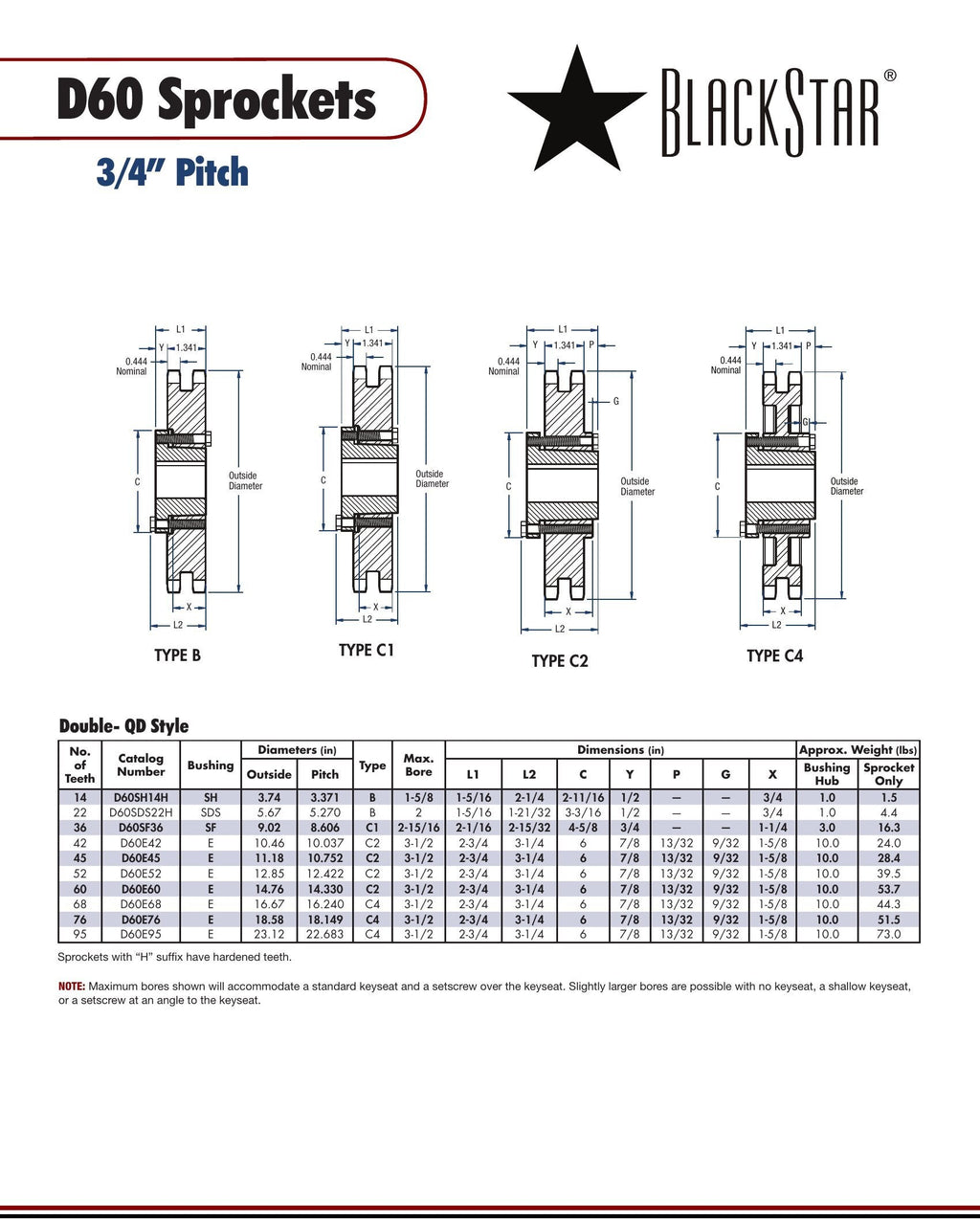

BlackStar D60SF36 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning D60SF36, Martin D60SF36
